Description

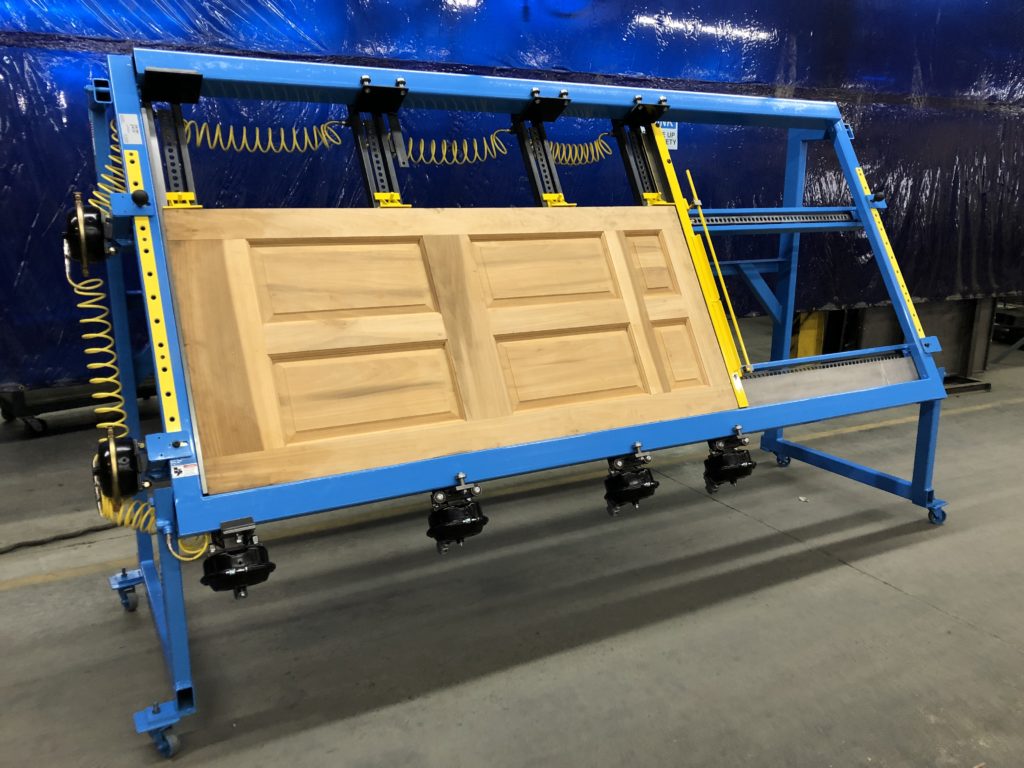

Produces solid wood entry doors, kitchen cabinet doors, window & door frames, face frames, and more.
Features:
•48″ x 120″ Capacity for Solid Wood Entry Doors

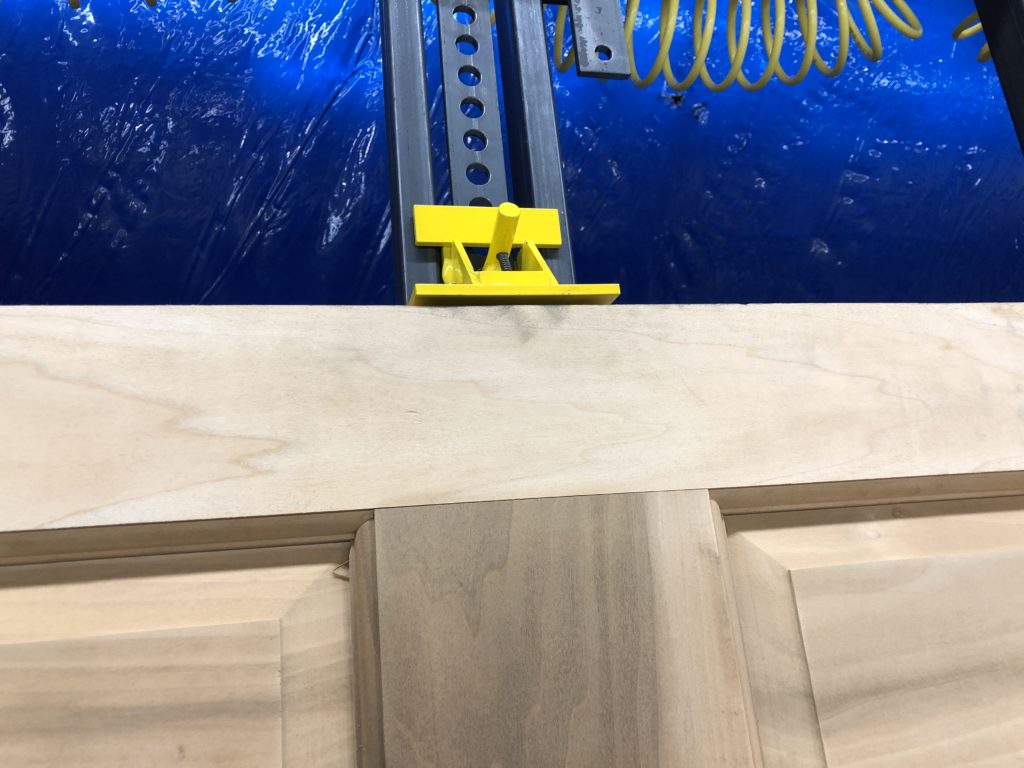

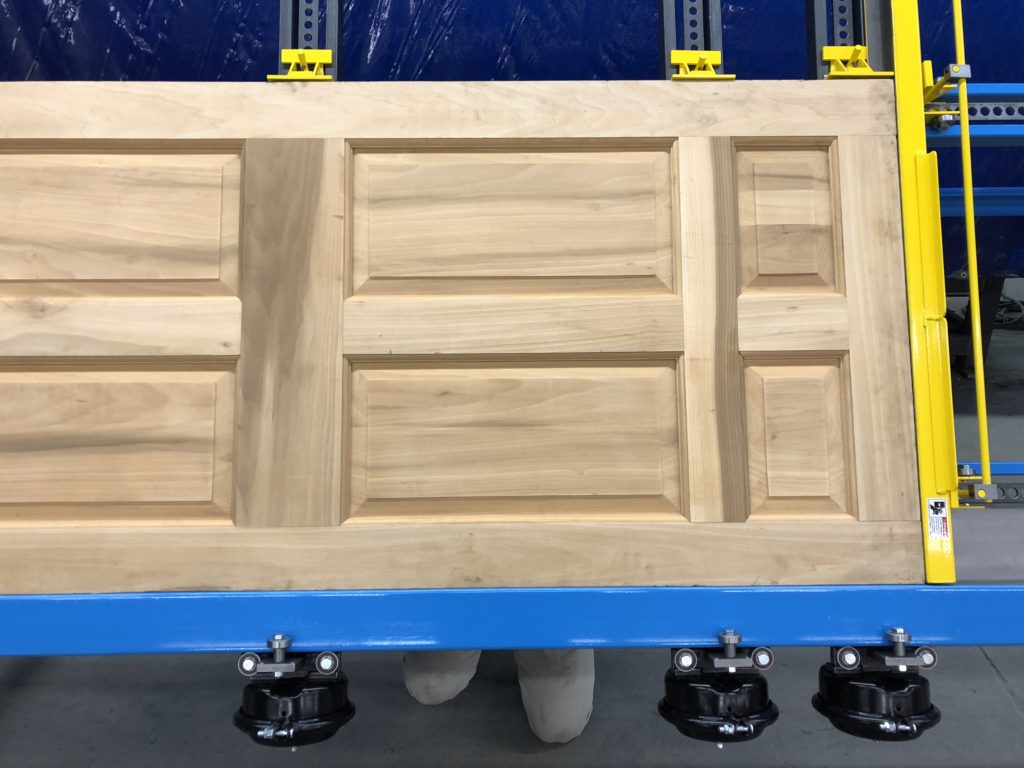

•(4) vertical and (2) horizontal pneumatic clamps with 2500# of clamping pressure per clamp.

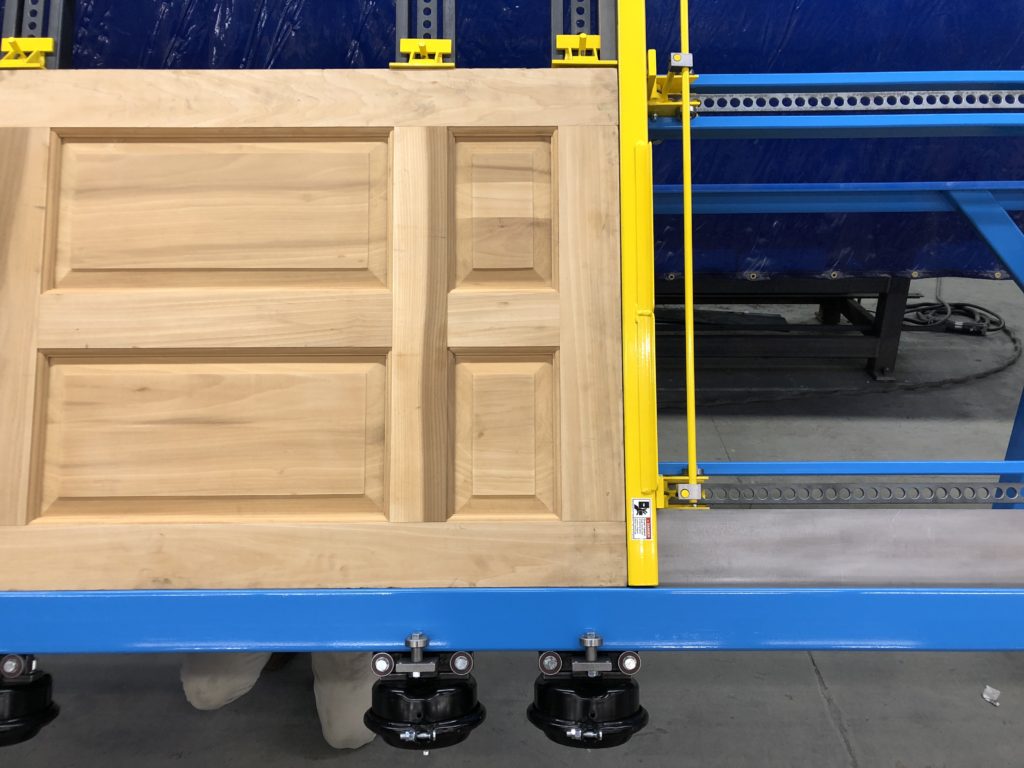

•Removable vertical center rail for multiple cabinet door squaring.
•Attached vertical center rail can clamp (2) 48″ x 56″ cabinet doors side by side.
•Single Lever Valve Operation –
(2) Second Squaring of Stile & Rail and Entry Doors
•Space-saving upright design.
•60 degree vertical working angle.
Minimum Door Sizes are as Follows:
•With Center Bar Out: 8″ x 30″
•With Center Bar In: 8″ x 14″ (Two Separate Gluing Areas)
•Shipped Pre-Assembled for Easy Installation
•Machine Footprint: 145″L x 70″H x 50″W -
