WL 4,6,8 SERIES | Weima | Shredders
-
Power:15-30HP
-
Description

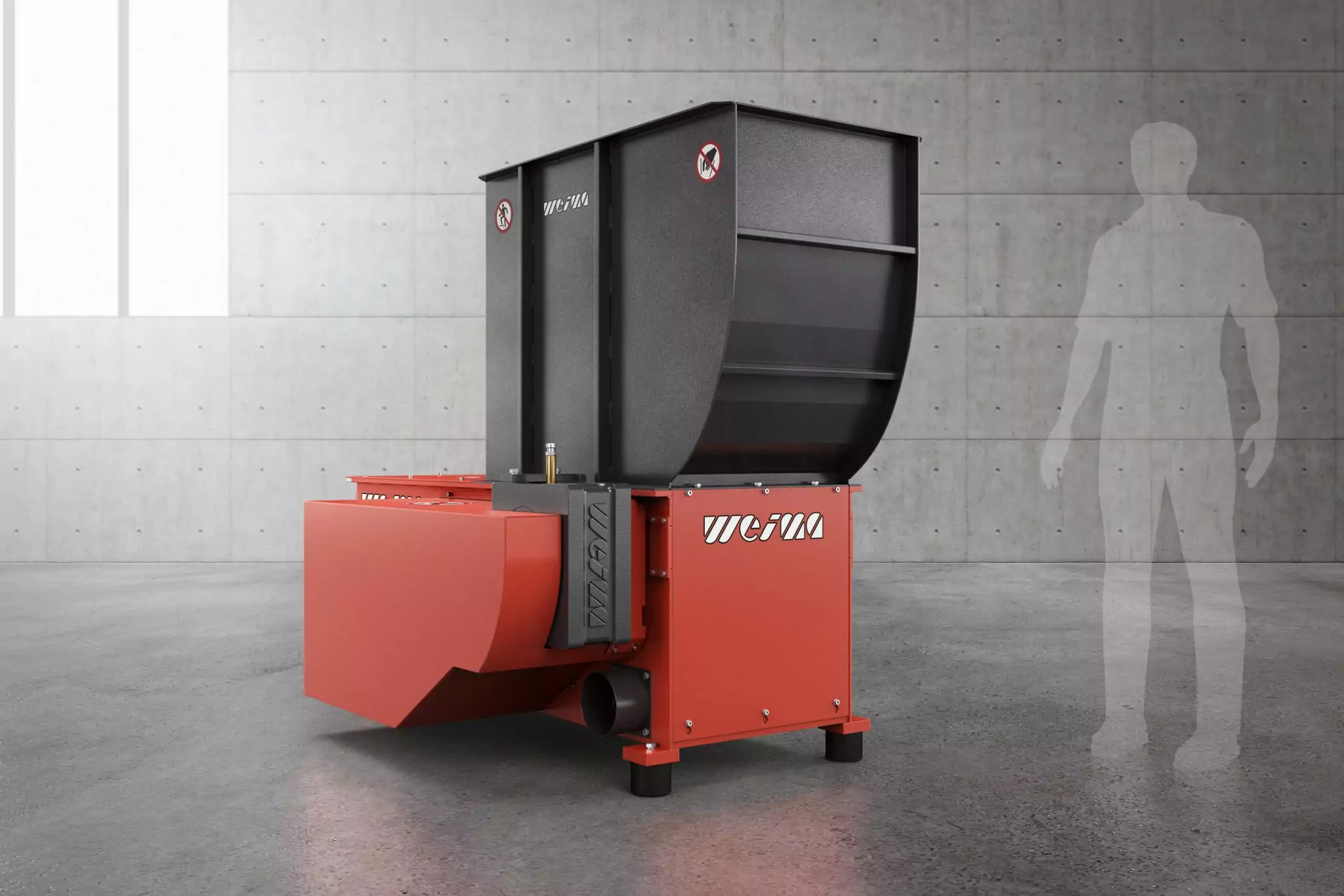

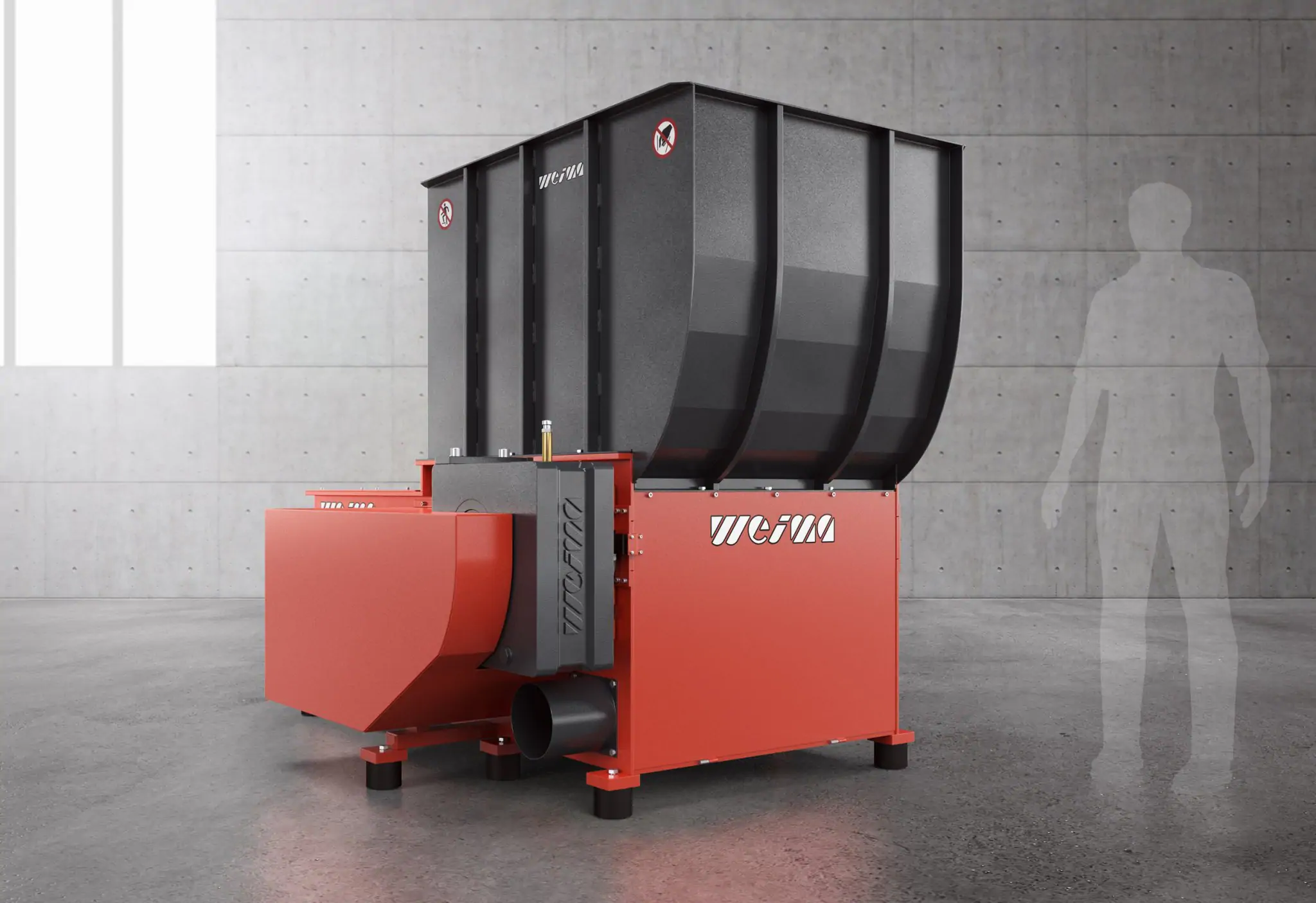

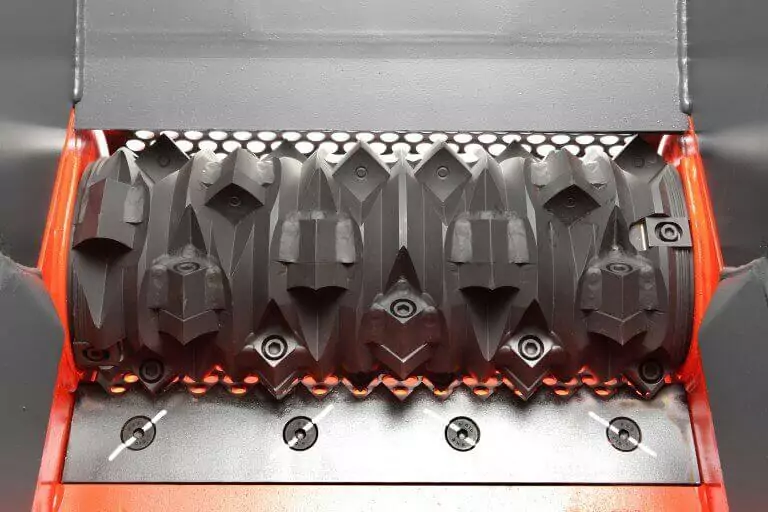

The WL 4, WL 6, WL 6 S, and WL 8 single-shaft shredders have proven themselves to be the classic shredders for wood waste of all kinds, and can be found in thousands of woodworking shops all over the world. The global popularity of this shredder series assures high reliability at a competitive price to performance ratio. These machines set themselves apart from other machines of their size and type due to their robust construction, giving them a longer life cycle. The shredded wood can be discharged into an air conveyor or onto a traditional conveyor. The profiled innovative “V” Rotor is made of solid material and mounted on stable rotor bearings. Special blade holders are welded into milled blade pockets around its circumference. The cutting knives are set into these and screwed on from the back. This ensures quick and easy blade changing.
-
Specs
WL 4 WL 6 WL 8
Rotor Diameter (mm) 260 260 260
Rotor Length (mm) 600 800 1000
Rotor Speed (rpm) 100 100 100
Power (kw) 11-18,5 15-22 22
Rotor Knives 28 42 54
Available knife sizes 40 40 40
Fraction size (mm) 10-40 10-40 10-40 Connection Diameter (mm) 160 200
200
Deliver feed (mm) 600×1050 800×1250 1000×1250 Length (mm) 2045 2045
2045
Width (mm) 1190 1540 1740
Height (mm) 1640 1840 1840
Weight (approx. kg) 1300 1700 2200 -
