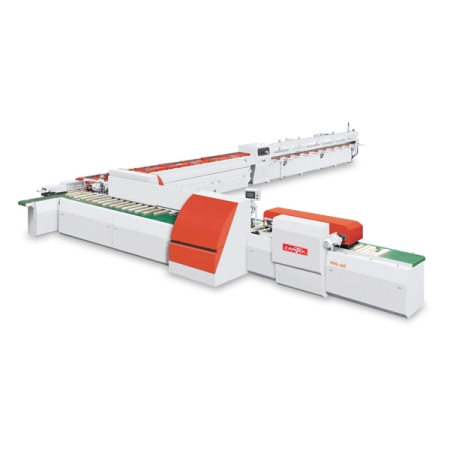

It is time to stop losing untapped revenue by turning your wood waste into valuable material. The Cantek FHL60 Horizontal Automatic Finger Jointing Line is specifically engineered for horizontal finger shaping and jointing tasks. In contrast to the traditional vertical shaping method, the FHL-60 enhances the visual appeal of finger-jointed products. This system is particularly well-suited for efficiently manufacturing high-quality solid wood parquet, achieving an impressive production rate of up to 120 pieces per minute when combined with an automated wood arranging conveyor table.
Key Advantages
The initial F-I31 manual feeding table can be upgraded to the F-I32 automatic wood arranging conveyor table to dramatically increase production

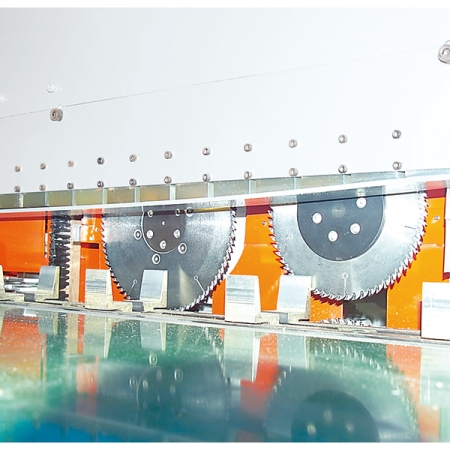

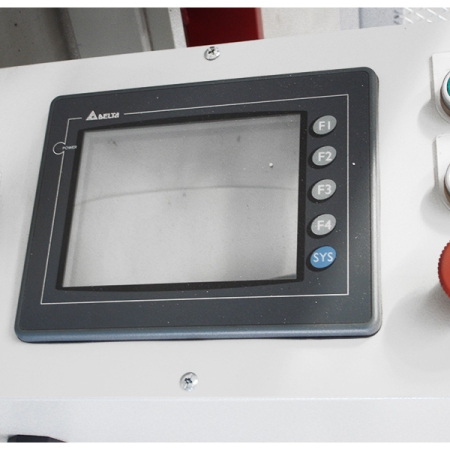

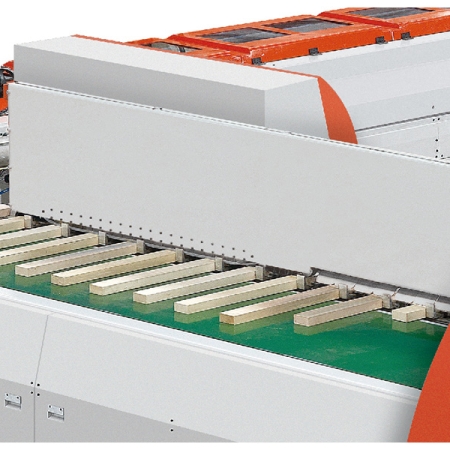

The F-C61 automatic horizontal finger shaper performs automatic scoring, trimming, shaping, and gluing

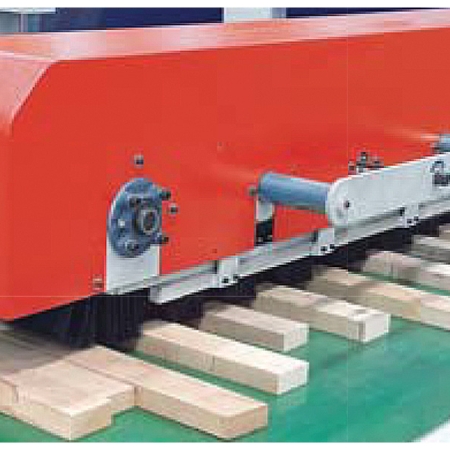

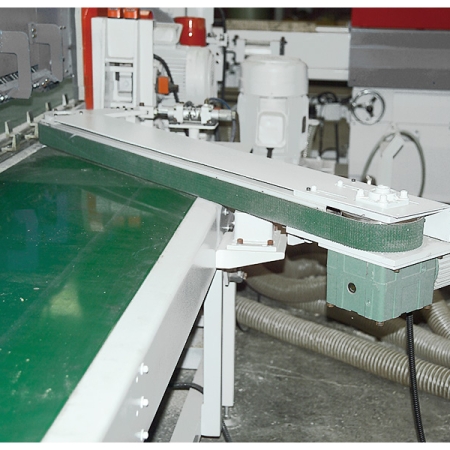

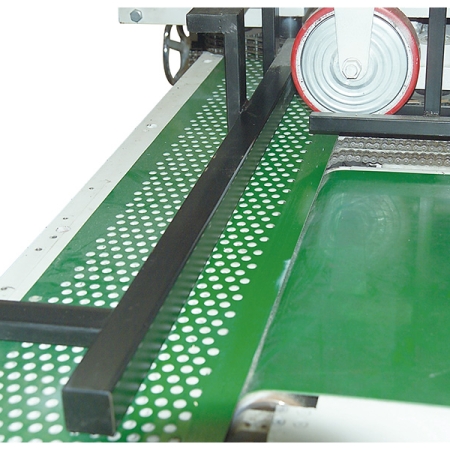

The F-C61 also has a wood side changing device that moves the wood piece to the opposite side using a belt-driven pusher and a powerful suction table to prevent the wood piece from turning over
With the choice of 10 feet or 20 feet in length the F-T67 chain-type pre-press assembly stand ensures accurate vertical and horizontal alignment before the workpiece is cut to length -
Specs
The FHL-60 Automatic Finger Jointer includes:

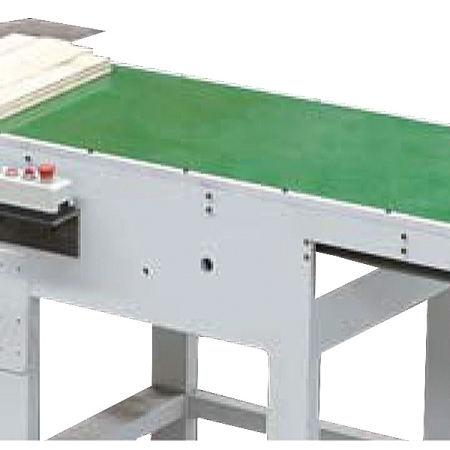

F-I31 Manual Feeding Table (Standard)
DESCRIPTION
SPECIFICATION
Conveyor table width
700 mm (27.6”)
Machine length
2500 mm (98.4“)
Machine width
950 mm (37.4“)
Machine height
910 mm (35.8”)
POWER REQUIRED
Feed drive motor
1 HP
F-C61 Automatic Horizontal Finger Shaper
DESCRIPTION
SPECIFICATION
Range of workpiece length
150~700 mm (5.9~27.6”)
Range of workpiece width
40~160 mm (1.6~6.3“)
Range of workpiece height
16~60 mm (0.63~2.4“)
Feeding speed
60~120 PCS/MIN
Trimming saw speed
2800 RPM / 3400 RPM
Finger cutter speed
5000 RPM
Scoring saw speed
2800 RPM / 3400 RPM
POWER REQUIRED
Feed of chain motor
1 HP
Trim saw motor (and scoring saw)
10 HP x2
Shaper cutter motor
20 HP x2
Scoring saw motor
1 HP x3
Cutter spindle diameter
ø70 mm (ø2.6”)
Dia of cutter (in/out)
ø210 mm (ø8.3)
Dust hood outlet diameter
6” ×2, 4” ×4
Machine dimensions (L x W x H)
6260 x 2550 x 1510 mm (247 x 100 x 60“)
F-T67 Chain Drive Pre-Press Assembly Stand
DESCRIPTION
SPECIFICATION (6m/20ft)
Range of workpiece height
16~60 mm (0.63~2.4“)
Range of workpiece width
40~160 mm (1.6~6.3“)
Feeding speed
460 FPM
Feed drive motor
2 HP x2
For conveyor motor
2 HP
Brush wheel drive motor
1/2 HP
Wheel drive motor
1/2 HP
Overall length
6710 mm (264”)
Overall width
1140 mm (45”)
Overall height
1110 mm (43”)
Packing dimensions (L x W x H)
6620 x 1220 x 1200 mm (261 x 48 x 47“)
F-A63 Auto Assembly Press
DESCRIPTION
SPECIFICATION (6m/20ft)
Available length of product
6200 mm (244”)
Available thickness of product
16~60 mm (0.63~2.4“)
Available width of product
40~160 mm (1.6~6.3“)
Feeding speed
263 FPM
Production capacity length
4~5 PCS
POWER REQUIRED
Feed drive motor
2 HP
Max. assembly pressure
0~150 Kg/cm²
Hydraulic power unit
5 HP
Cut-off saw
5 HP
Dust hood outlet diameter
101.6 mm (4”)
Machine dimensions (L x W x H)
7400 x 1380 x 1400 mm (291 x 55 x 55“)
Noise value
84 db
Packing dimensions (L x W x H)
7500 x 1060 x 1500 mm (296 x 42 x 59“)
