H49 | Pillar | Boring Machines

  • Power:
    230/460V 3PH
Request a Quote

  • Description

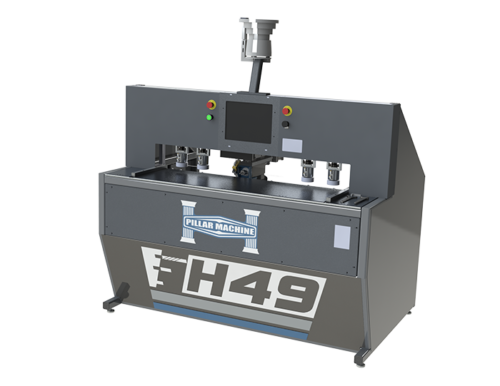

    The H49 is a horizontal point to point bore and dowel insertion machining center. It is designed to CNC position the spindle, bore a hole, then CNC position the inserter, inject glue or water (for pre-glued dowels), and fire the dowel into the hole. A part is placed into the work zone referencing the back and side fences. The green palm button is pressed and the clamps secure the part into place. The machining is now ready to begin in the work zone. There are 2 zones standard in the base model H-49 allowing for pendulum processing. While the one part is being machined, the other zone can be loaded and queued for machining.

  • Specs

    •X Axis CNC control for positioning

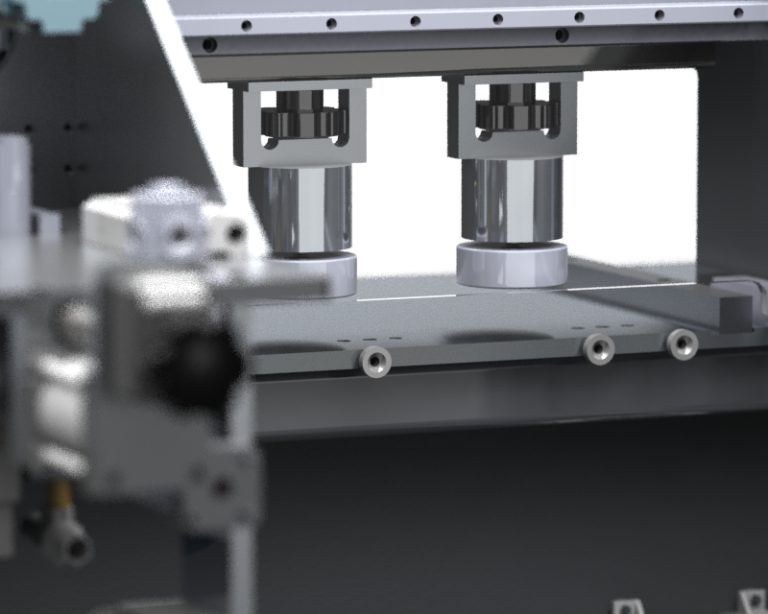

    •4 clamp units

    •Digital mechanical readouts for height and depth

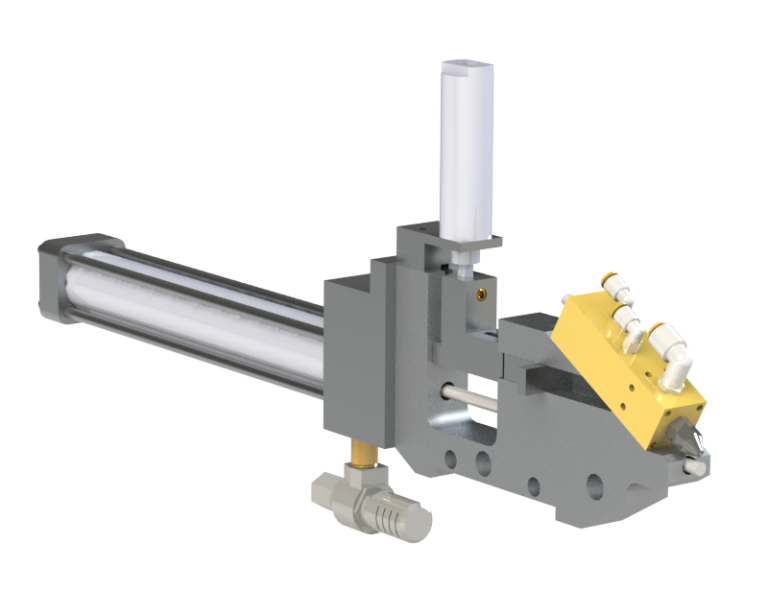

    •Our standard sealed glue injecting system injects glue or water with little or no maintenance

    •Small footprint to conserve floor space

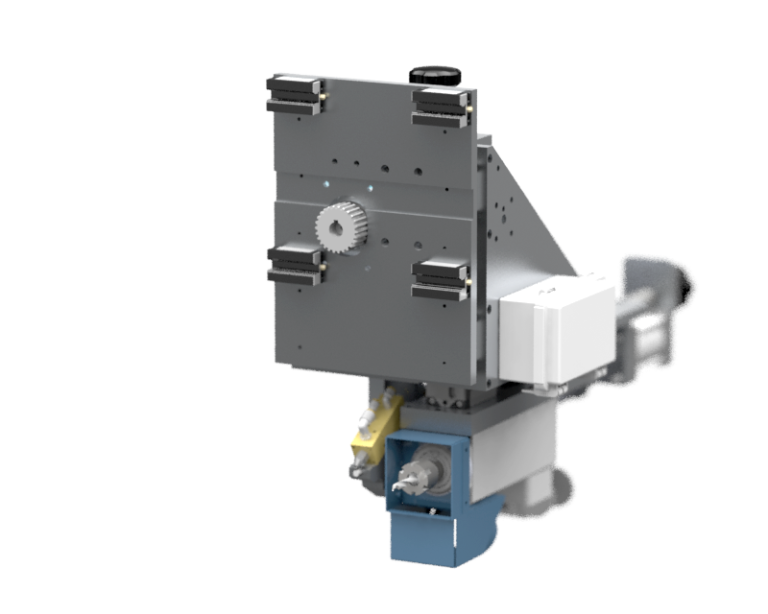

    •1 HP high frequency 18,000 RPM direct drive spindle

    •2 zones

    •Strong 1600 lb. base

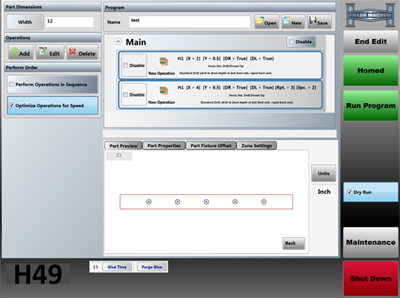

    •10″ industrial color touchscreen PC for programming and running programs

    •49″ work field

    •1/2″ thick machined aluminum work surface

  • Download
