HPLD | Pillar | Boring Machines

Request a Quote

  • Description

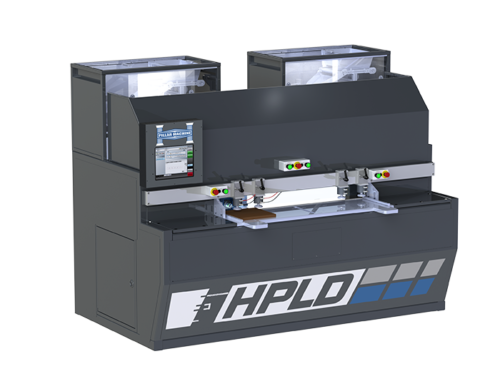

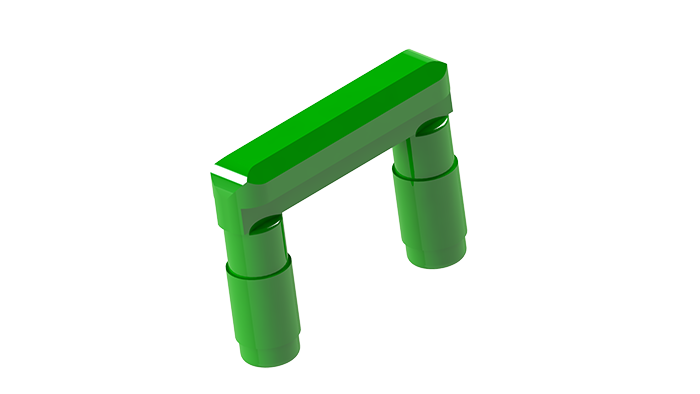

    The HPLD is a horizontal point to point Lockdowel inserting machine and one of the finest line boring machines for cabinets available. This machine will insert H-clips, Channel Locks and Spring Pins with ease.Using CNC control, this machine positions the drilling spindle to bore holes and insert the Lockdowel hardware.

    Using the HPLD will allow you to produce three times as much product without needing more employees. There’s no need for glue or clamping with the HPLD and Lockdowel system. Lockdowels help reduce assembly time by 80% or more. Putting together cases, cabinets and furniture should take minutes, not hours. Cabinets built with EClips are SEFA 8 tested and passed. They are in compliance with AWI standards.

    You also have the ability to link the HPLD through Cabinet Vision’s screen-to-machine software.

  • Specs

    •X Axis CNC Control For Positioning

    •15″ Industrial Color Touchscreen

    •2 Zones

    •4 Clamp Units

    •3 HP High Frequency 18,000 RPM Direct Drive Routing Spindle

    •Digital Mechanical Readouts For Height and Depth

    •49″ Work Zone

    •Heavy Duty 1400 lb. Frame

    •1″ Thick Machined Aluminum Work Surface •Covered with a 3M Maintenance Free Non-slip Surface

    •Lockdowel Eclips dowel bowls, feeders and inserter
