IM101 | Ideal Manufacturing | Shapers

  • Power:
    8HP 230/460V 3PH
Request a Quote

  • Description

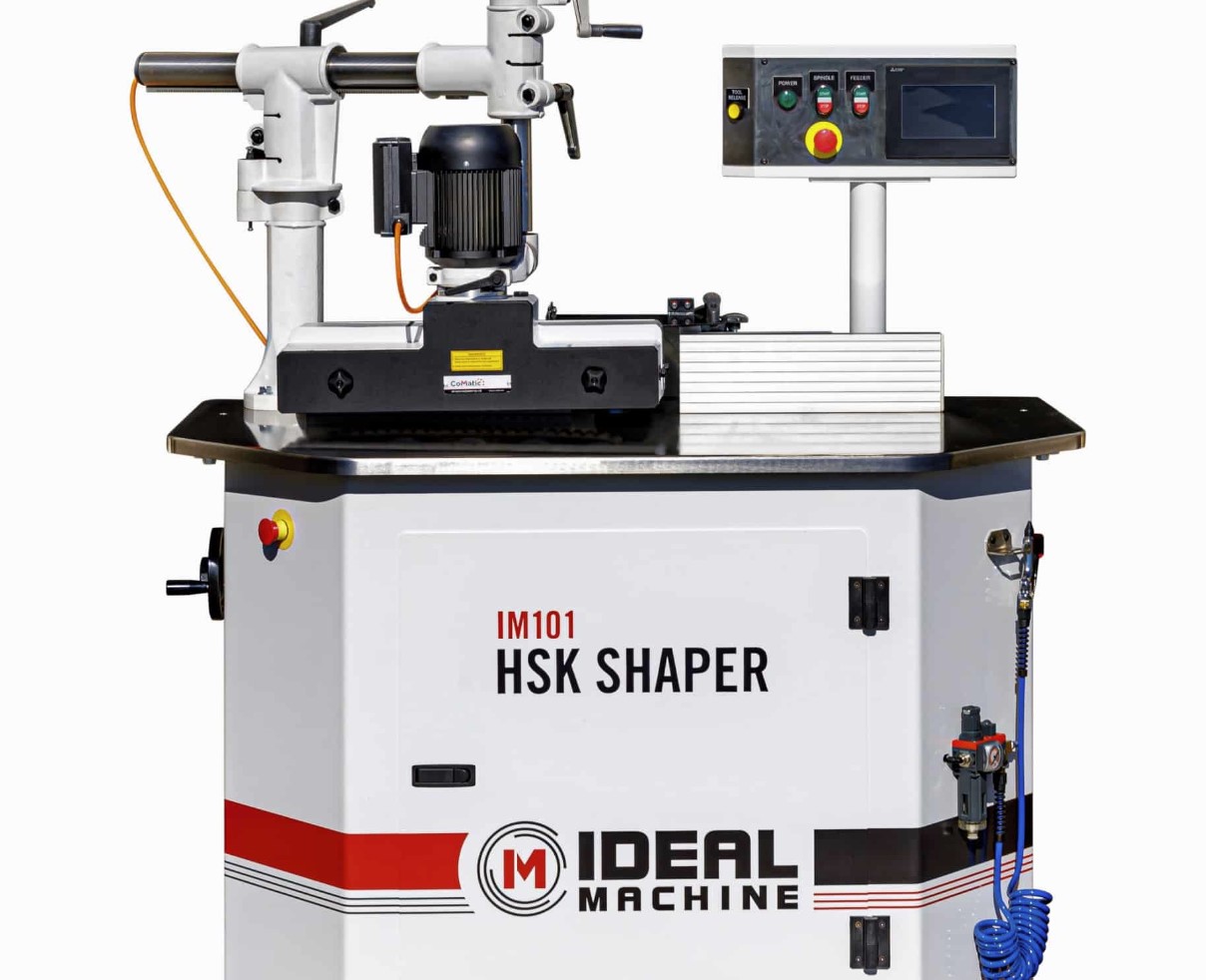

    The Ideal Machine IM-101 HSK Wood Shaper comes standard with an HSK63 interchangeable cutter head. This industrial spindle shaper offers quick change functionality to make swapping out HSK cutter heads simple and efficient. The integrated power material feeder and touch screen makes operation simple and intuitive for operators.


    The IM-101 wood shapers are built with heavy cast iron fences that adjust independently for accurate material processing. The body and footprint of this industrial shaper is very similar to that of our RM-100 stile and rail machine, the Ideal MiniMoulder. All of Ideal’s woodworking machinery is designed to help your shop or business stay on the cutting edge of innovation and production efficiency.

  • Specs

    •HSK interchangeable spindle, standard.

    •8 HP at 7,500 RPM

    •230 volt, 3 phase, 60 hz standard (480 volts available)

    •Variable spindle RPM

    •Bore diameter determined by tool holders

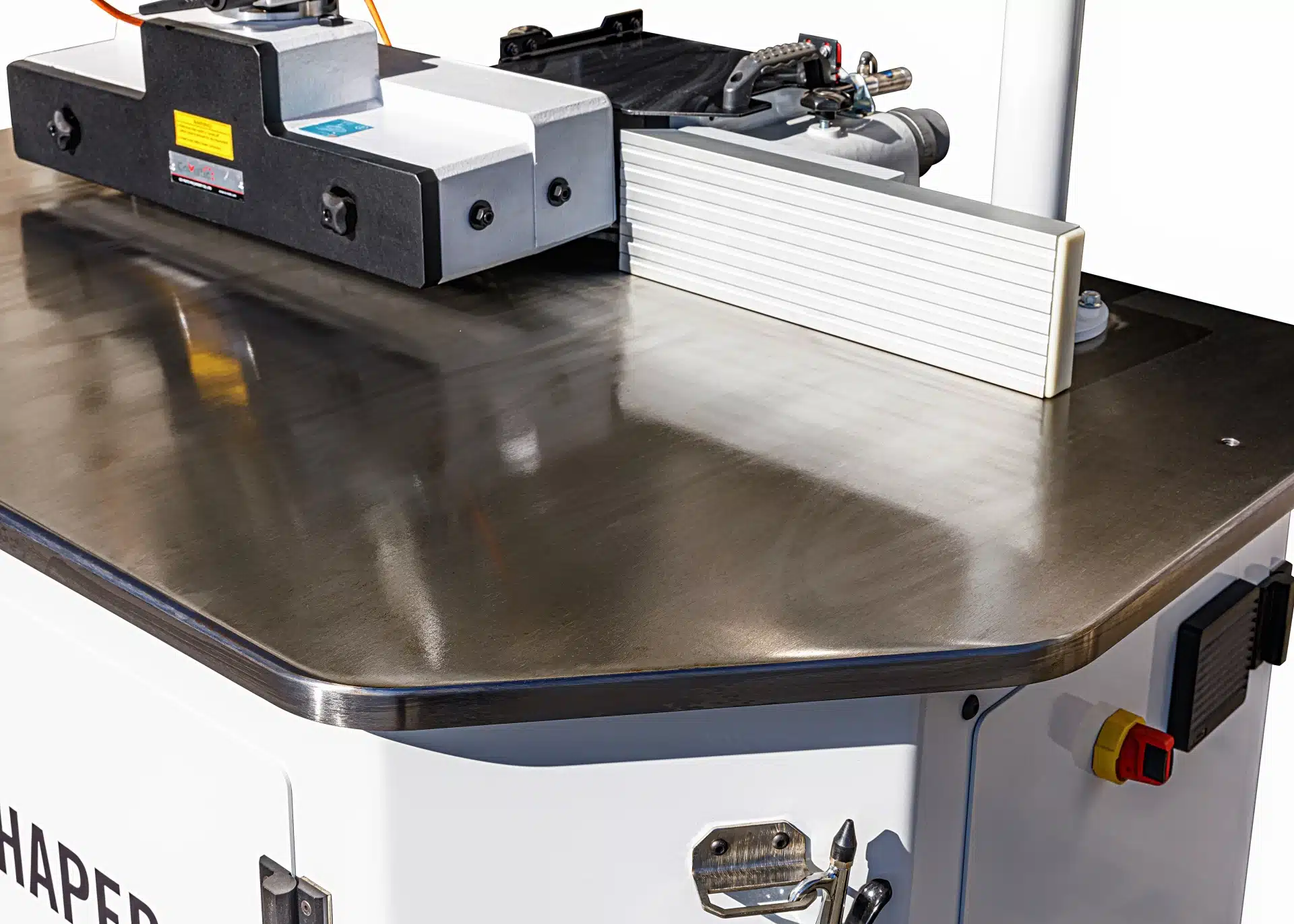

    •Adjustable cast iron fence

    •Part length max: none

    •Part length min: 3-1/2” (depending on part width)

    •Tool diameter: 5″ (up to 7″ available upon request)

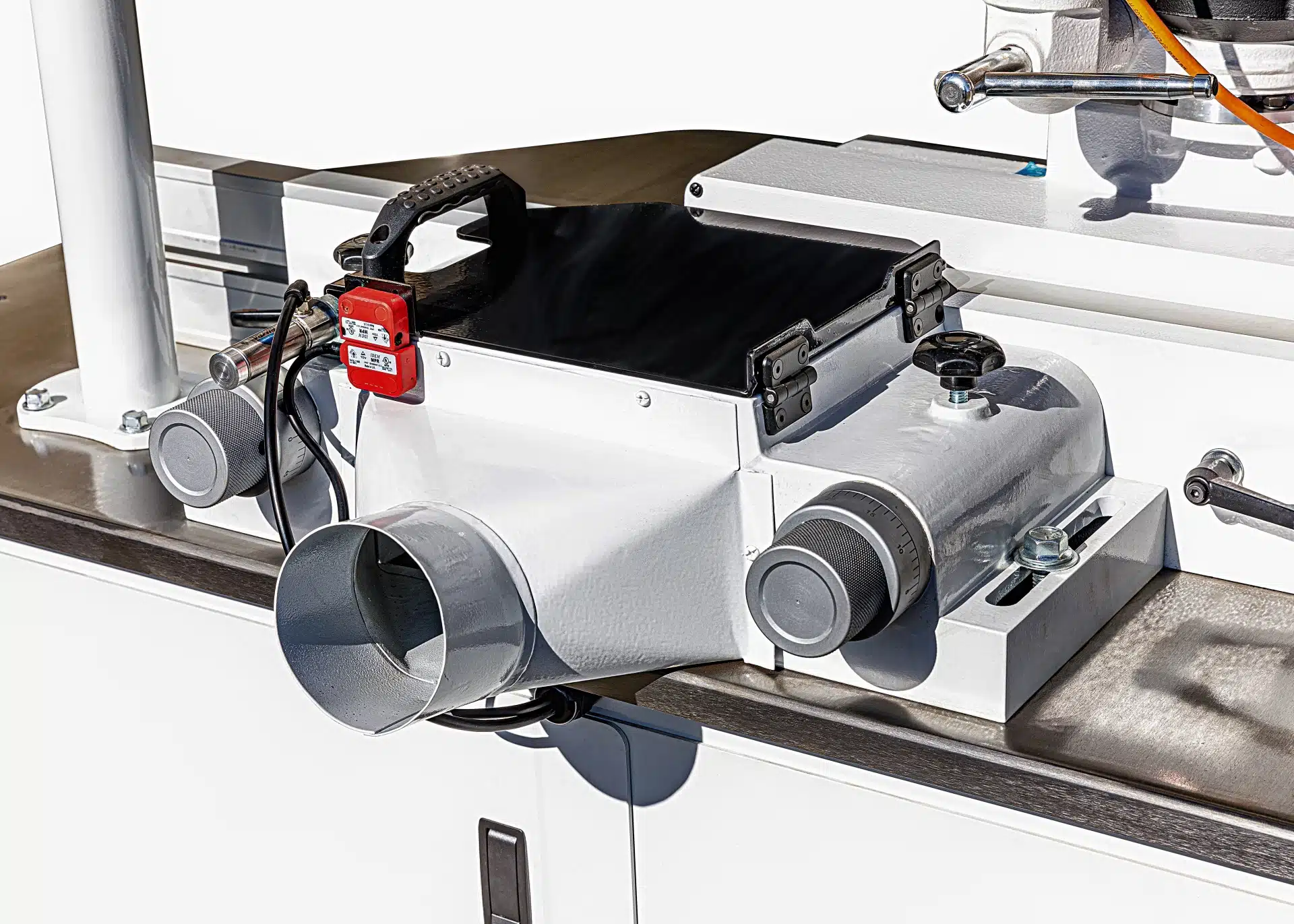

    •Dust collection: outlets at 4”

    •Compressed air required: 80 PSI

  • Download

    HSK-Wood-Shaper
