900VS | C.R. Onsrud | Routers

  • Power:
    230V 3PH 10HP
  • Description

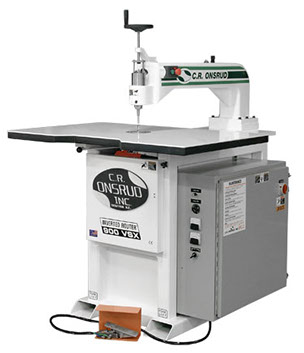

    The models 900 VS and 900 VSX are Onsrud’s finest Inverted Routers™, ruggedly built for continuous production duty under severe conditions for up to three shifts per day. Both are capable of plunge routing and profiling both inside and outside cuts in hardwoods, softwoods, man-made woods, non-ferrous metals, aluminum, and a variety of plastics and composites. Only the very best components are incorporated into these tough, dependable machines, assuring you many years of precision performance. With the correct tooling and a properly made template these models are capable of cutting up to 1″ hardwoods and 2″ softwoods in one pass. If desired, the turret style depth stop may be used for cutting material in multiple passes to reduce feeding effort required. The 900s feature large pulleys for better power transmission, an extra heavy-duty cutting spindle precision-machined from special alloy steel for accuracy, rigidity, and long life,

    aircraft grade precision spindle bearings, and a replaceable ¾” chuck assembly.

  • Specs

    Throat Depth|36in (914 mm)

    Table Size|47in x 31in (1200 mm x 800 mm)*

    Maximum Workpiece/Template Height|4in (100mm)

    Dust Collection| 4″ (100 mm) outlet, 500 CFM (2000 m3/h),

    Compressed Air| 80 psi (6 bar), 4 CFM (150 liters/minute)

    Motor|10 horsepower, 3-phase

    Spindle Speed| 9,500-20,000 RPM (based on pulley)/1,000-21,000 RPM (Variable Speed Control)

    Shipping Weight| 2000 lbs (907.2 kg)
