Description

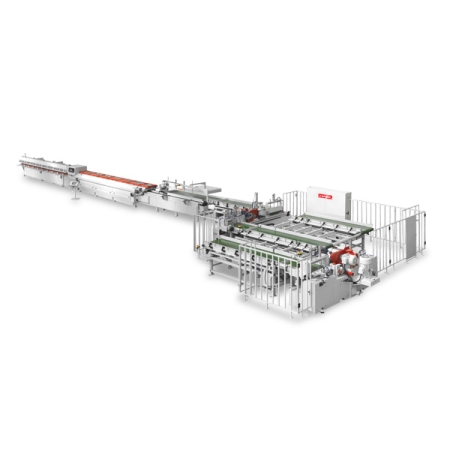

It is time to stop losing untapped revenue by turning your wood waste into valuable material. The Cantek FL03-3 Long Board Fully Automatic Finger Jointer represents a state-of-the-art finger jointing production line, meticulously engineered to transform short and long wood scraps into valuable resources with exceptional cost-efficiency. This comprehensive jointing system elevates productivity to high speeds and offers user-friendly operation, allowing customers to optimize output and generate profits. With its groundbreaking technology, this solution delivers remarkable value in terms of both its performance and affordability, ensuring it remains a consistent game-changer within the wood industry.
Key Advantages

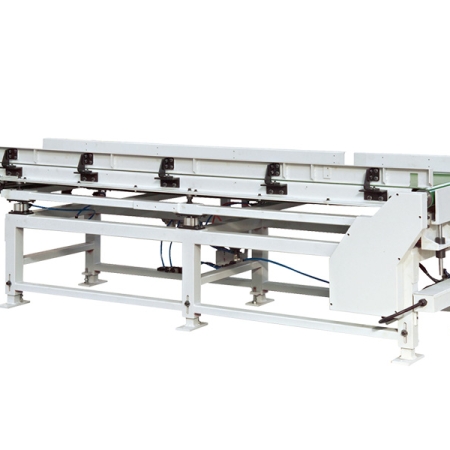

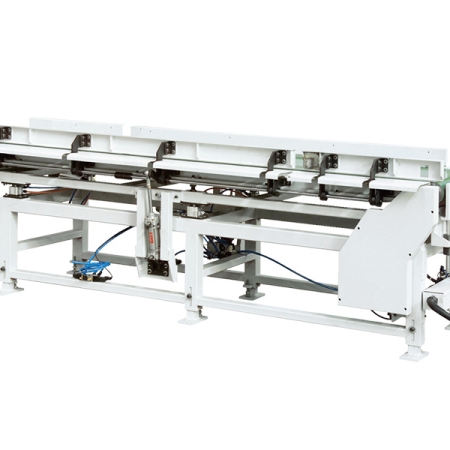

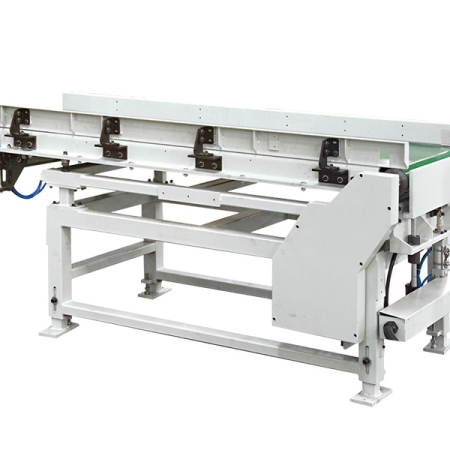

The initial F-I03 and F-I15 conveyor tables raise using air cylinders to allow workpieces to move from the infeed through the finger shapers

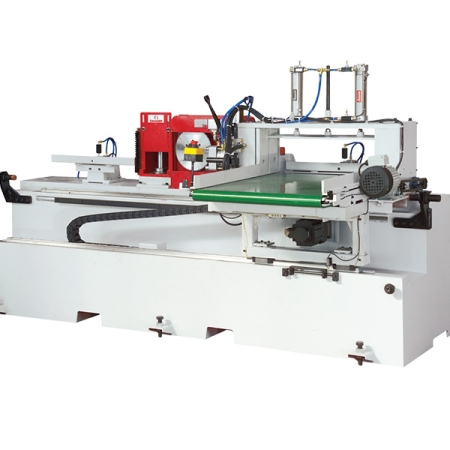

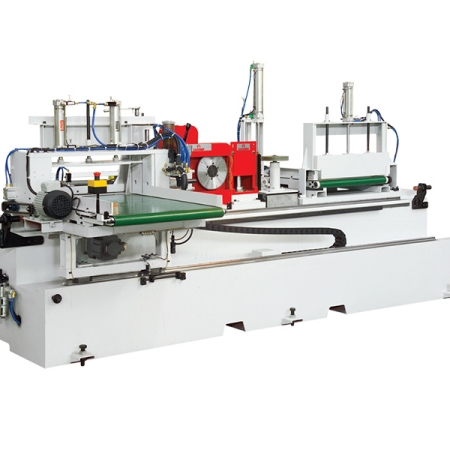

The F-C05SE and F-C06SE finger shapers perform automatic scoring, trimming, shaping, and gluing

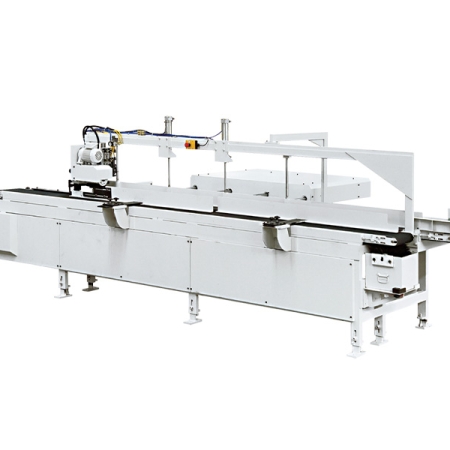

Workpieces are fed from the F-I07 conveyor table to the F-D01-3 automatic feeding table, turning over each workpiece one-by-one using a steel brush roller

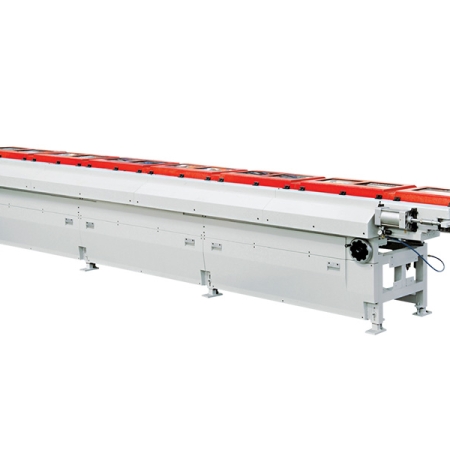

With the choice of 10 feet or 20 feet in length the F-T03/F-T05 chain-type pre-press ensures accurate vertical and horizontal alignment before the workpiece is cut to length

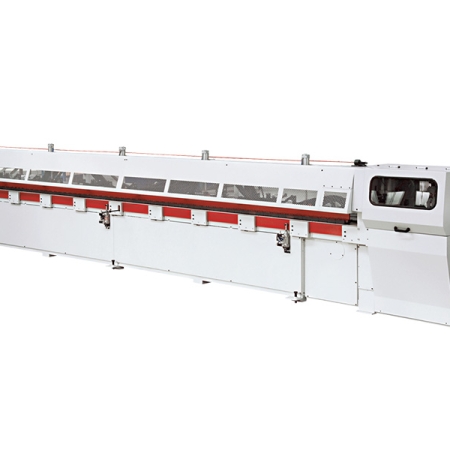

Synchronized jointing and cutting is performed in a 2-step process within the F-A03 assembly press by employing two hydraulic cylinders at the front and rear to provide an extremely consistent joint -
Specs
The FL03-3 Fully Automatic Finger Jointer includes:
F-I03 Initial Up and Down Conveyor Table
DESCRIPTION
SPECIFICATION
Length
3000 mm (118”)
Width
650 mm (25.6”)
POWER REQUIRED
Conveyor table motor
1 HP
F-C05SE Automatic Finger Shaper
DESCRIPTION
SPECIFICATION
Table size
650 mm (25.6”)
Length
150~1000 mm (5.9~39.4”)
Width
20~60 mm (0.78~2.4”)
(Placing horizontal: 160 mm (6.3”))
Thickness
20~160 mm (0.78~6.3”)
POWER REQUIRED
Main spindle
30 HP
Scoring saw motor (Bottom)
15 HP
Trim saw motor
15 HP
Feeding out table
1 HP
Working table movement
1 KW
1: Finger cutters – 10 pieces (160x70x4mm x 2T)
2: Comes with saw blades
F-I15 Initial Up and Down Conveyor Table
DESCRIPTION
SPECIFICATION
Length
3000 mm (118”)
Width
650 mm (25.6”)
POWER REQUIRED
Conveyor table motor
1 HP
F-C06SE Automatic Finger Shaper (Injection Type Glue System)
DESCRIPTION
SPECIFICATION
Table size
650 mm (25.6”)
Length
150~1000 mm (5.9~39.4”)
Width
20~60 mm (0.78~2.4”)
(Placing horizontal: 160 mm (6.3”))
Thickness
20~160 mm (0.78~6.3”)
POWER REQUIRED
Main spindle
30 HP
Scoring saw motor (Bottom)
15 HP
Trim saw motor
15 HP
Feeding out table
1 HP
Working table movement
1 KW
1: PVAc glue applicator: Injection type with glue tank
2: Comes with saw blades
3: Finger cutters – 10 pieces (160x70x4mm x 2T)
F-I03N-3 Initial Up and Down Conveyor Table
DESCRIPTION
SPECIFICATION
Length
3000 mm (118”)
Width
650 mm (25.6”)
POWER REQUIRED
Conveyor table motor
1 HP
F-I07 Initial Conveyor Table
DESCRIPTION
SPECIFICATION
Length
1000 mm (39.4”)
Width
650 mm (25.6”)
POWER REQUIRED
Conveyor table motor
1 HP
F-D01-3 Automatic Feeding Table
DESCRIPTION
SPECIFICATION
Length
3000 mm (118”)
Width
650 mm (25.6”)
POWER REQUIRED
Infeed motor
2 HP
Brush wheel drive motor
1/4 HP

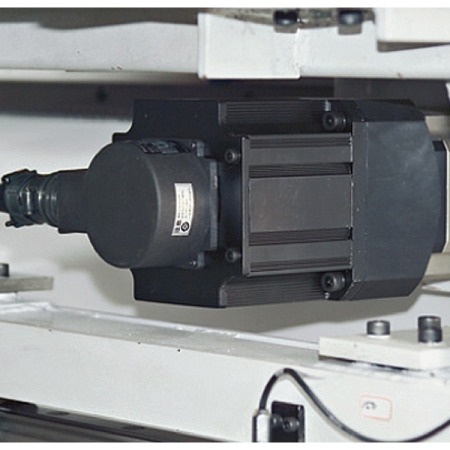

Servo motor for feed drive
750 KW
F-T03-7 Chain Type Pre-Press Assembly Stand
DESCRIPTION
SPECIFICATION
Length
7000 mm (276”)
Width
160 mm (6.3”)
Thickness
60 mm (2.4”)
POWER REQUIRED
Right feed chain drive motor
2 HP
Left feed chain drive motor
2 HP
F-A03-5 Automatic Finger Assembler
DESCRIPTION
SPECIFICATION
Length
< 5000 mm (197”)
Width
30~160 mm (1.2~6.3”)
Thickness
60 mm (2.4”)
POWER REQUIRED
Infeed wheels
3 HP
Sizing saw
5 HP
Oil pump
5 HP
1: Includes saw blades
Working speed for the shapers: Max. 1~3 cycles/min
Working speed for the press: Max. 1~3 pieces/min
