Description
A versatile crosscutting cut-off saw delivering exceptional performance at extremely high speeds.

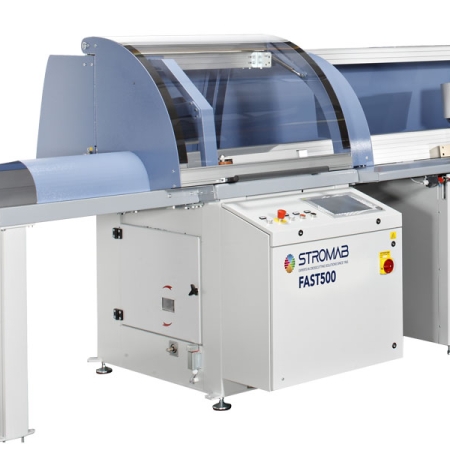

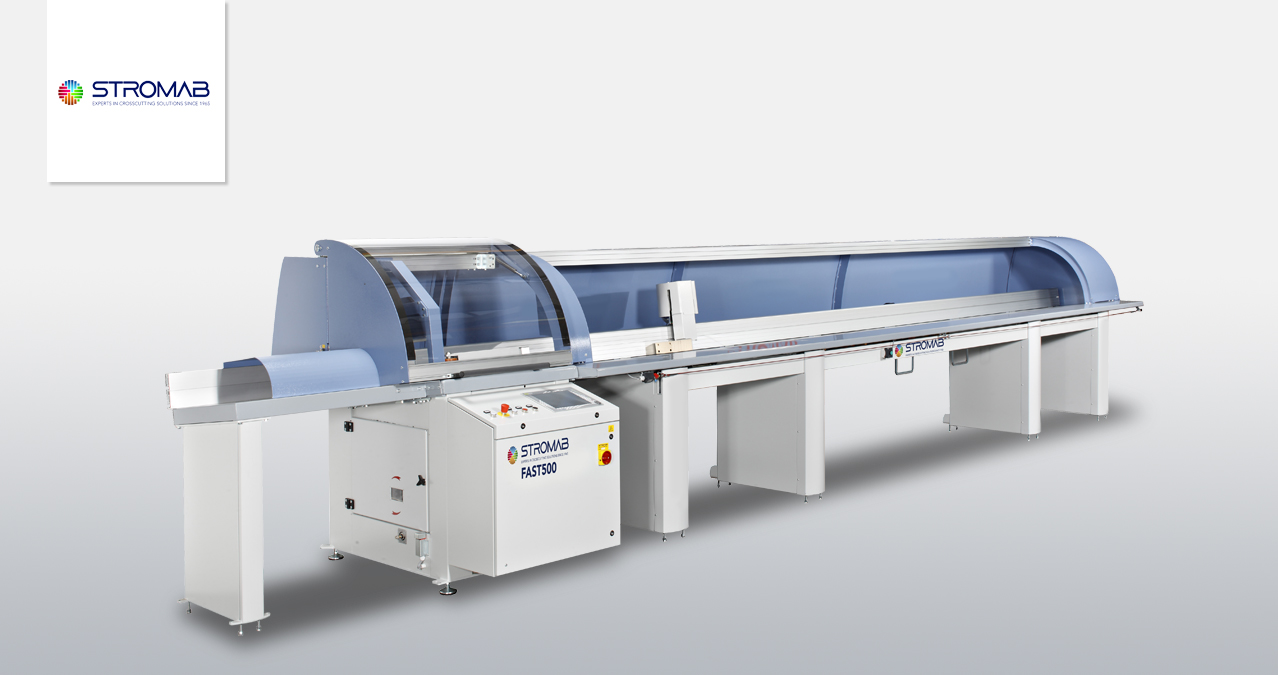

The Stromab FAST500 MATRIX is a straight cut-off saw with an innovative electronic push feed system and controlled axis. It has been constructed to be highly efficient and increase production with up to 40% more production over the standard model. This state-of-the-art machine blends the reliability of a pneumatic cut-off saw with an ascending saw blade with an electronic push-feed system pusher system which is driven by a precision and high-speed rack and pinion guide system. The FAST500 MATRIX comes in three versions: BASE, OPTI, AND OPTI PLUS, with each offering integrated solutions to cater to your diverse needs. Whether you are simply cutting to length or looking to defecting and optimizing, the FAST500 Matrix from Stromab has the crosscutting saw solution for you.

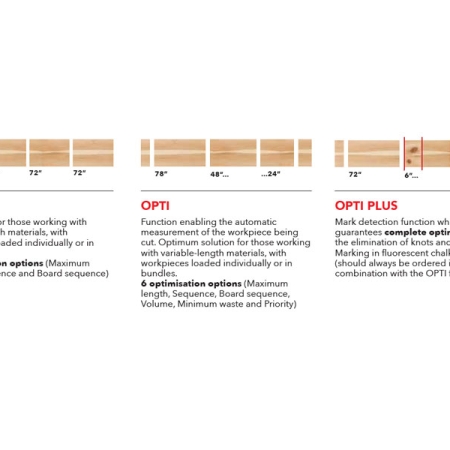

Available Versions:
- “BASE”: The saws standard “base” solution boasts an array of three uniform-length optimization options: Maximum length, Sequence, and Board sequence
- “OPTI”: For automatic board length detection and full optimization – upgrading from 3 optimizing options to 6: (Longest length, Sequence, Board sequence, Volume, Minimum waste, and Priority length)

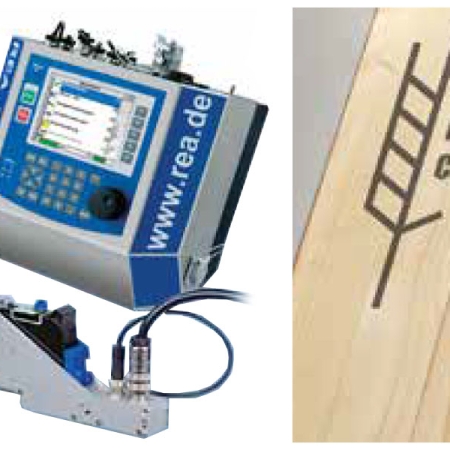

- “OPTI PLUS”: For advanced mark detection ensures complete optimization while eliminating knots and defects. The system marks the material with fluorescent chalk, enhancing precision and quality.
-
Specs
CUTTING UNIT TECHNICAL FEATURES
Infeed Length
2000~6000 mm (6.5 ft ~ 20 ft)
Outfeed Length
1000 mm (3 ft)
Min. Workpiece Thickness
10 mm (0.39”)
Min. Workpiece Thickness (with Auto Loader)
20 mm (0.79”)
Working Table Tilted
8°
Motor Power
10 HP (7.5 Kw – 400V)
TCT Blade Dia.
500 mm (19.7”) F=30 Z=144 S=4.6
Blade Speed
2575 RPM
Cutting Cycle Speed
2 seconds
Positioning Precision
+/- 0.4 mm
Dust Extraction
2 x 100 mm (3.9”)
Motor Voltage
480/3/60 A=14.3

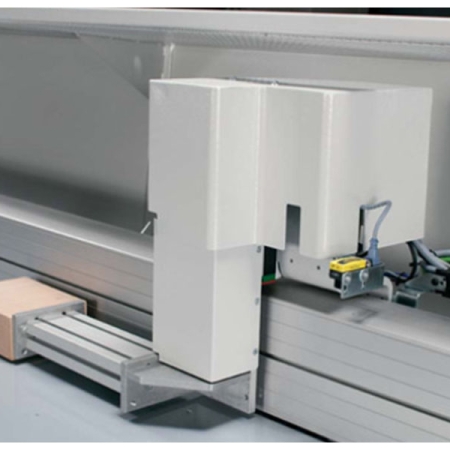

Push Feed System Technical Features
Positioning Precision
+/- 0.4 mm
Infeed Motor for Packet Weight
80 Kg (177 LBS)
Max. Push Feed System Speed
296 FPM
*1: Cutting cycle: pre-set by the operator or by remote PC
*2: Infeed material: single piece or stacked material with fixed length
*3: Applications: production of pallets, packaging, furniture, and garden furniture
*4: Positioning reading with motor brushless resolver
