Description

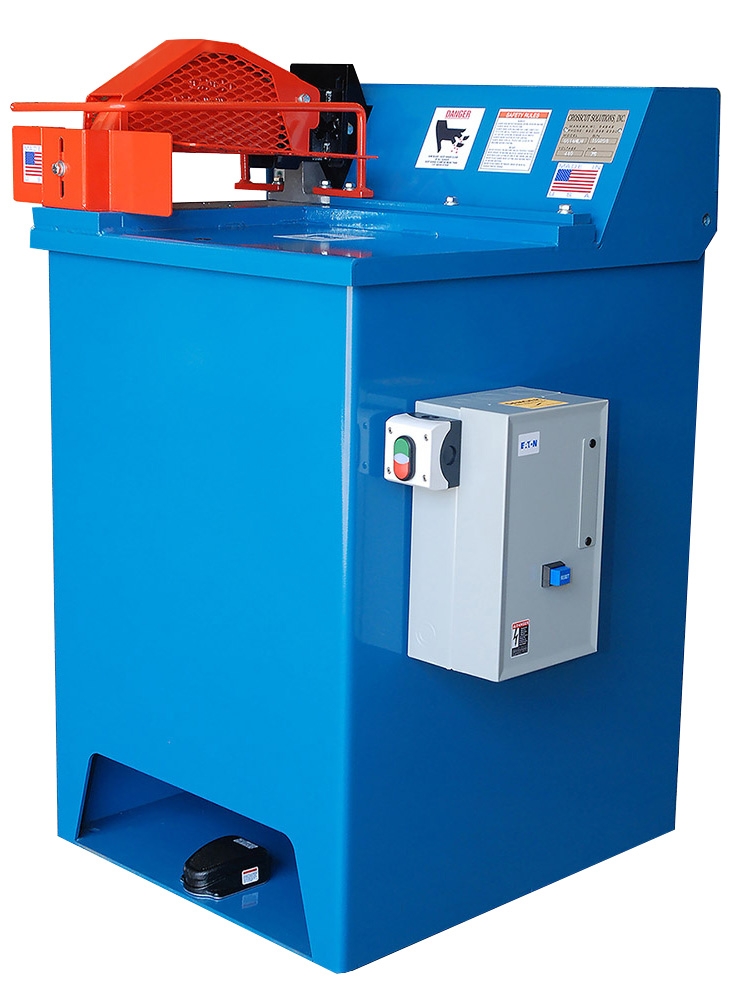

The industry’s most durable and smoothest operating cut-off saws •CS14M has a 2″ x 8″ cutting capacity •CS18M has the standard 2″ x 12″ cutting capacity
•CS18M is also available with an optional 4″ x 8″ cutting capacity plus the ability to cut material as thin as .5″ with a slight saw guard adjustment.
•No compressed air required which reduces your operating and installation costs.
•Mechanical eccentric crankshaft design allows the saw to operate smoothly even at our standard fast cycle times. Standard= 133cycles per minute; 94 & 66 cycles per minute are optional -
Specs
CS14M
Blade requirements|14” dia., 1” bore
Max cutting capacity| 2” x 8”
Dust collection req.| 4” dia., 480 cfm @ 5,500 fpm
Saw depth x dimension| 24”
SC18M
Blade requirements| 18” dia., 1” bore
Max cutting capacity| 2” x 12”, 4” x 8” optional
Dust collection req.| 4” dia., 480 cfm @ 5,500 fpm
Saw depth x dimension| 27-1/2” -
