Description

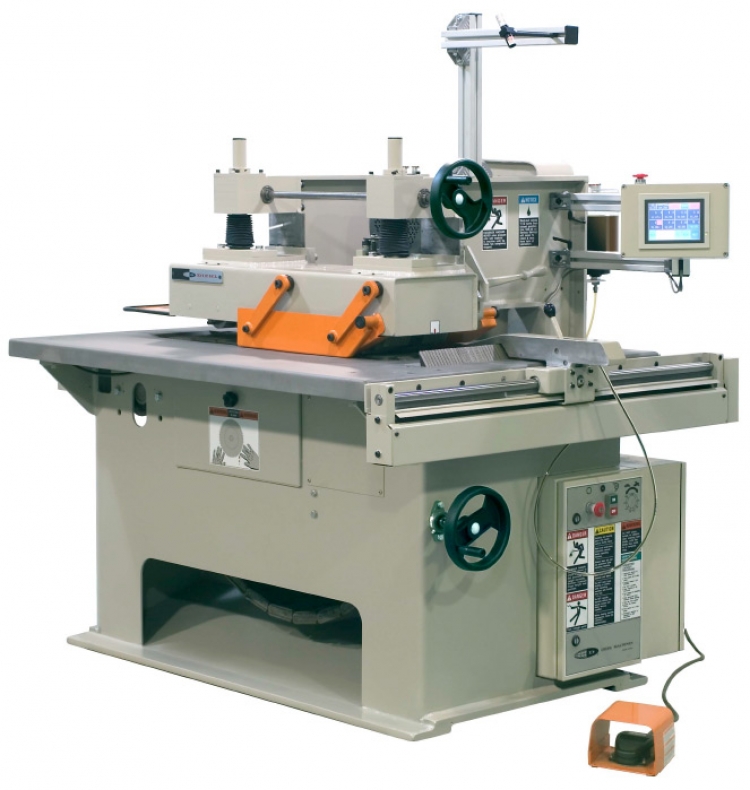

Diehl’s Mid-Sized Rip Saw, an economically priced machine with the speed and performance of large saws, with guaranteed glue line accuracy. All this coupled with Diehl’s legendary quality and durability. Over 85 years of rip saw manufacturing experience has been put to use developing the SL series of straight line rip saws. The SL-35 features a 15 HP arbor motor, vertical arbor adjustment, and a 2 HP variable speed drive that gives the capacity for higher feed speeds.
Diehl’s proven chain/race, spindle/arbor and pressure roll system make up the foundation for this saw that produces the industry’s most accurate glue line cut, guaranteed. The Diehl SL-35 is the rip saw that you can depend on for continuous quality performance.
-
Specs
Arbor Motor: 15 HP (11.2 Kw), 20 HP (15 Kw) optional Feed Motor: 2 HP (1.5 Kw) Feed Speed: variable, 50 – 140 FPM (12 – 42 mpm) Minimum Thickness: 1/8” (3 mm) Maximum Thickness w/14” (355 mm) blade: 1.5” (38 mm) Maximum Thickness w/16” (406 mm) blade: 2.55” (64 mm) Minimum Length: 12” (305 mm) Saw Blade Arbor Bore: 2” (50.8 mm) Throat Capacity: 19” (482 mm) Arbor RPM Belt Driven: 3450 Accurate Glue Line Cut (either straight or hollow): up to 5’ (1.5 m) Voltages Available: 208/240/480/575, 3 phase, 60 cycle 380, 3 phase, 50 cycle w/110 control circuit Spindle Brake: Automatic Vacuum: 1 – 6” (152 mm) and 1 – 3” (76 mm) opening 1250 CFM (35 cmm) required Upper Anti-Kickback Fingers w/Cam Controlled Height Lower Anti-Kickback Fingers in Table Dimensions: 65” (1651 mm) L x 53” (1346 mm) W x 56” (1423 mm) H Weight: net 2,750 lbs. (1250 kg), crated 2,960 lbs. (1345 kg), crated for export shipment 3,275 lbs. (1485 kg) Worktable Height: nominal 34” (864 mm) -
