RM-100 | Ideal Manufacturing | Shapers

  • Power:
    7.5HP 230/460V 3PH
Request a Quote

  • Description

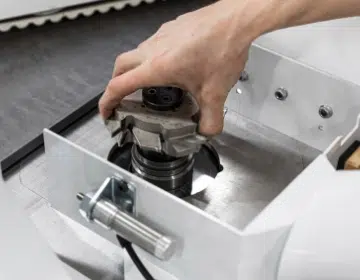

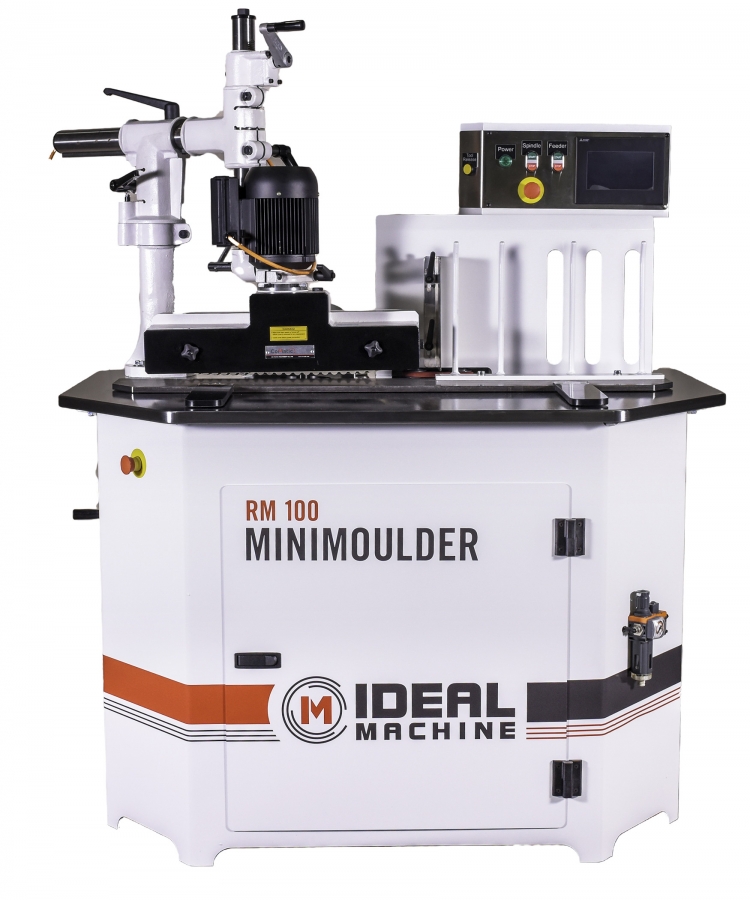

    An Efficient Stile & Rail Shaping Machine The Ideal RM-100 Minimoulder is an effective solution to your stile and rail shaping needs. It features an HSK spindle along with digital readouts for quick and easy tool changes. It also has an 8 hp direct drive variable speed spindle. The hopper feed allows for one person operation.

  • Specs

    •HSK interchangeable spindle, standard.

    •8 HP at 7,500 RPM

    •230 volt, 3 phase, 60 hz standard

    •Variable speed RPM

    •Bore diameter determined by tool holders

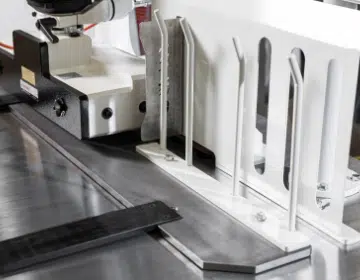

    •Hopper feeding, typically face down

    •Digitally positioned sizing fence

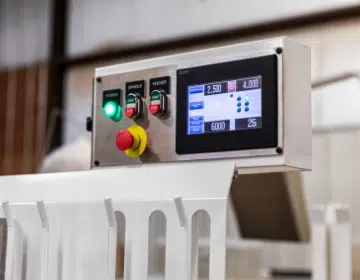

    •Up to 20 preset “recipes“ for pre-programmed set-ups

    •Part length max: none

    •Part length min: 3-1/2” (depending on part width)

    •Part width max: 8-1/2”

    •Part width min: 1-1/2”

    •Dust collection: 2 outlets at 4”

    •Climb or conventional cutting

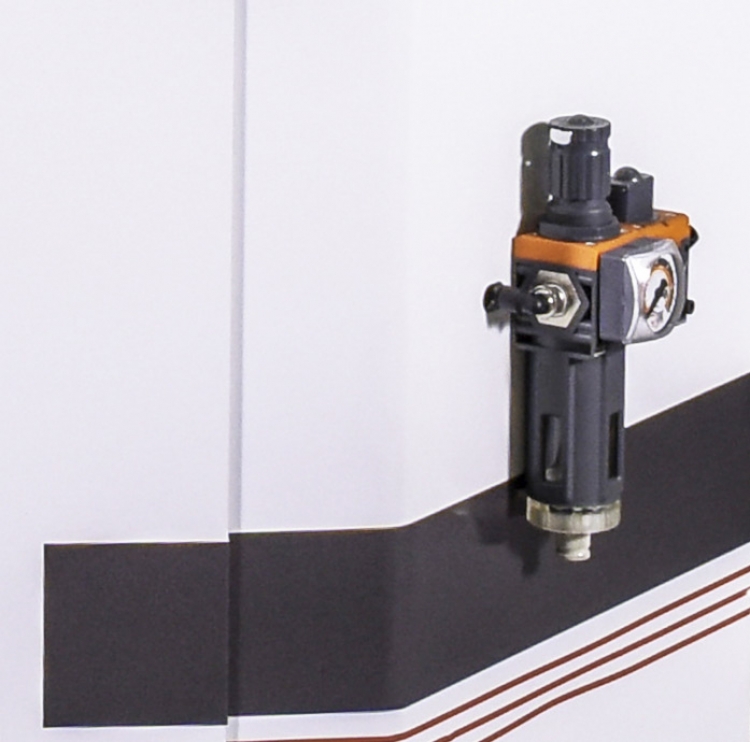

    •Compressed air required: 80 PSI

  • Download

    RM-100-Mini-Moulder
