Description

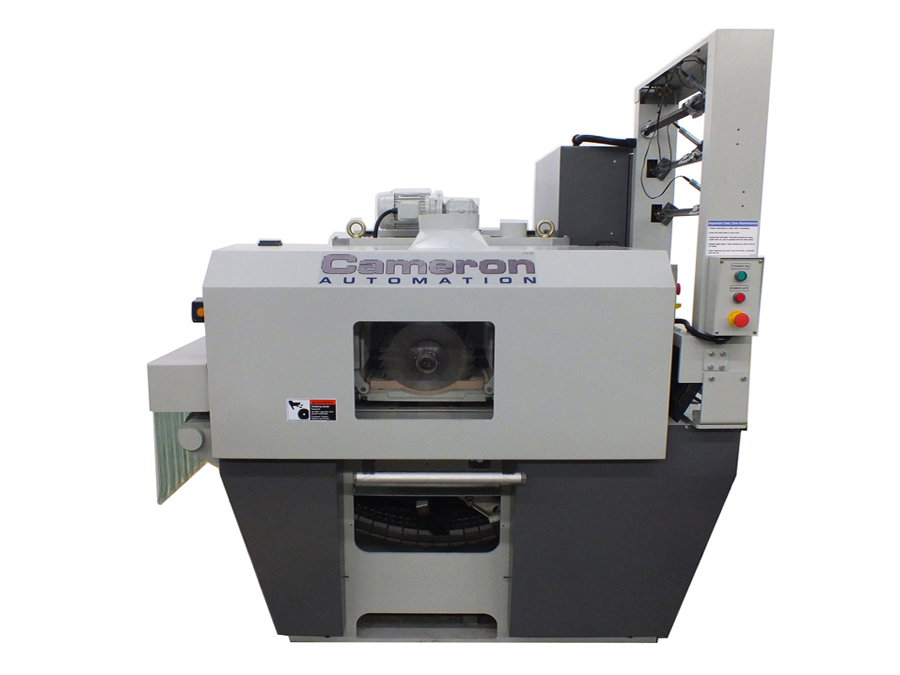

As Movable Blade Rip Saws have become the industry standard, Cameron Automation has continued to push the envelope with (3) Rip Saw Models that it partners with its Industry leading Cameron Infeeds: With a Moving Blade Rip Saw, the potential cut patterns are exponentially increased from a fixed arbor or single blade saw. From the skinniest of boards where you can only cut 1 door stile or rail, to the widest boards where you can cut multiple parts, the number of patterns is endless. Because of the number of solutions the moving blades can create, there is no down time to set up the arbor. This makes the whole process of changing from job to job seamless and efficient. The servo driven blades are extremely accurate and fast, and coupled with the Cameron software, change sizes very quickly.
Cameron Saw Models:
#413A – 12″ Wide (2) Moving Blade, Multiple Fixed Blade Saw
#413B – 18″ Wide (3) Moving Blade, Multiple Fixed Blade HD Rip Saw
#413C – 24″ Wide (4) Moving Blade, Multiple Fixed Blade HD Rip Saw -
Specs
Cameron #413A- Rip Saw
12″ Wide Solid Arbor
(2) Servo Controlled Movable Blades
Multiple Fixed Blades
Pocket Sizes between Saw Blades
Between (2) Fixed Blades: 1″
Between Fixed Blade and 1st Movable Blade: 1″
Between (2) Movable Blades: 1.875″
Feed Speed
Minimum: 26 ft/min (8 m/min)
Maximum: 130 ft/min (40 m/min)
Electric Motors:
Arbor Motor: 50 Hp
Feed Motor: 3 Hp
Three (3) sets of anti-kickback fingers
(4) individual Pneumatic pressure rolls
Steel dip chain construction with urethane inserts
Powered out-feed roller
Digital controlled lubricator for feed chain.
Amp meter for monitoring arbor motor running amperage
Easily accessed v-belt driving saw arbor for reduced vibration and higher tolerances
Easy access to spindle and blades for maintenance and tooling changes
Cameron #413B- Rip Saw
18″ Wide Solid Arbor
(3) Servo Controlled Movable Blades
Multiple Fixed Blades
Pocket Sizes between Saw Blades
Between (2) Fixed Blades: 1″
Between Fixed Blade and 1st Movable Blade: 1″
Between (2) Movable Blades: 1.875″
Feed Speed
Minimum: 26 ft/min (8 m/min)
Maximum: 180 ft/min (55 m/min)
Electric Motors:
Arbor Motor: 60 Hp
Feed Motor: 5 Hp
Three (3) sets of anti-kickback fingers
(4) individual Pneumatic pressure rolls
Steel Double V dip chain construction with urethane inserts
Powered out-feed roller
Automatic lubricator for feed chain.
Amp meter for monitoring arbor motor running amperage
Easily accessed v-belt driving saw arbor for reduced vibration and higher tolerances
Easy access to spindle and blades for maintenance and tooling changes
Cameron #413C- Rip Saw
24″ Wide Solid Arbor
(4) Servo Controlled Movable Blades
Multiple Fixed Blades
Pocket Sizes between Saw Blades
Between (2) Fixed Blades: 1″
Between Fixed Blade and 1st Movable Blade: 1″
Between (2) Movable Blades: 1.875″
Feed Speed
Minimum: 26 ft/min (8 m/min)
Maximum: 200 ft/min (60 m/min)
Electric Motors:
Arbor Motor: 60 – 75 Hp
Feed Motor: 5 Hp
Three (3) sets of anti-kickback fingers
(4) individual Pneumatic pressure rolls
Steel Double V dip chain construction with urethane inserts
Powered out-feed roller
Automatic lubricator for feed chain.
Amp meter for monitoring arbor motor running amperage
Easily accessed v-belt driving saw arbor for reduced vibration and higher tolerances
Easy access to spindle and blades for maintenance and tooling changes -
