230 SERIES | Larick | Sanders
-
Power:2-1HP Motors
-
Description

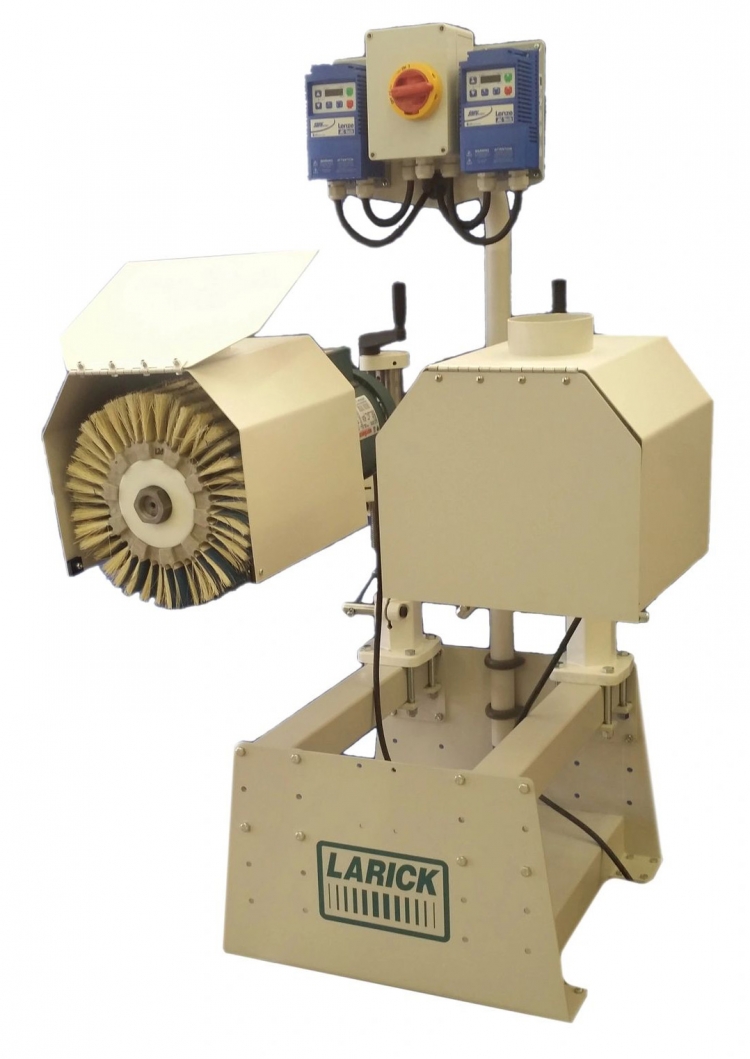

The LARICK 230 Series Profile Sander is a two spindle machine designed for use with flexible brush type sanding wheels. The spindles adjust individually, with vertical, horizontal, tilt and rotation. It can be placed at the outfeed end of a moulder, over a table, or used to sand free-hand. The spindle motors are controlled by inverters giving individual variable speed and sanding direction. The spindles on the Larick Model 230 adjust individually to sand the top, bottom, front, or back of parts. In addition to the built in adjustment of the stands, the stands may slide forward/back on the base in addition to mounting the base higher or lower. Locking casters allow it to be rolled into postion and locked in place. Inverters control the spindles’ speed and rotational direction individually.
-
Specs
Motors: (2) 1 HP 6 pole 3ph
Voltage
•Model 232: 208-240V 1 or 3ph 50-60hz
•Model 234: 400-480V 3ph 50-60hz
Variable Speed: AC Inverter, 100-1200rpm Arbor: 1.25” Dia., up to 10” Long
Vertical Travel: 18”
Footprint: 37.5” wide, 32” deep
Dust Collection: (2) 3” round, 400cfm total -
