PS515 | Cantek | Shapers

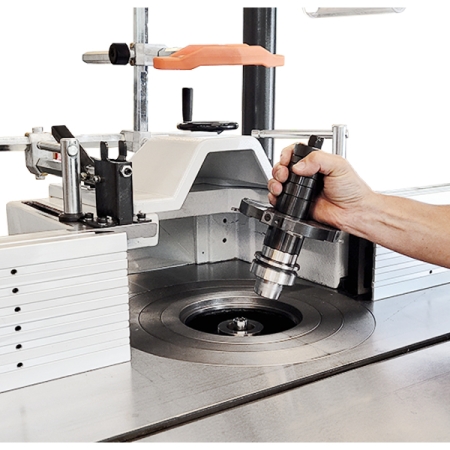

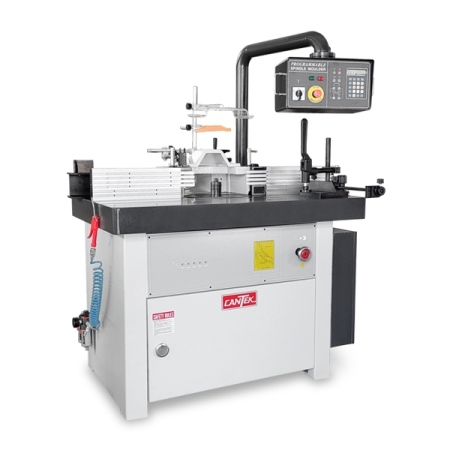

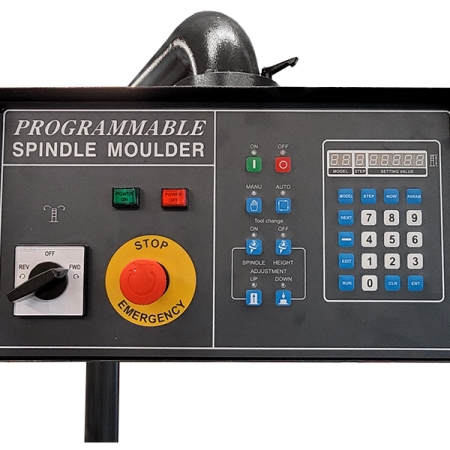

Rapid Setting with Precise Results. The Cantek PS515 programmable shaper is designed for those looking to change profiles and setups frequently throughout the day. It is equipped with a quick change HSK spindle which allows for rapid removal and replacement of the cutting tool. The programmable control allows for rapid setting of the spindle height as the operator can simply jog to the desired height or set and recall 99 programs with 9 individual settings in each program. In addition, it comes with a quick setting fence which uses mechanical digital readouts for rapid fence position setting.
Key Advantages
Heavy duty construction with large cast iron table which is ground and polished

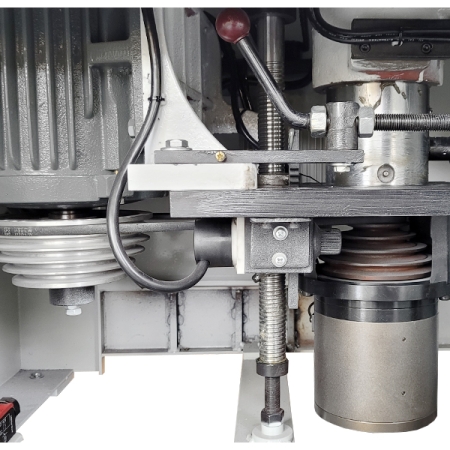

Spindle speeds of 3000/4000/6000/8000/10000 RPM which are changed through a multi-step pulley

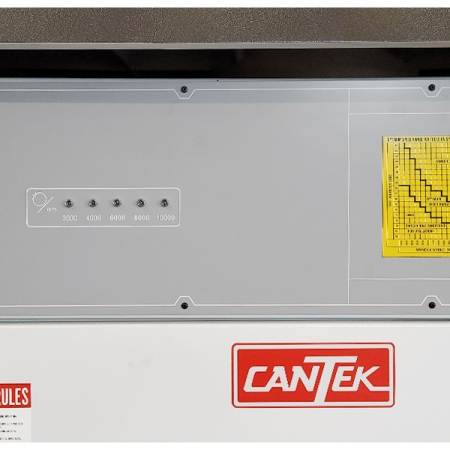

Spindle speed is indicated by LED for safe operation
Electronic spindle brake for safer operation and quick spindle changeovers
Forward / reverse spindle direction

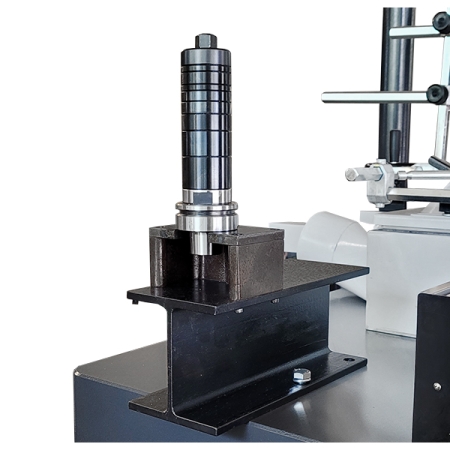

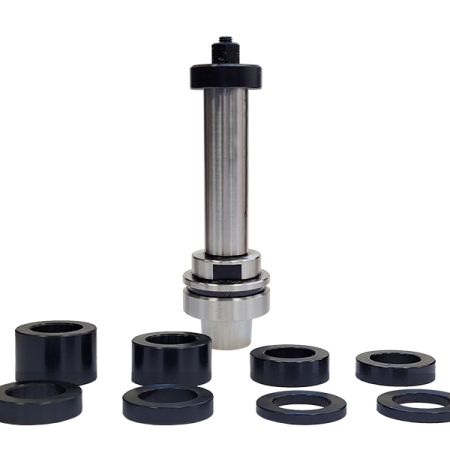

Comes with (1) 1 ¼” spindle assembly (additional spindles with various spindle diameters are available upon request)

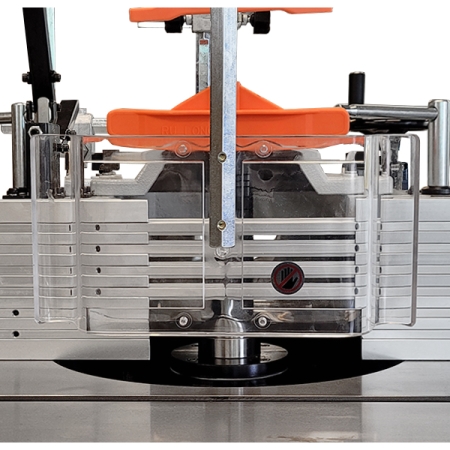

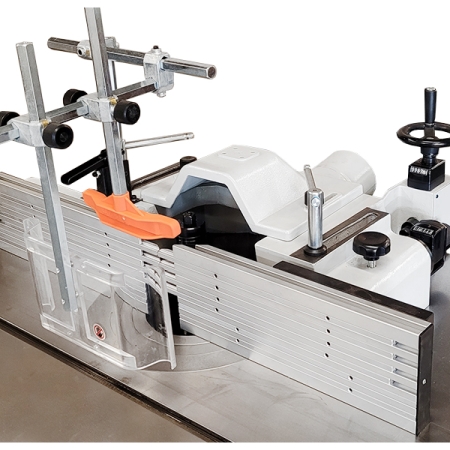

Adjustable finger type fence system to adjust around the cutterhead for optimal part support
Equipped with plug assembly for adding a CANTEK DC feeder and the table is pre-drilled to accept the feeder base
Table rings: 2 ¾” | 4 ¼” | 6” | 8” | 10” (72mm | 109mm | 154mm | 204mm | 264mm)

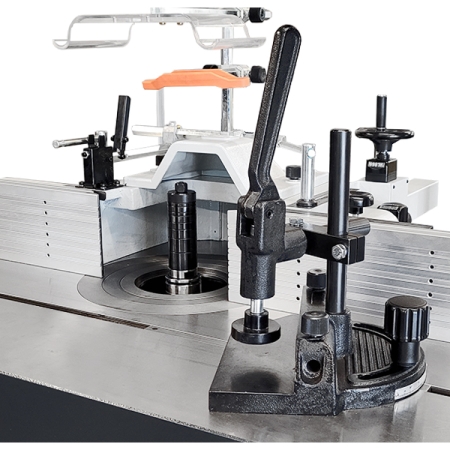

Comes with a miter gauge which runs in a guide on the table
