RN700 | OMGA | Radial Arm Saws

  • Power:
    5HP 230V 3PH
  • Description

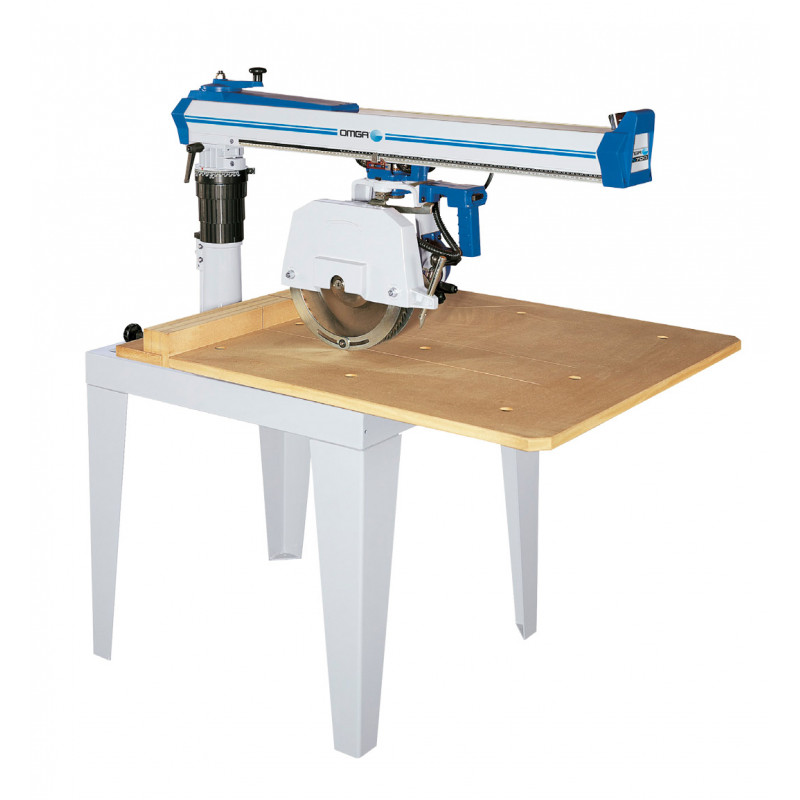

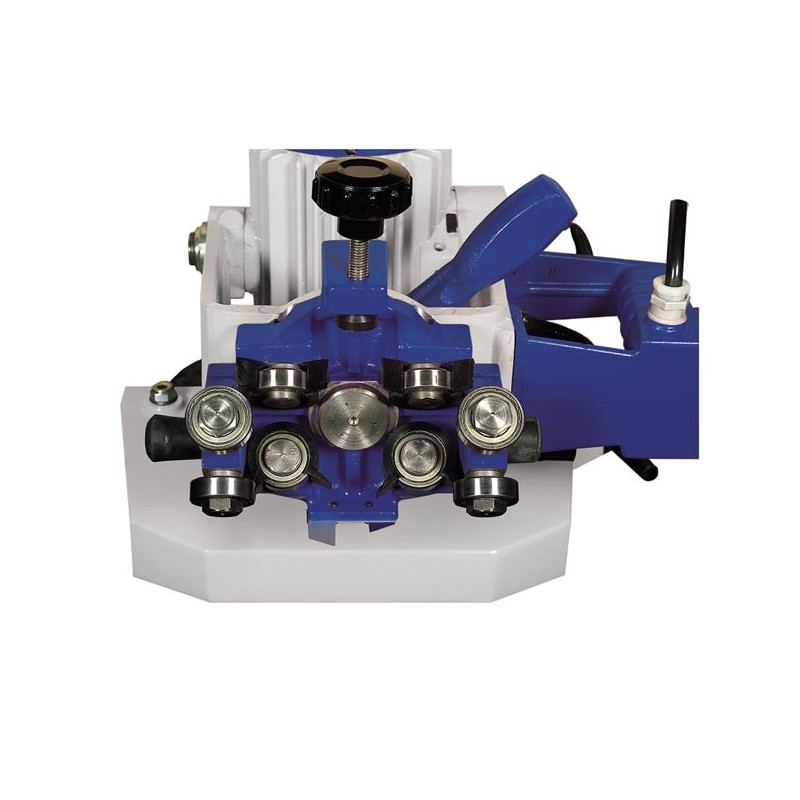

    14″ Radial Arm Saw 5HP Motor 27 1/2″ Cross Cut Capacity 36 5/8″ Rip Capacity. The precision of these radial arm saws is identified by the following characteristics: Saw carriage slides on 8 bearings, having dust scrapers which guarantees complete cleanliness of both the interchangeable steel tracks and the bearing. Self-centering locking in the main angles position of the arm, the motor and the carriage with the possibility of manual locking at all intermediate angles. Easy and extremely practical unlocking of the arm rotation on the front. Swiveling and tilting on the vertical and horizontal axes. These machines are especially suitable for furniture manufacturers, frame makers, sawmills and carpentry shops. Standard overload protection with no-volt coil, automatic head reversal and motor brake.

  • Specs

    Max. Depth of cut 45 Deg.|3-3/16″

    Motor power|5 HP

    Saw bore|1″

    Saw Diameter|14″

    Arbor speed RPM|3200

    Bevel positive stops|0-45

    Cross cut capacity|27-1/2″

    Table Size|35″x35″

    Max. Depth of cut -90|4-1/2″

    Miter positive stops|45-0-45

    Overall dimensions|35″x50″

    Ripping capacity|36-5/8″

    Shipping Weight Lbs.|368

    Crated Dimensions|52″x38″x63″

    Max. dado capacity|1 1/2″
