Description

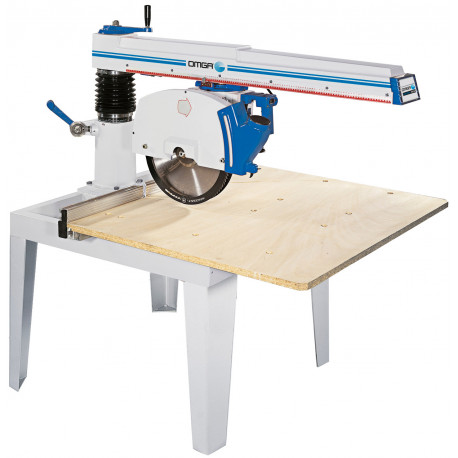

18″ Radial Arm Saw 7HP Motor 35 1/2″ Cross Cut Capacity 43 5/16″ Rip Capacity. Cast Iron Arm. These precision radial arm saws are very versatile, multi-purpose machines. This versatility is due to the possibility of swiveling and tilting both in the horizontal and vertical axis which makes the machines especially suitable for furniture manufacturers, frame makers, sawmills and carpentry shops. There is a wide range of accessories available to adapt the machine to each and every requirement.
-
Specs
Max. Depth of cut 45 Deg.|4 3/16″
Motor power|7hp
Saw bore|1″
Saw Diameter|18″
Arbor speed RPM|3200
Bevel positive stops|0-45
Cross cut capacity|35 1/2″
Table Size|47″x39″
Max. dado capacity|1 1/2″
Max. Depth of cut -90|5 7/8″
Miter positive stops|45-0-45
Overall dimensions|59″x48″
Ripping capacity|43 5/16″
Shipping Weight Lbs.|800
Crated Dimensions|63″x19″x43″ -
