AF19N | Cantek | Power Feeders

  • Description

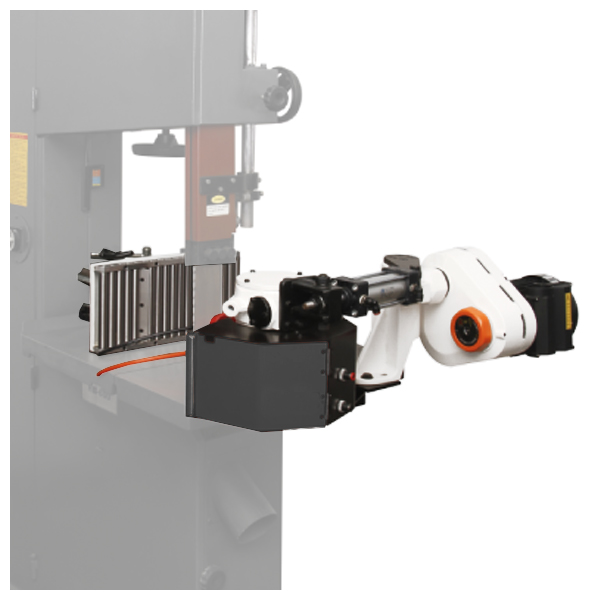

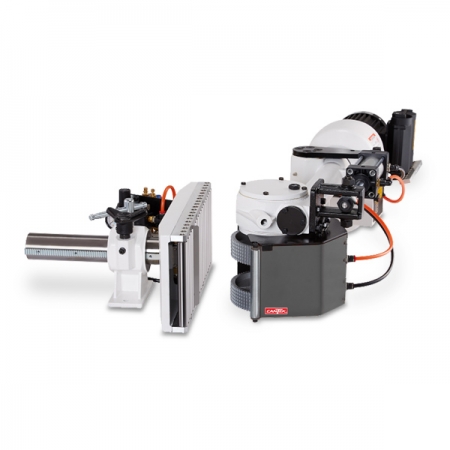

    Consistent and reliable automatic feeder for your resaw or bandsaw. The Cantek AF19N Resaw Feeder is designed to allow consistent and automated feeding of material through vertical bandsaw or resaws. The AF19N is pneumatically actuated by a switch in the fence so no foot pedal is required making for a simple and convenient operation. With 10 feed speeds to choose from you can dial in the optimum feed speed for your material. Intended to be fit on bandsaws which are over 24” but could be fitted on smaller bandsaw tables, but may require an extension off the side of your bandsaw table where the feeder is mounted.
    Key Advantages
    Consistent feeding for bandsaws and resaws
    Pneumatic activation of feeding unit, no foot pedal required
    10 feed speeds for optimum control
    Line bar roller fence is easily adjusted by rack and pinion handle
    Comes with (2) adjustable steel serrated rollers
    Can be mounted to almost any bandsaw/resaw (recommended for 24” and up)

  • Specs

    INCH
    METRIC
    Feed Speeds (10)
    4/8.5/8.5/14/17/25/28/30/50/60 FPM
    1.5/2.5/2.5/4/5/7.5/8/9/15/18 M/min
    Roller size
    Φ6-7/8”x 1-9/16″ x 2 pcs / Cast Steel
    Φ175 x 40 mm x 2 pcs
    Motor
    1/2 HP (0.375 KW), 3 phase; Forward
    1/2 HP
    Maximum roller stroke
    8”
    200mm
    Fence dimensions
    16” x 7 7/8”
    400 x 200mm
    Max. Roller-Blade Clearance
    8 1/4”
    210mm
    Net Weight
    79 Kg
    176 Lbs
    Gross Weight
    97 Kg
    209 Lbs
    Packing Size
    1220 x 480 x 470mm
    48″ x 18-7/8″ x 18-1/2″
