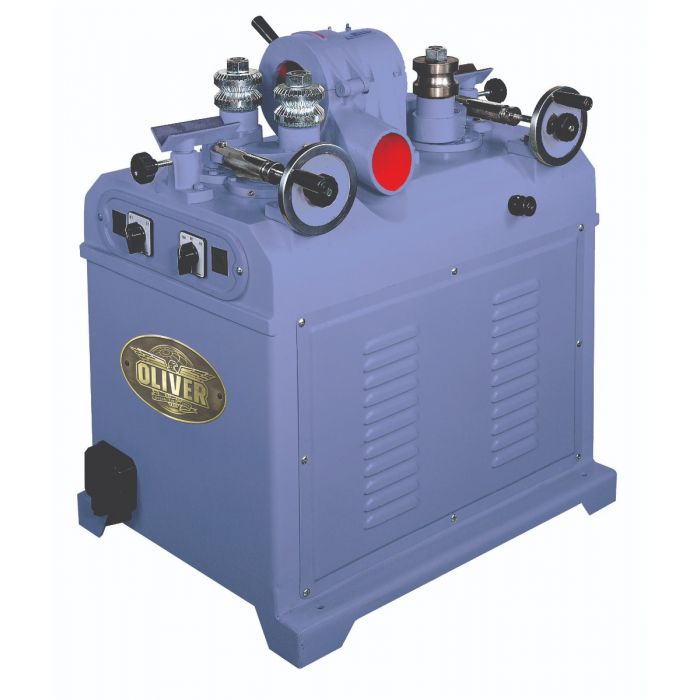

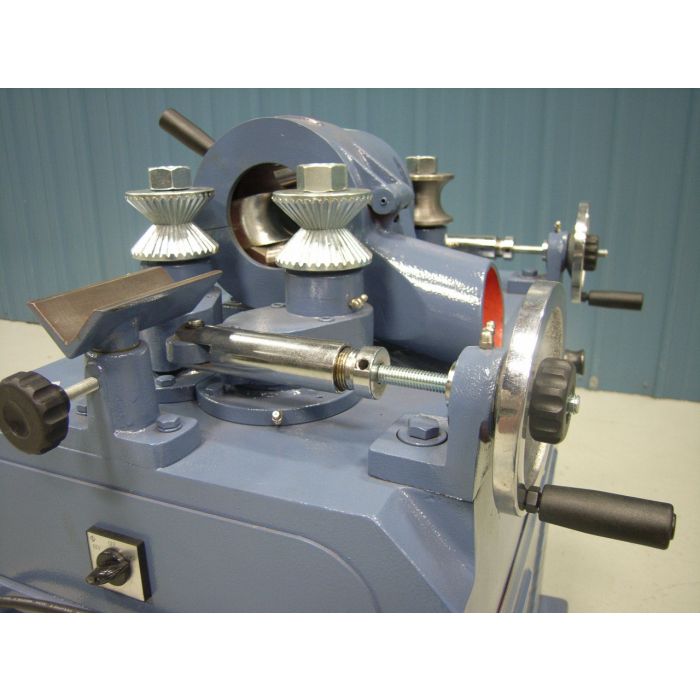

7660 | Oliver | Routers

  • Power:
    220/440V 3PH 7HP 20/10AMPS
Request a Quote

  • Description

    •Highly efficient design for maximum production.

    •Independent cutter head and feed motor provide unmatched performance with a maximum feed rate of 52 feet per minute.
    •4-feed rates allow greater versatility of material and applications.
    •Feed can be reversed for quick stock removal in the case of a jam.
    •Fully guarded hood provides a safe work station.
    •Wide range of capacity from 3/8” to 2-1/4” with optional cutter sets.
    •Includes 1” and 2” cutter sets.
    •Built-in 4” dust port allows efficient dust management.
    •Magnetic controls for safer operation.
    •Powerful three phase 5HP TEFC cutter head and 2HP TEFC feed motor.

  • Specs

    Cutting Capacity|3/8” – 2-3/8”

    Maximum Material Removal|3mm

    Cutter Set Included|1” & 2” only

    Minimum Length of Stock|12″

    Cutterhead Drive Motor|5HP

    Motor|2HP

    Cutterhead Speed|3,000 RPM

    Feed Speeds|20, 30, 43, 53 FPM

    Overall Dimensions|36-1/4 x 30 x 39-1/2”

    Main Motor|5HP, 3Ph 220V/440V Prewired 220V (20/10 Amp)

    Net Weight|660 lbs.

    Gross Weight|770 lbs.
