S-750 | Nederman | Dust Collectors

  • Power:
    7.5HP 208-230/460V 3PH or 1PH 230V
Request a Quote

  • Description

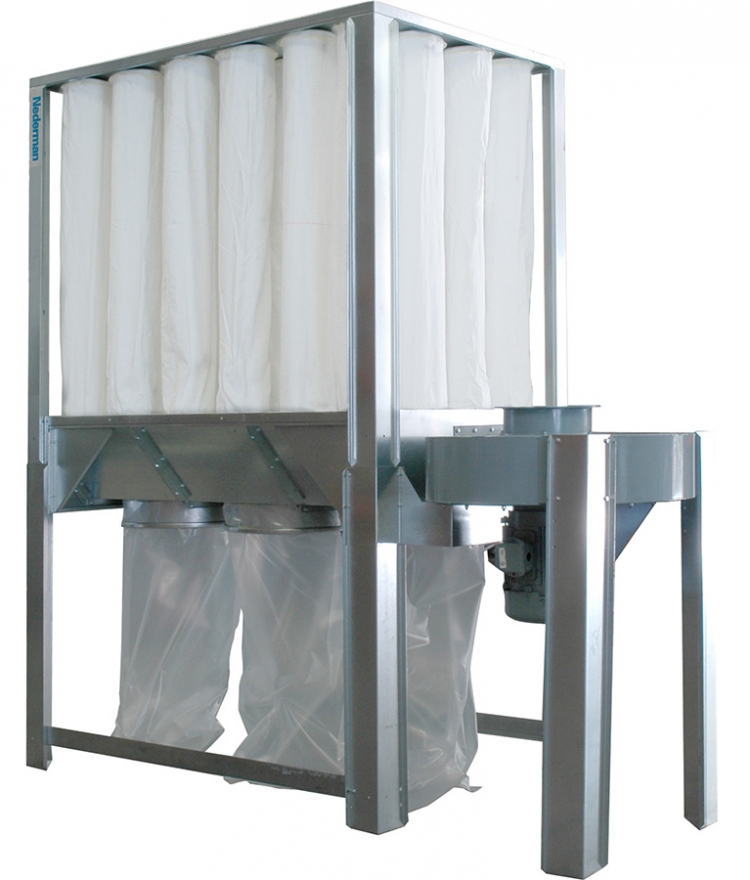

    The S-Series S-750 is an enclosureless, silent and simple to set up dust collector suitable for wood and sawdust applications (furniture, cabinetry, windows, doors, flooring, particle board, MDF, building materials, marine, and sawmills) and for general dust collection where feasible. It is designed for indoor installation compliant with NFPA combustible dust regulations.



    • High performance SuperBags reduce bag replacement needs down to 3-5 years

    • Energy efficient fans utilize an impeller design that is 20% more efficient than common radial blade fans

    • Silent operation with high performance fans run only 10-15 dB(A) over normal conversation sound level

    • Provide safety and reliability for your workplace and manufactured in compliance with the latest NFPA standards

    • Unique collapsible design with pre-installed fan and SuperBags minimize installation time and effort with 3 step easy and quick installation.

  • Specs

    Power Voltage (V)|208 1PH or 208-230/460 3PH

    Frequency (Hz)|60

    Filter type|Bag

    Number of filter elements|24

    Filter material|Superbag

    Weight (lbs)|750

    Power (Hp)|7.4 (5.5 Kw)

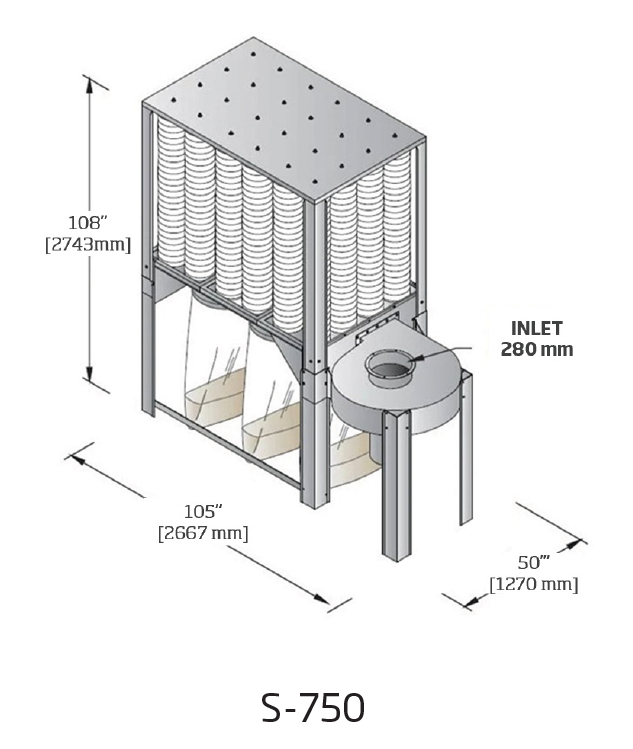

    Note|4500 CFM at 5.0″ Wg|243 Sq Ft of filter media

  • Download

    brochure s-series _406040
