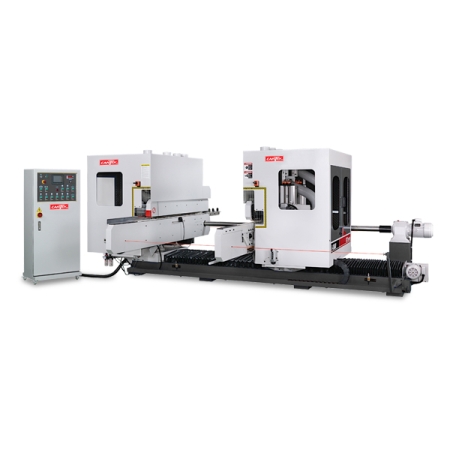

Production Double End Tenoner Series for Doors, Windows, and more. The Cantek DET S-Type Double End Tenoners are the top of its line, constructed with robustness to meet the highest demands in various applications. They offer configurations with up to eight spindles (four on each side) and are available in widths ranging from 51” to 180”. These double end tenoners prove highly suitable for producing doors, furniture, windows, and more. The DET series can be tailored to your precise requirements, offering a diverse selection of processing units and features. You have the option to acquire the DET series as a standalone solution or as part of a production line, allowing for the automated processing of all four sides of a workpiece.
Key Advantages

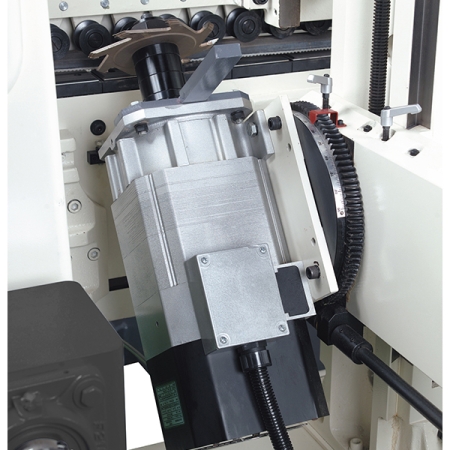

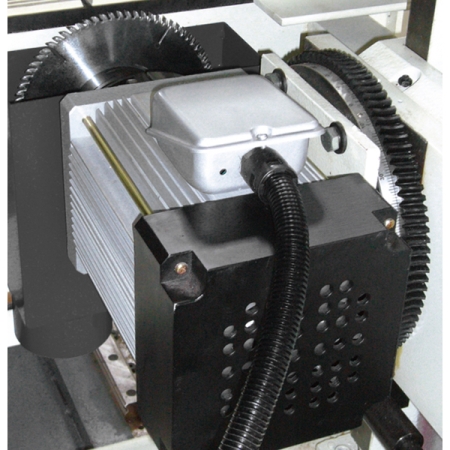

Tilting function ±90˚ on scoring, main saw, and moulding stations

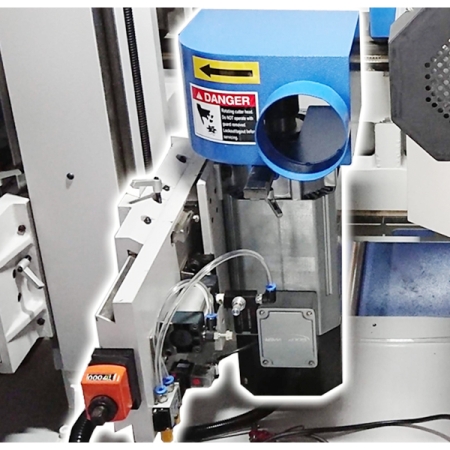

Non-through grooving function on 1st Moulding Units with jumping function
Infeed and outfeed safety guards, as well as enclosed cabinet with safety interlocks on access doors
Precision chain track assemblies with manually retractable stop dogs to ensure perfect “squareness”
Adjustable infeed fence determines stock removal length
Automatic braking of saw blades and moulding heads
Precision digital readouts for adjusting the workpieces accurately

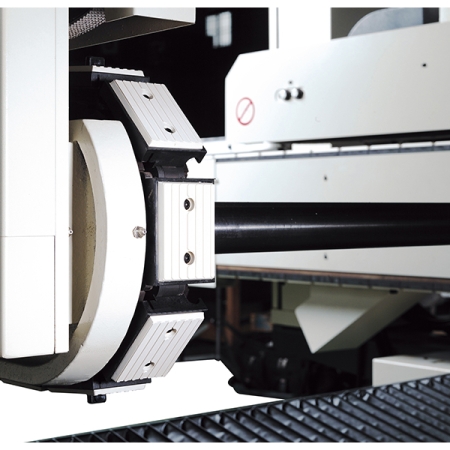

The feed conveyor is equipped with needle bearings to increase wear resistance.
Choice of rubber or phenolic surfaces on chain pads

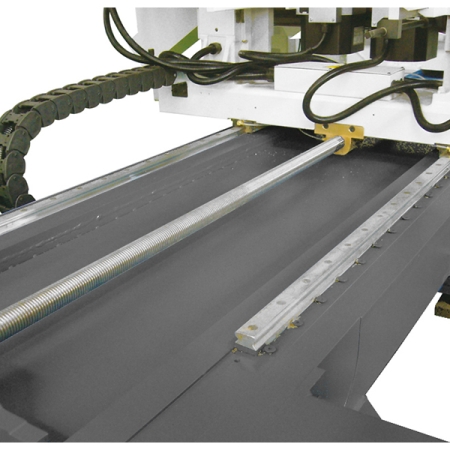

The movable side is mounted on precision linear guideways to ensure accuracy & smooth movement

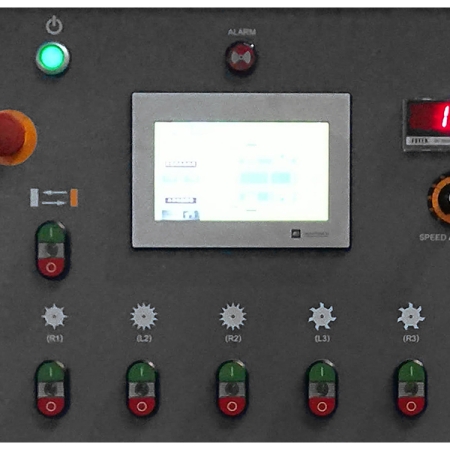

Width is set through the tough screen combined with a PLC to ensure high positioning accuracy
Schneider electrical components to CSA standard
Mechanical digital readouts for accurate positioning of each working unit
Optional HSK spindles for even faster changeovers
Key Advantages
Tilting function ±90˚ on scoring, main saw, and moulding stations
Non-through grooving function on 1st Moulding Units with jumping function
Infeed and outfeed safety guards, as well as enclosed cabinet with safety interlocks on access doors
Precision chain track assemblies with manually retractable stop dogs to ensure perfect “squareness”
Adjustable infeed fence determines stock removal length
Automatic braking of saw blades and moulding heads
Precision digital readouts for adjusting the workpieces accurately
The feed conveyor is equipped with needle bearings to increase wear resistance.
Choice of rubber or phenolic surfaces on chain pads
The movable side is mounted on precision linear guideways to ensure accuracy & smooth movement
Width is set through the tough screen combined with a PLC to ensure high positioning accuracy
Schneider electrical components to CSA standard
Mechanical digital readouts for accurate positioning of each working unit
Optional HSK spindles for even faster changeovers -
Specs
S-Type Configuration:
DET-86/88S
DET-66/68S
DET-46/48S
Max. working width
102.3” (120 / 144″)
78.7”
51.1”
Min. working width
8.3”
8.3”
8.3”
Max. working thickness calibration
4.7”
4.7”
4.7”
Feed Chain Track
Motor horsepower
2 HP (3/5 HP)
2 HP (3/5 HP)
2HP (3/5 HP)
Feed speed
16~82 FPM
16~82 FPM
16~82 FPM
Distance between dogs
15.7” (11.8”/7.9”)
15.7” (11.8”/7.9”)
15.7” (11.8”/7.9”)
Movable Side Shifting System
Motor horsepower
1 HP
1 HP
1 HP
Positioning speed
1.6 FPM
1.6 FPM
1.6 FPM
Scoring Saw System
Motor horsepower
2 HP (3/5 HP)
2 HP (3/5 HP)
2 HP (3/5 HP)
Spindle speed
3450 RPM (60Hz)
3450 RPM (60Hz)
3450 RPM (60Hz)
Spindle shaft diameter
1” (1.2”/1.6”)
1” (1.2”/1.6”)
1” (1.2”/1.6”)
Spindle shaft length
2.4”
2.4”
2.4”
Sawblade diameter
Ø8.1” x Ø1” x 80T x 3t
Ø8.1” x Ø1” x 80T x 3t
Ø8.1” x Ø1” x 80T x 3t
Main Saw System
Motor horsepower
5 HP (7.5/10/15 HP)
5 HP (7.5/10/15 HP)
5 HP (7.5/10/15 HP)
Spindle speed
3450 RPM (60Hz)
3450 RPM (60Hz)
3450 RPM (60Hz)
Spindle shaft diameter
1” (1.2”/1.6”)
1” (1.2”/1.6”)
1” (1.2”/1.6”)
Spindle shaft length
2.4”
2.4”
2.4”
Sawblade diameter
Ø12” x Ø1” x 100T x 3t
Ø12” x Ø1” x 100T x 3t
Ø12” x Ø1” x 100T x 3t
1st Moulding System (Jumping Function)
Motor power
5 HP (7.5/10/15 HP)
5 HP (7.5/10/15 HP)
5 HP (7.5/10/15 HP)
Spindle speed
4500~7000 RPM
4500~7000 RPM
4500~7000 RPM
Spindle shaft diameter
1.6”
1.6”
1.6”
Spindle shaft length
3.5”
3.5”
3.5”
Cutter diameter
Ø7.1~8.3”
Ø7.1~8.3”
Ø7.1~8.3”
2nd Moulding System
Motor power
5 HP (7.5/10/15 HP)
5 HP (7.5/10/15 HP)
5 HP (7.5/10/15 HP)
Spindle speed
4500~7000 RPM
4500~7000 RPM
4500~7000 RPM
Spindle diameter
1.6”
1.6”
1.6”
Spindle shaft length
3.5”
3.5”
3.5”
Cutter diameter
Ø7.1~8.3”
Ø7.1~8.3”
Ø7.1~8.3”
