Description

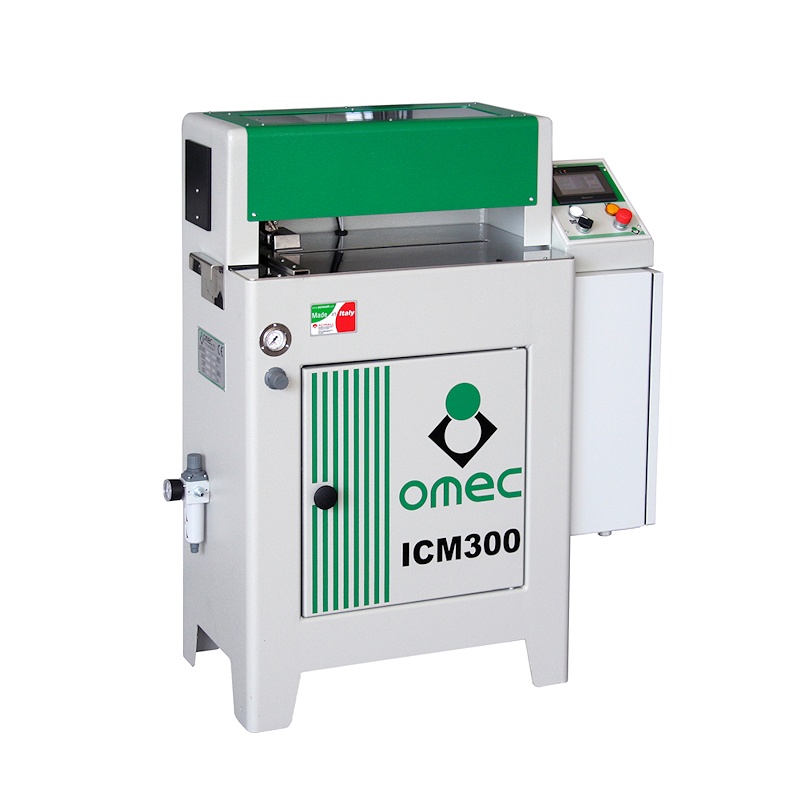

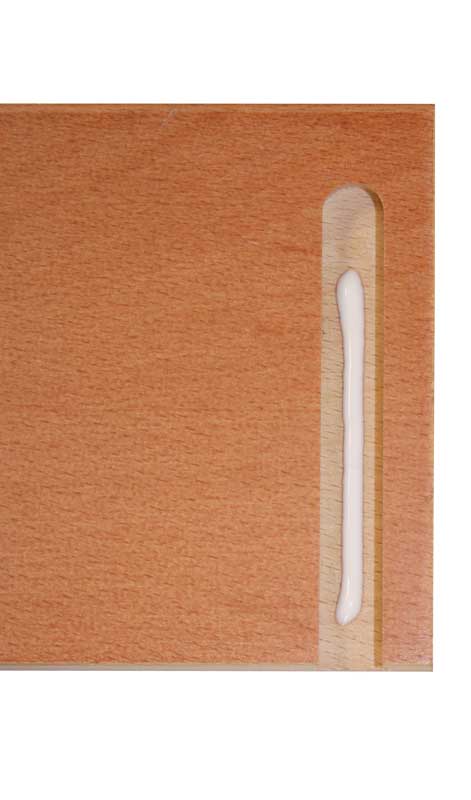

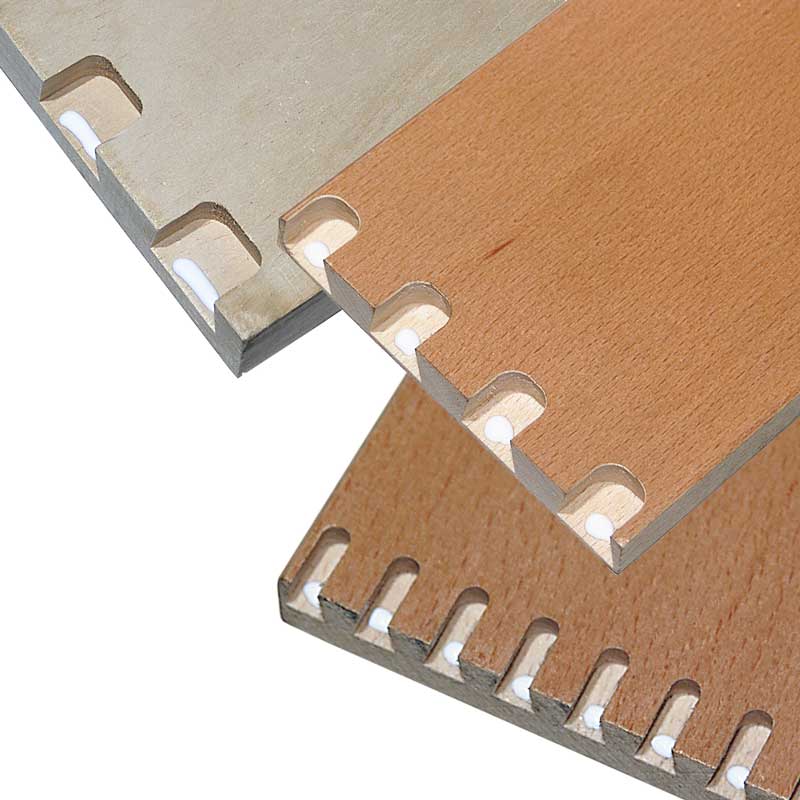

The OMEC ICM300 manual gluing machine was designed to glue different types of drawers featuring dovetails, parallel joints and lock pins. This machine can glue drawers having any type of joint pitch, with no need for customized parts or nozzles, and there is no need for adjustments when the width of drawers is modified. The machine also comes with a special system for adjusting glue quantity. Thanks to the special configuration of the spray nozzle, it is possible to clean it at the end of the operating cycle. Machine control is performed by an on-board control panel.
-
Specs
On board machine installed power|30 watts/.25HP
Working pressure|Mpascal 0.7
Glue Type|Low Viscosity Assembly Glue
Glue Tank Capacity|9 liters/2.3 gallons
Machine weight|176 lbs/80 kg
Packed machine weight|242 lbs/110 kg
Overall dimensions|25.59” x 15.75” x 41.34” (65cm x 40cm x 105cm)
Packing dimensions|29.53” x 19.69” x 47.24” (75cm x 50cm x 120cm) DIMENSIONAL LIMITS OF WORKPIECES
Minimum|Maximum
Drawer Length|5.91”(150mm)|59.06”(1500mm)
Drawer Width|1.97”(50mm)|17.72”(450mm)
Drawer Thickness|0.20”(5mm)|1.18”(30mm) -
