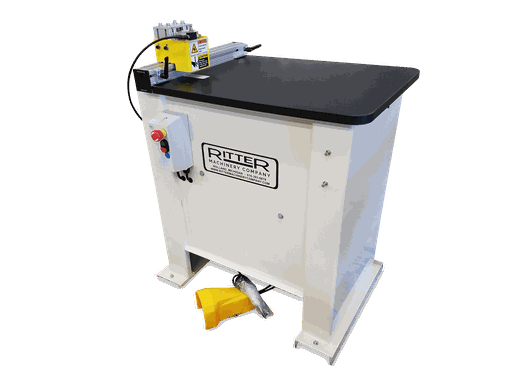

R200T | Ritter | Pocket Hole Machines

  • Power:
    1.5HP 110V
  • Description

    Designed for pocket joinery face frame construction. The Ritter R200T pocket hole drill providess the most efficient and economical method of frame joinery. Flush and tight joint construction is provided on all types of wood. The elimination of dowel boring, dowel and glue insertion, clamping time and joint misalignment provides up to 50% reduction in frame construction. The ability to disassemble a frame and reposition a joint without the loss of material adds to the systems productivity. The design of the R200T pocket hole drill eliminates the need for glue to be applied to the joint.

  • Specs

    •1.5 HP Spindle Drive Motor, TEFC

    •Foot Actuated Boring Cycle

    •14 Degree Single Spindle

    •6,100 RPM Spindle Speed

    •24″ x 30″ Table Area

    •Adjustable Fence with (2) Stops

    •Tooling Included

    •Interchangeable Head with R220T

    Technical Data and Specifications:

    Electrical: 110/120V, 60Hz, 20A

    Air: 2 CFM at 80 – 100 PSI

    Work Height: 38.25″

    Footprint: 34.5″ x 25.25″

    Additional options:

    R200T3 – 1.5 HP 3-Phase 230/460 Volt

    Shipping Weight: 561 LBS

    Shipping Dimensions: 33” X 43” X 51”
