Description

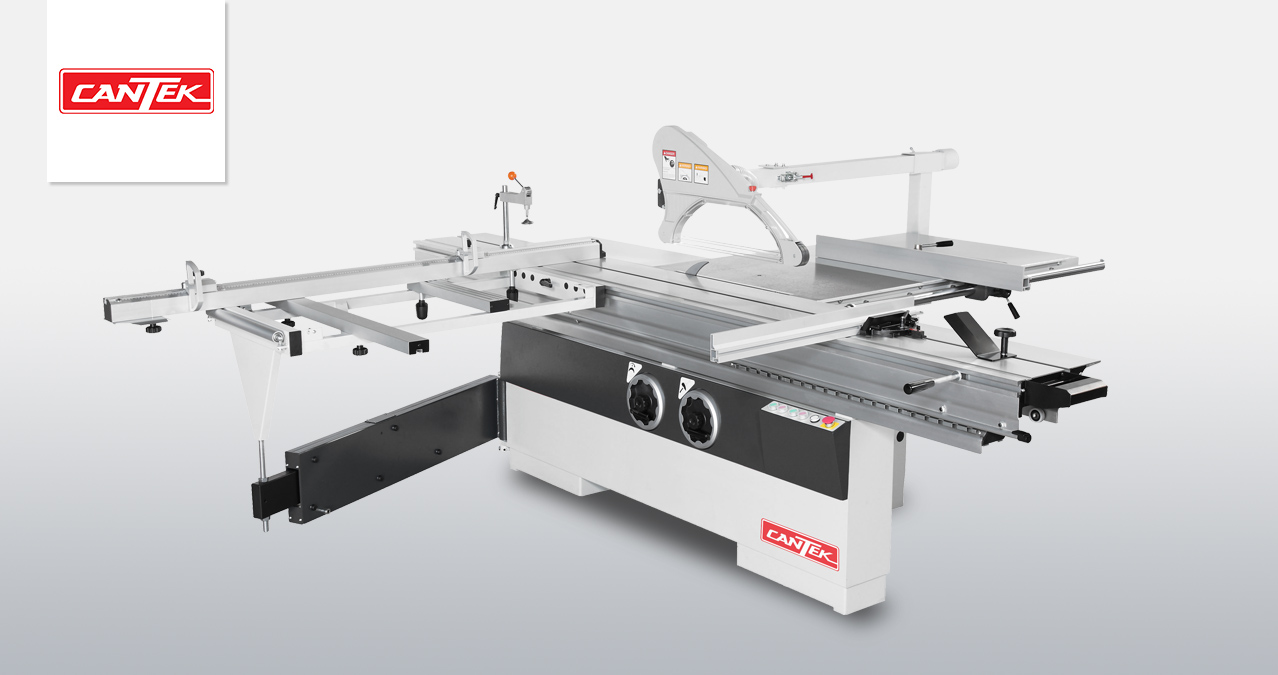

The Cantek D405M-8 8′ Sliding Table Saw is the ideal panel cutting solution for kitchen cabinet shops, millwork companies, and furniture shops who need a precision saw but have limited floorspace. The D405M-8 combines a heavy-duty construction with cast iron main table, cast iron saw carriage, and precision sliding table resulting in precise panel sizing with high accuracy and repeatability time after time. The double roller sliding table runs effortlessly and smoothly and the crosscut miter fence can be easily and accurately adjusted for optimum results
-
Specs
Sliding table dimension 102.4″x14.9″
Cast iron table 21.6″ x 35.3″
Extension table (rear) 37.5″ x 35.3″
Extension table (front) 12.6″ x 32.7″
Table size 59″ x 68″
Maximum main saw blade dia. 16″
Main saw bore 30mm
Max. cutting height at 90° (355mm) 4.13″
Max. cutting height at 45° (355mm) 2.76″
Main motor power 7.5 HP (3ph) / 5HP (1ph)
Main blade speed (3) 3000/4000/5000 RPM
Scoring saw blade 120 mm
Scoring saw blade bore 20mm
Scoring blade motor power 1 HP
Scoring blade speed 8000 RPM
Cutting width 51″
Cutting width adjustment Manual
Main saw blade tilting adjustment Manual (0°~45°)
Main saw height adjustment Manual
Scoring saw adjustment Manual
Dust ports (machine / guard) 4.72″ / 2.5″
Machine total weight 1612 lbs.
Machine shipping details 1428 lbs (83″x46″x44″)
Sliding table shipping details 363 lbs (137″x20″x15″)
Overhead guard shipping details 80 lbs (40″x36″x6″)
Electrics 230/3/60 = 26.2 Full Load Electrics 230/1/60 = 36 Full Load Amps -
