Description

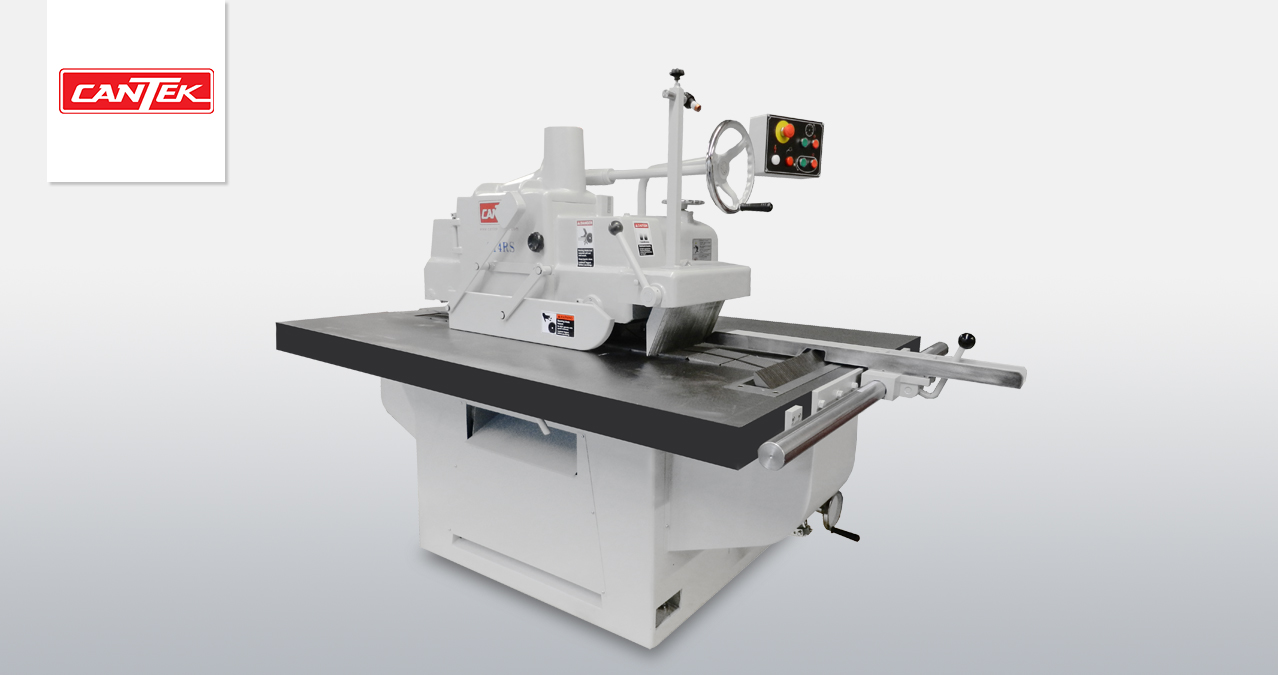

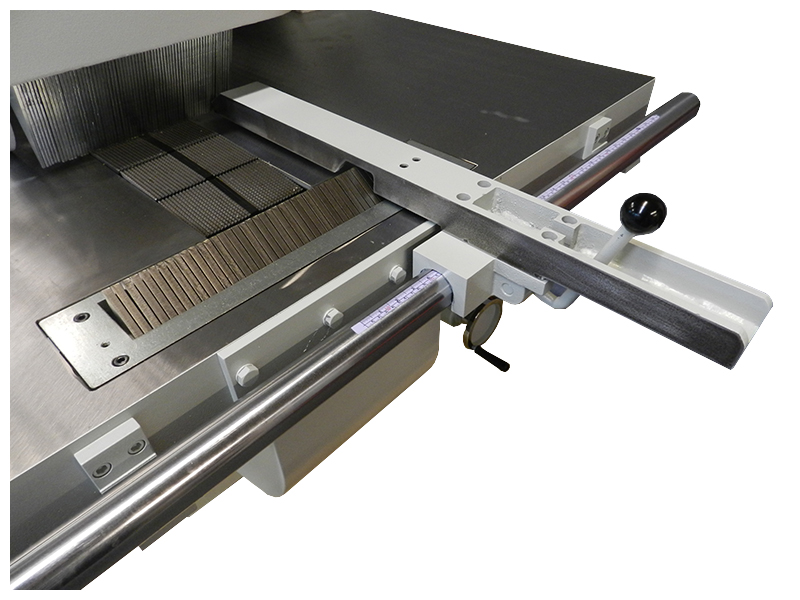

The Cantek C14RS Straight Line Ripsaw is a single-blade ripsaw is geared towards the shop looking to increase efficiency in their ripping operations but cannot justify a multi-blade ripsaw. With its precision cast iron chain and track assembly, and extended pressure section, the C14RS can produce a glue joint finish ready for panel glue-up right out of the saw.
-
Specs
Saw blade diameter 12″ ~ 15″
Saw arbor diameter 1.5″
Saw arbor speed 3500 RPM
Feed speeds variable 33 ~ 98 FPM
Max. cutting thickness: 12″ blade 3.35″
Max. cutting thickness: 13″ blade 3.94″
Max. cutting thickness: 14″ blade 4.33″
Max. cutting thickness: 15″ blade 4.92″
Minimum workpiece length 8″
Distance between saw and column 24″
Arbor motor 20 HP
Feed motor 2 HP
Table size 50″ x 75″
Table height 31.5″
Dust port size 5″
Net weight 3410 lbs
Machine dimensions 89″ x 57″ x 57″
Shipping weight 3960 lbs
Shipping dimensions 83″ x 63″ x 67″
Electrical requirements 230/3/60 = 60.8 amps; 460/3/60 = 30.4 amps; 575/3/60 = 24.1 amps -
