Description

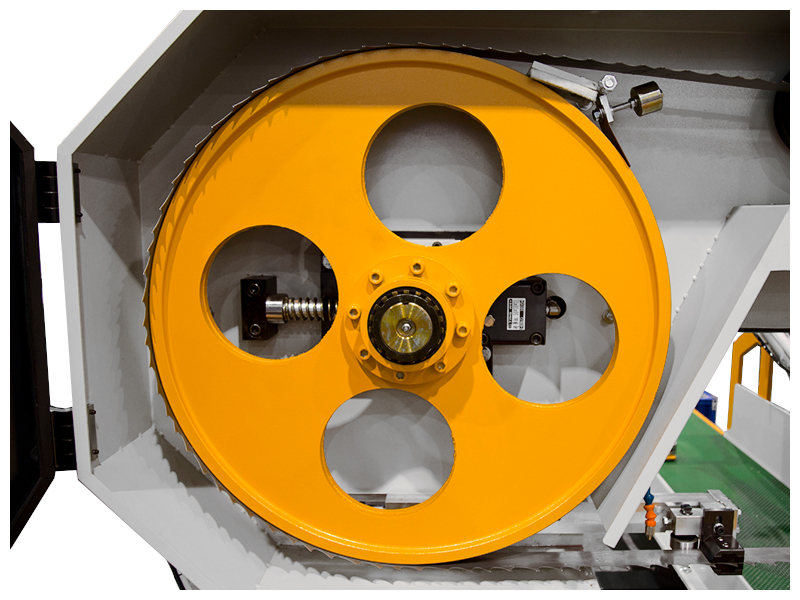

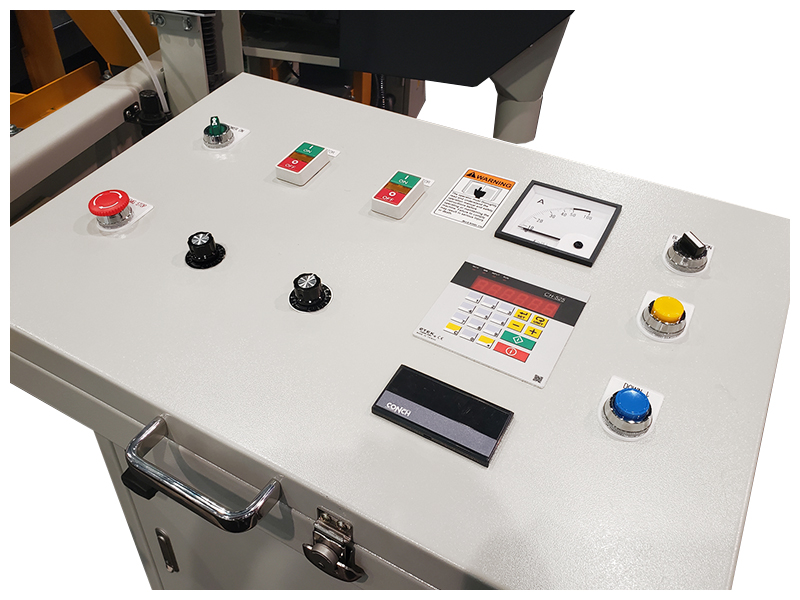

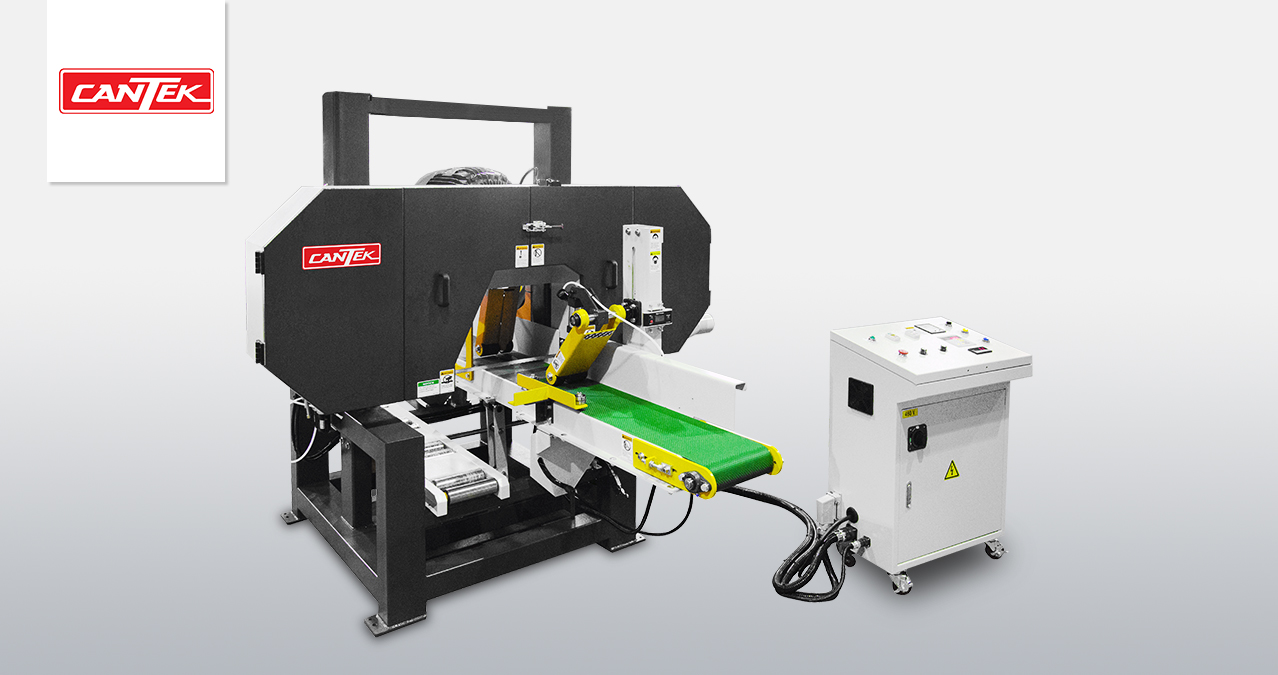

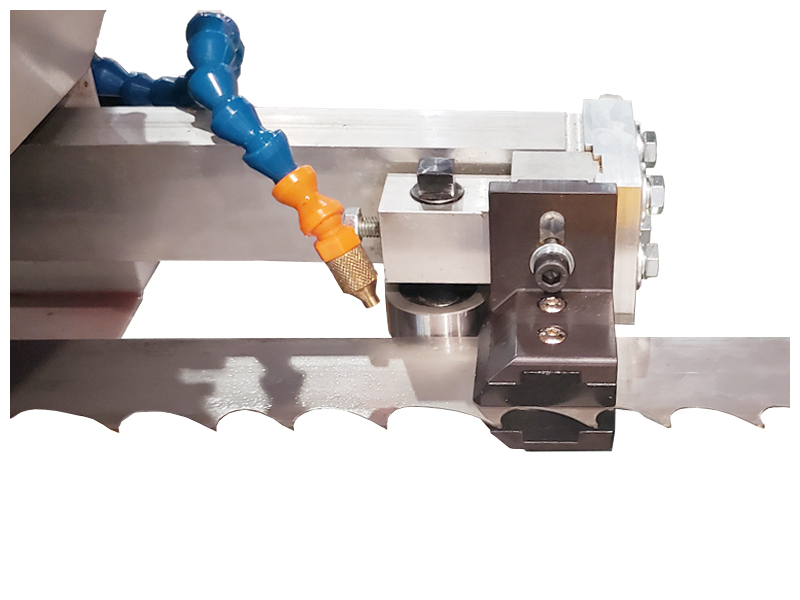

The Cantek HR300PBX tilting bed horizontal band resaw is industrially built for demanding resawing applications. The bed can be tilting from 0-45° making it ideal for bevel siding, moulding blanks, or millwork components. Capable of feeding up to 12” x 12” timber and cutting up to 10” thick. The powerful 30HP saw motor has a variable feed control allowing you to match the cutting speed to your blade & application requirements. The HR300PBX runs a 2” wide blade which runs on solid steel band wheels which are precision machined and balanced for a smooth cutting action. The precision sandwich style blade guides ensure the blade runs true for optimum cutting results. The thickness is conveniently adjusted using a precision motorized digital thickness control.
-
Specs
Max. workpiece size|12″ x 12″
Distance from blade to conveyor|0.157″ – 9.8″

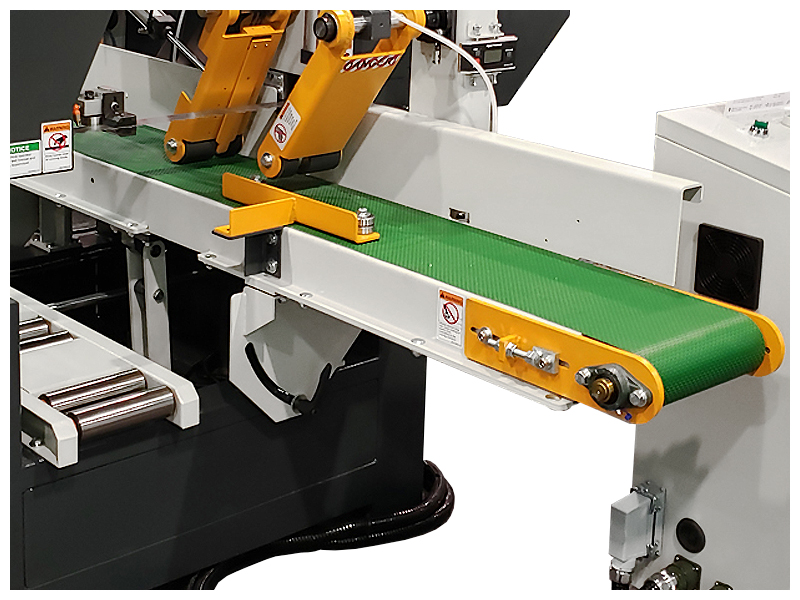

Conveyor belt size|11.2″ x 215″
Machine wheel dimensions|28” Dia. x 2” Wide
Main motor (Resaw wheels)|30 HP
Conveyor motor|3 HP
Blade elevation motor|¼ HP
Variable feed speeds|0~148 FPM
Dust hood diameter|4″ x 2
Saw blade size (Normal)|180″ x 2″
Feed belts – bed angle|0 ~ 45°
Voltage – Stock machine|460/3/60 = 45 Amps
Machine weight|3960 lbs
Shipping weight|4400 lbs
Shipping dimensions|113″ x 90″ x 85″ -
