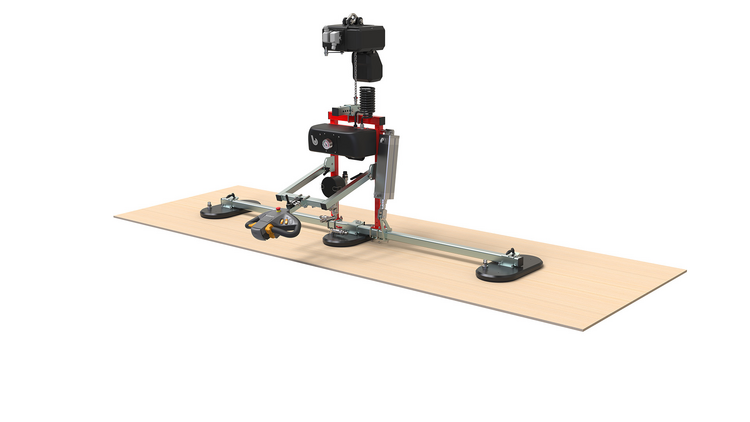

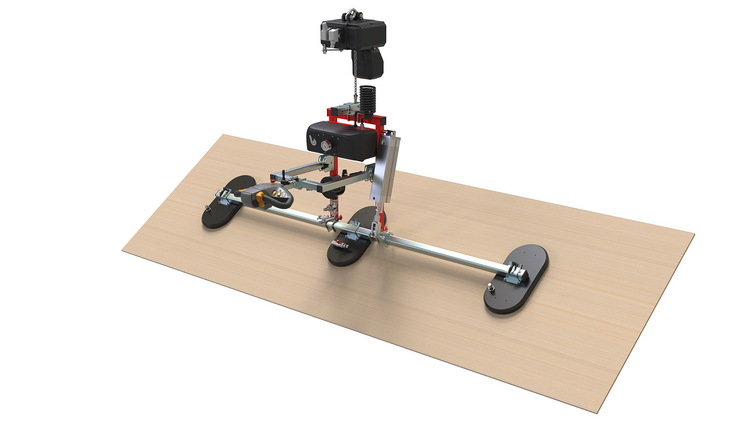

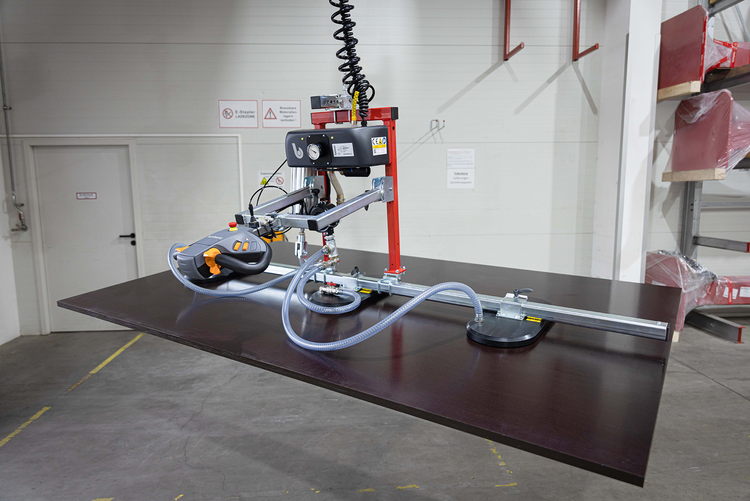

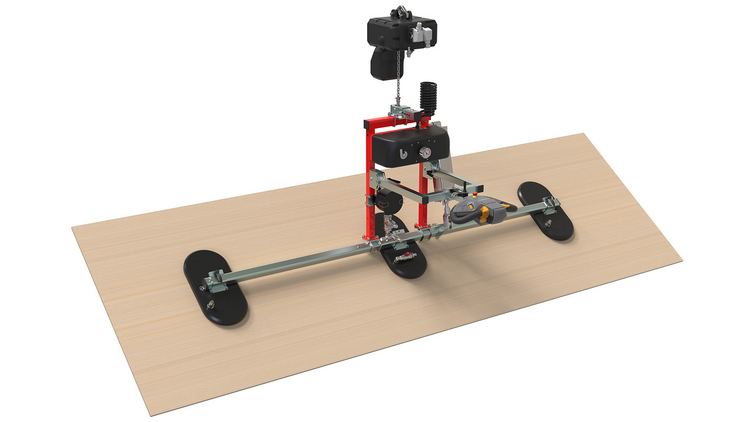

UWL 3J – Large Format Wood Panel Lifter
The UWL 3J is a special version of our bestseller UWL 3, that accommodates even larger panels up to 500 kg. The lifter is equipped with a tilting cylinder for both vertical and horizontal handling of panels. The suction traverse can be individually configured to fit the handling application.
- Specifically built for large format wood panels
- Lifting capacity up to 300 kg and optionally up to 500 kg

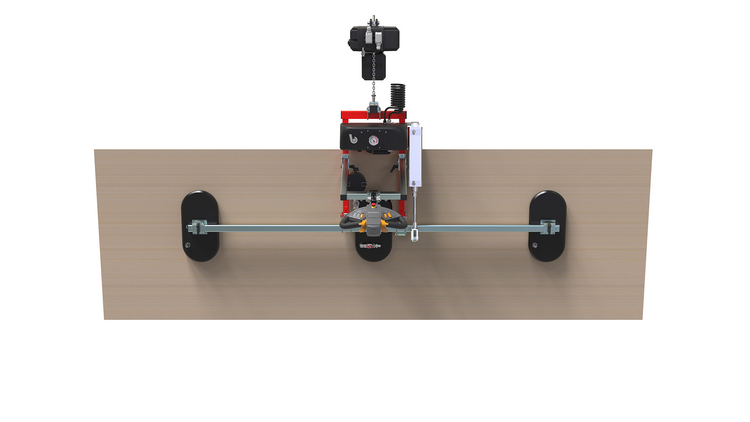

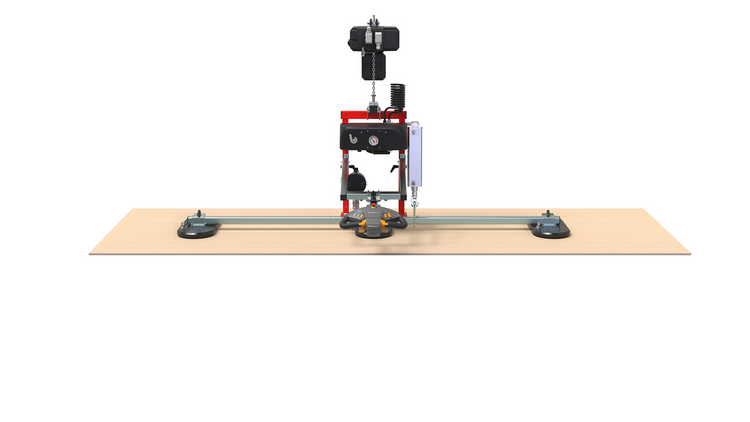

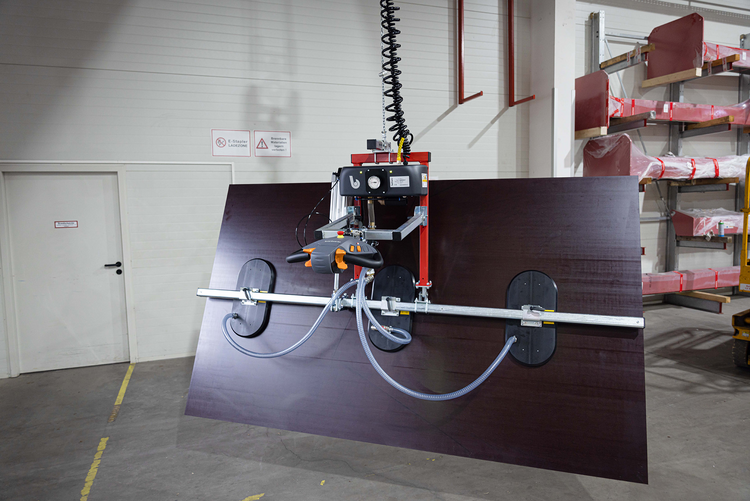

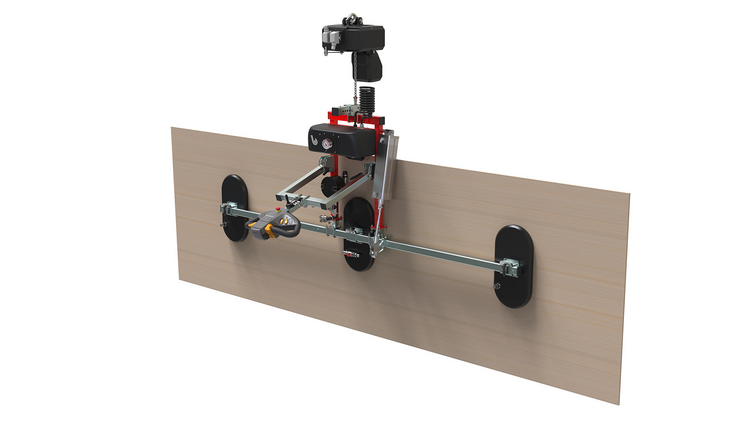

- 90° Tilting function for vertical and horizontal handling
- Ergonomic design and easy to use
Functions & Features
- Tilting range of 90°, pneumatically (at version UWL 3J)
- Increased vacuum generation
- Continuously variable liffting and lowering
- Low overall height
- Adjustable operating handle

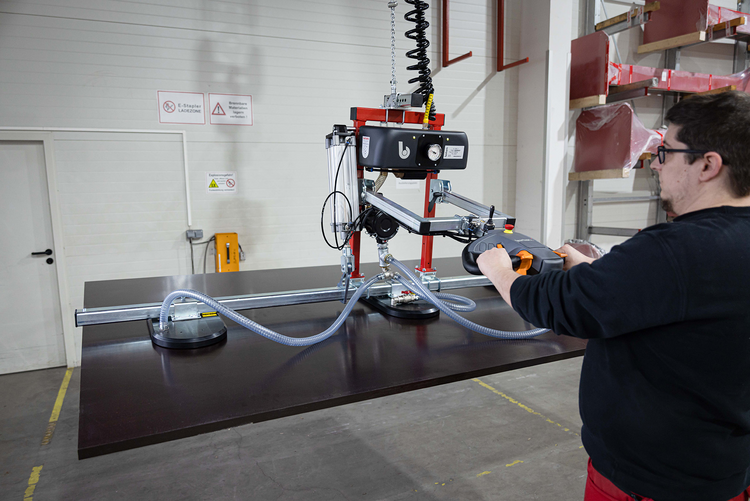

- Special handle for one-hand operation
Technical changes and errors excepted.
-
Specs
Technical data:
Working loads: 300 kg or 500 kg
Lifting speed 0-10 m/min
Tilting range 0° to 90°
Tilting speed approx. 5 sec.
Suction time approx. 1-2 sec.
Vacuum generation Pneumatic venturi style
Air consumption 11 Nl/sec.
Usable chain length 3.5 m
Dead weight approx. 85 kg -
