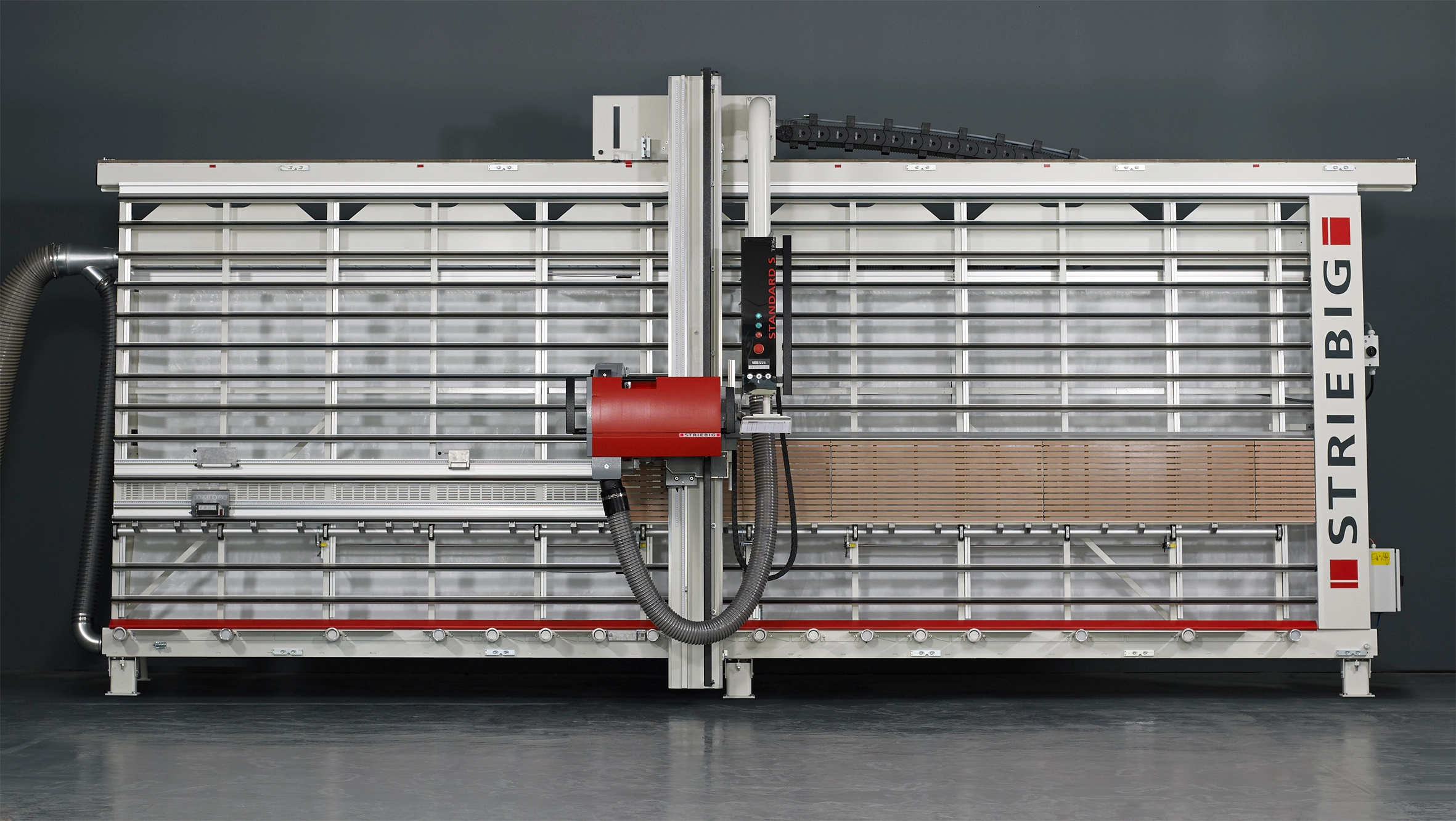

STANDARD S | Striebig | Panel Saws

  • Power:
    7.5HP 220/440V 3PH
  • Description

    The Striebig STANDARD has been setting the standard in the universal class for vertical saws for many years. It saws a wide variety of panel materials with precision, accuracy and perfect edges every time. Absolute parallelism between the upper guide rail, the central support and roller support will ensure precise cutting over many years.

    The STANDARD offers proven technology, a wide range of possible applications and Striebig’s exemplary precision. With the addition of the “Comfort” premium package to the S version, you get auto-locking support rollers, digital measuring for the Y-axis with motorized fine adjustment, pneumatic carriage clamping, and the laser cut line guide for horizontal cuts.

  • Specs

    Cut capacities: 14’1″ W (17’4″ optional) x 5’6″ H; depth 3-1/8″ (80mm)

    Weight (approx.): 1650 lbs. (net), 2200 lbs. (gross)

    Main Saw Blade: 300 mm dia., 30 mm bore

    Electrical: 3 phase, 220V or 440V

    Dust collection: 1000 cfm, 140 mm connection; choice of side

    Floor Space: 18′ 0″L (21’3″ opt.) x 5’1″D x 8’7″H (machine only)
  • Download
