COMPACT PLUS | Striebig | Panel Saws
-
Power:5.25HP 208-480V 3PH
-
Description

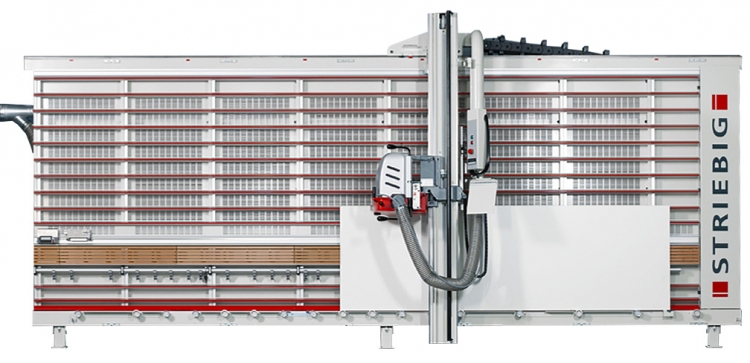

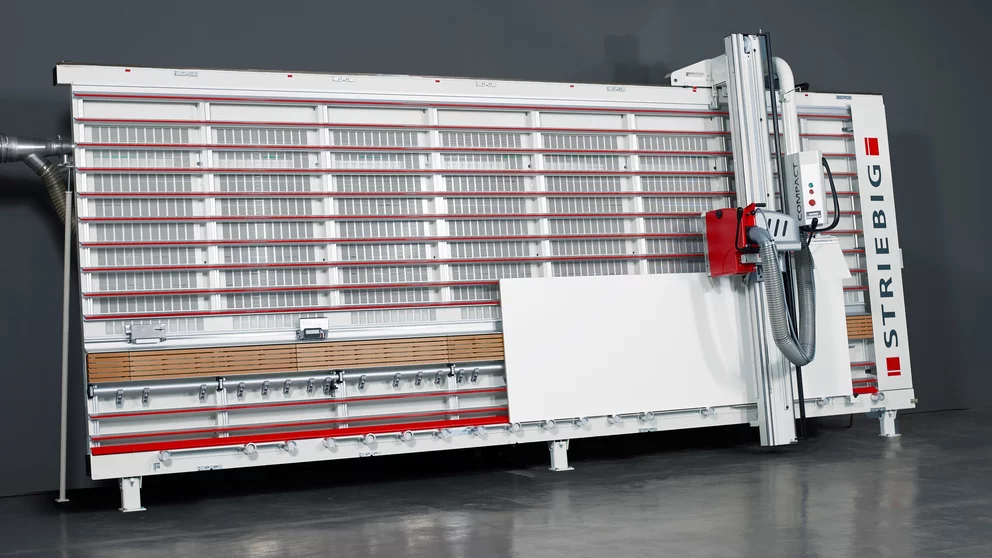

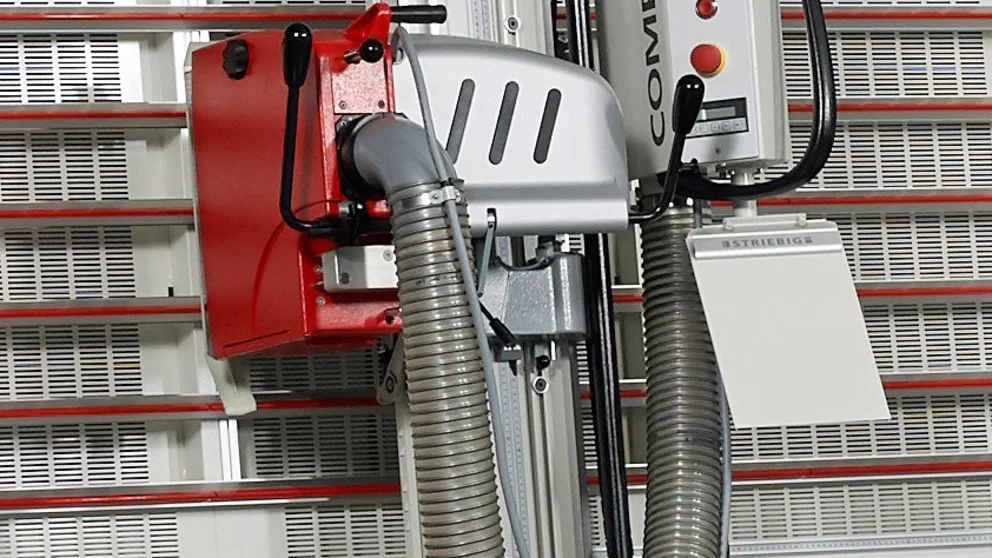

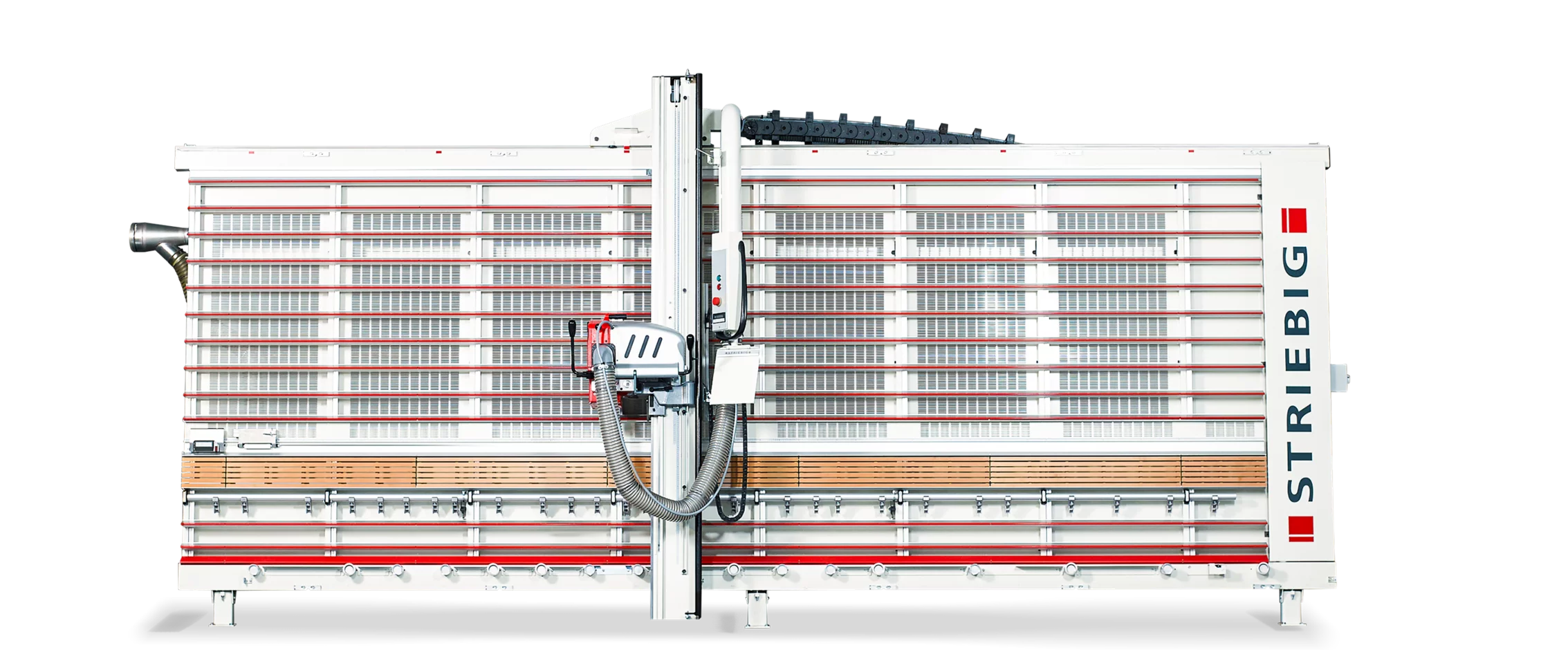

The Compact Plus vertical panel saw is a larger version of the Striebig Compact, which has been so popular with small to medium cabinet shops since its introduction. Built with the traditional Swiss quality that has made the Striebig name legendary in the world of panel cutting, this saw is the ultimate in value for the dollar. With an expanded 15′ 1″ cutting capacity, it has all of the features of its little brother, including heavy-duty rollers for ease of panel handling, a 10′ center shelf with built in support for small pieces, automatic shifting support grid, 4 HP motor with electric brake, and an optional split blade scoring saw unit. The saw is ideal for the shop that primarily cuts single sheets (although it does have multiple sheet capability with 2-3/8″ depth of cut) and wants the ability to cut larger panels or the occasional solid surface sheet. As expected, the Compact Plus is a versatile machine designed to accept the unique range of Striebig options, including digital measuring, an angle cutting device, and various grooving tools.
-
Specs
Cut capacities: 15’1″ W x 5’4″ H*; depth 2-3/8″ (60mm) *(up to 17’6″ x 7’2″ available as option)
Weight (approx.): 1364 lbs. (net), 2000 lbs. (gross)
Main Saw Blade: 250 mm dia., 30 mm bore with (2) 7 mm pin holes (42 mm circle)
Scoring Saw Blade: (option) 80 mm dia., 20 mm bore split-blade type w/shims
Electrical: 3 phase, 220V/20 Amp or 440V/10 Amp service *208V and 240V motors available
Dust collection: 1000 cfm, 100 (x2) connections (second connection at bottom right corner of frame is optional and hose is not provided.) -
