Description

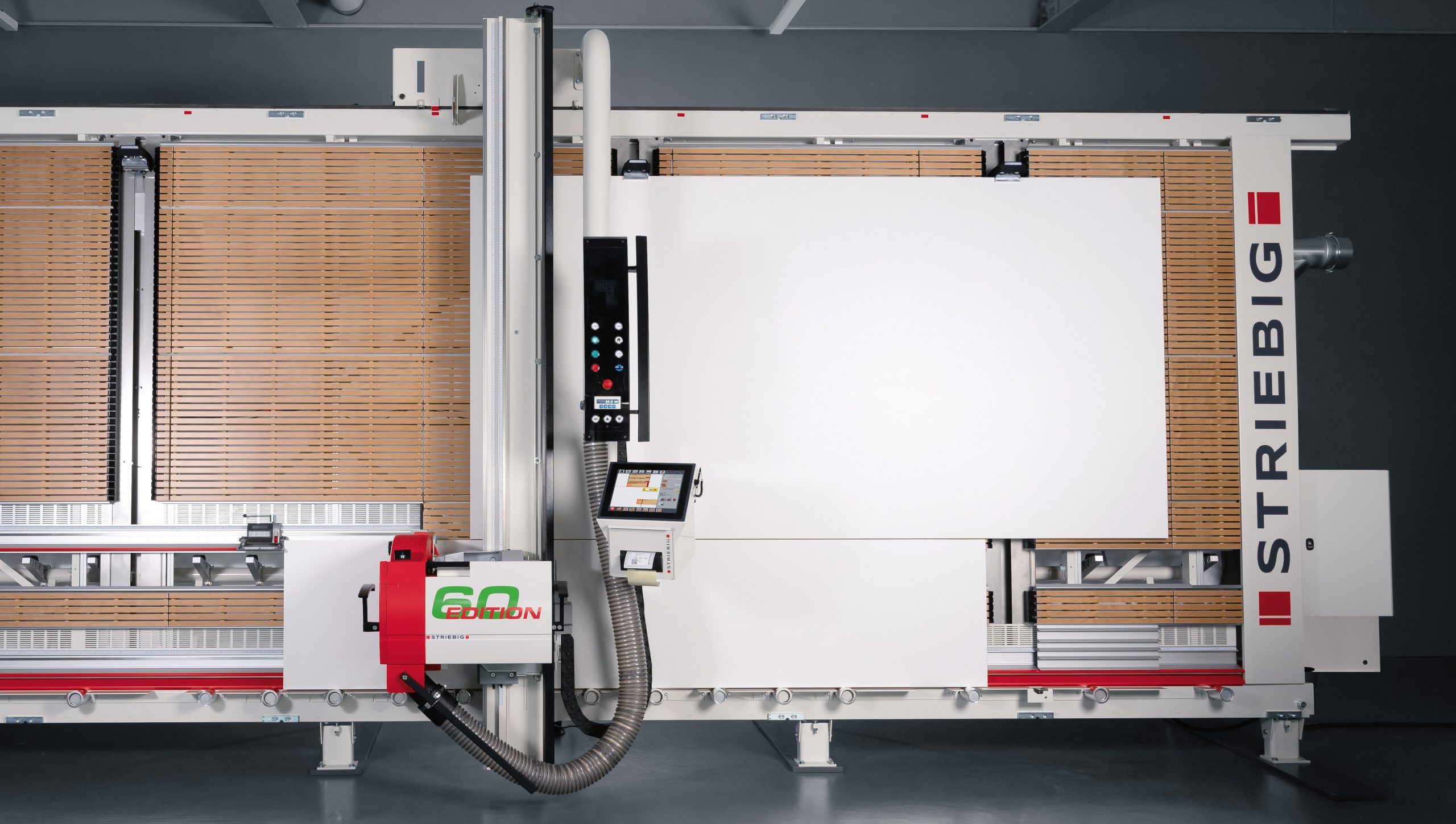

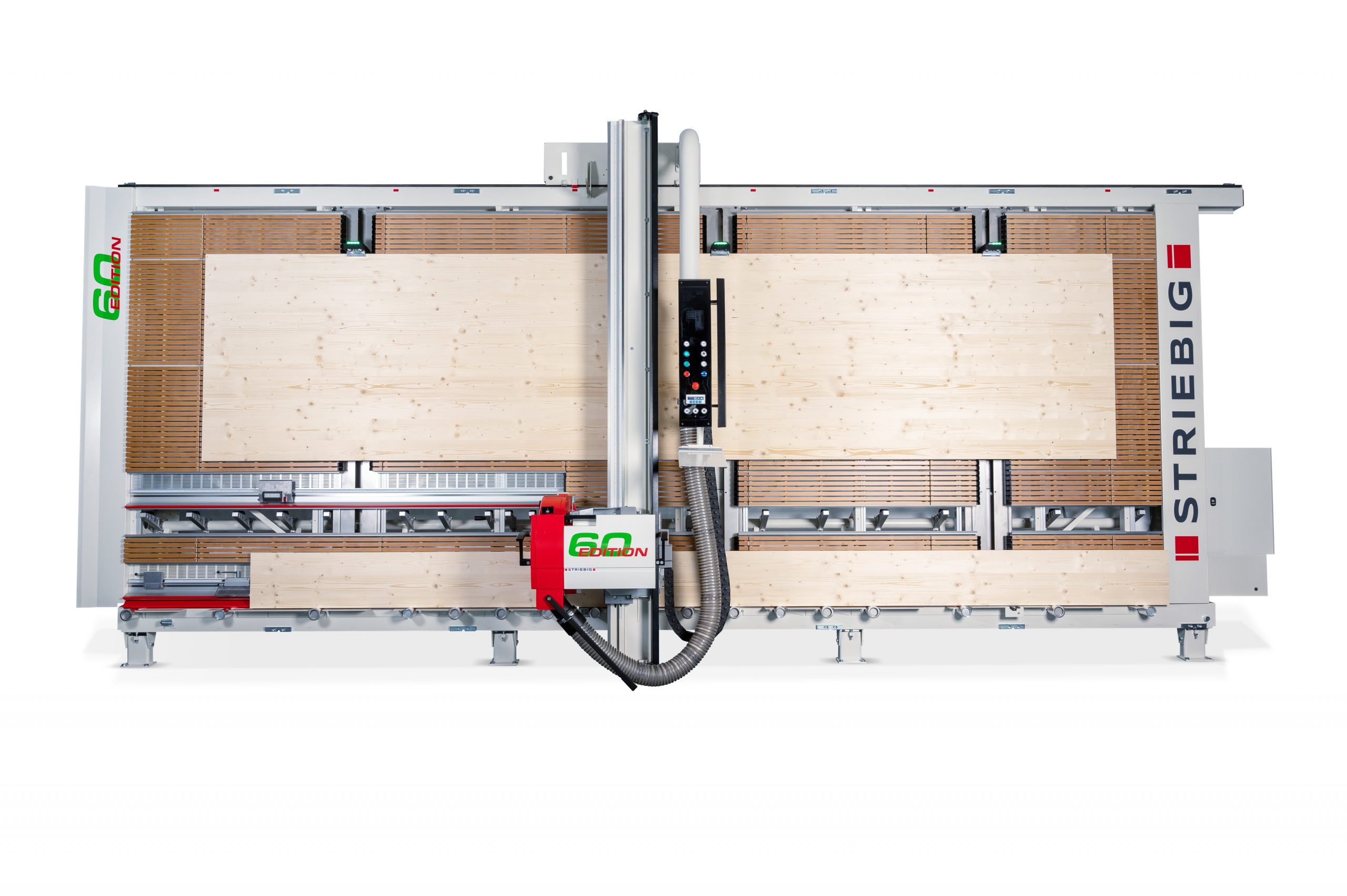

The NEW Edition 60 panel saw is a full-size, fully-loaded Standard S machine PLUS panel lifters (lowering units) that allow for easy one-person panel processing. Though the saw travel is manual, there is little or no need to remove or reload parts of a sheet in order to cut them to finish size. You process the sheet from the bottom. Trim cut the bottom of the sheet, cut a strip, then process that strip into finish cut parts while the rest of the sheet suspended by the lifters. After that strip is finished, cut the next strip and so on…
• Swiss made quality for accuracy and durability!
• 17’ 4”L, 7’-5/8”H crosscut, 6’ 10-5/8”H trim; Depth 3-1/8” (80 mm) overall; 2-3/8” (60mm) using panel lifters
• Very stable, all welded steel frame suitable for free-standing or wall-mount installation
• Heavy-duty panel support rollers with automatic locking system
• Two panel lifters on right side of saw to suspend multiple panels up to 7’ x 10’ x 60mm (2-3/8”) thick and up to 350 lbs.; allows strips to be cut and processed from bottom of panel with no need to flip panel! Two-handed control assures safety in use. Third lifter available (see below).
• Push-button pneumatic carriage clamp to lock sawhead for horizontal cut
• Laser cut line indicator for horizontal cuts

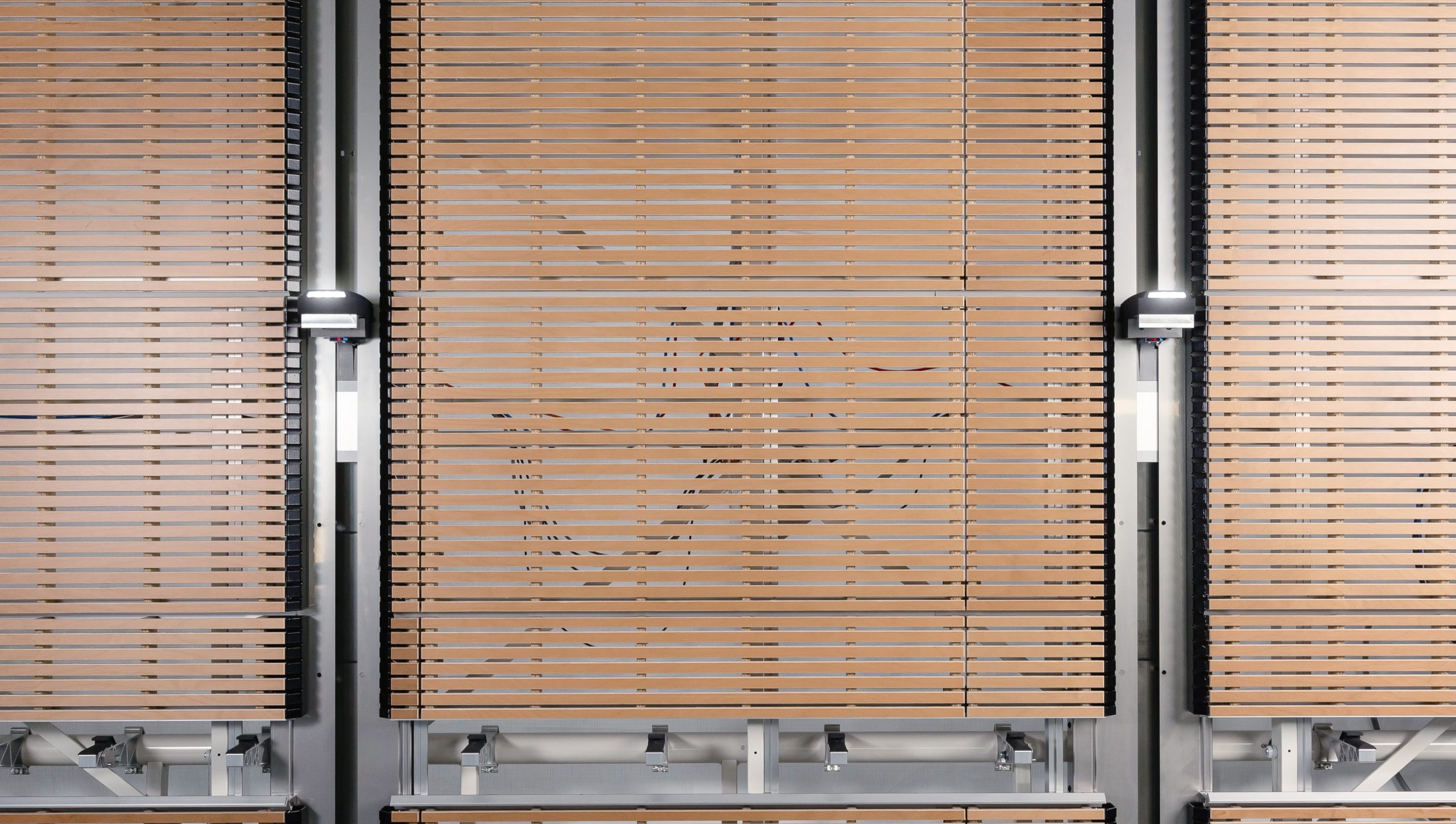

• Convenient, sturdy, center shelf with aluminum fingers, topped with reinforced plastic
• Snap-in small parts supports included (one pair)

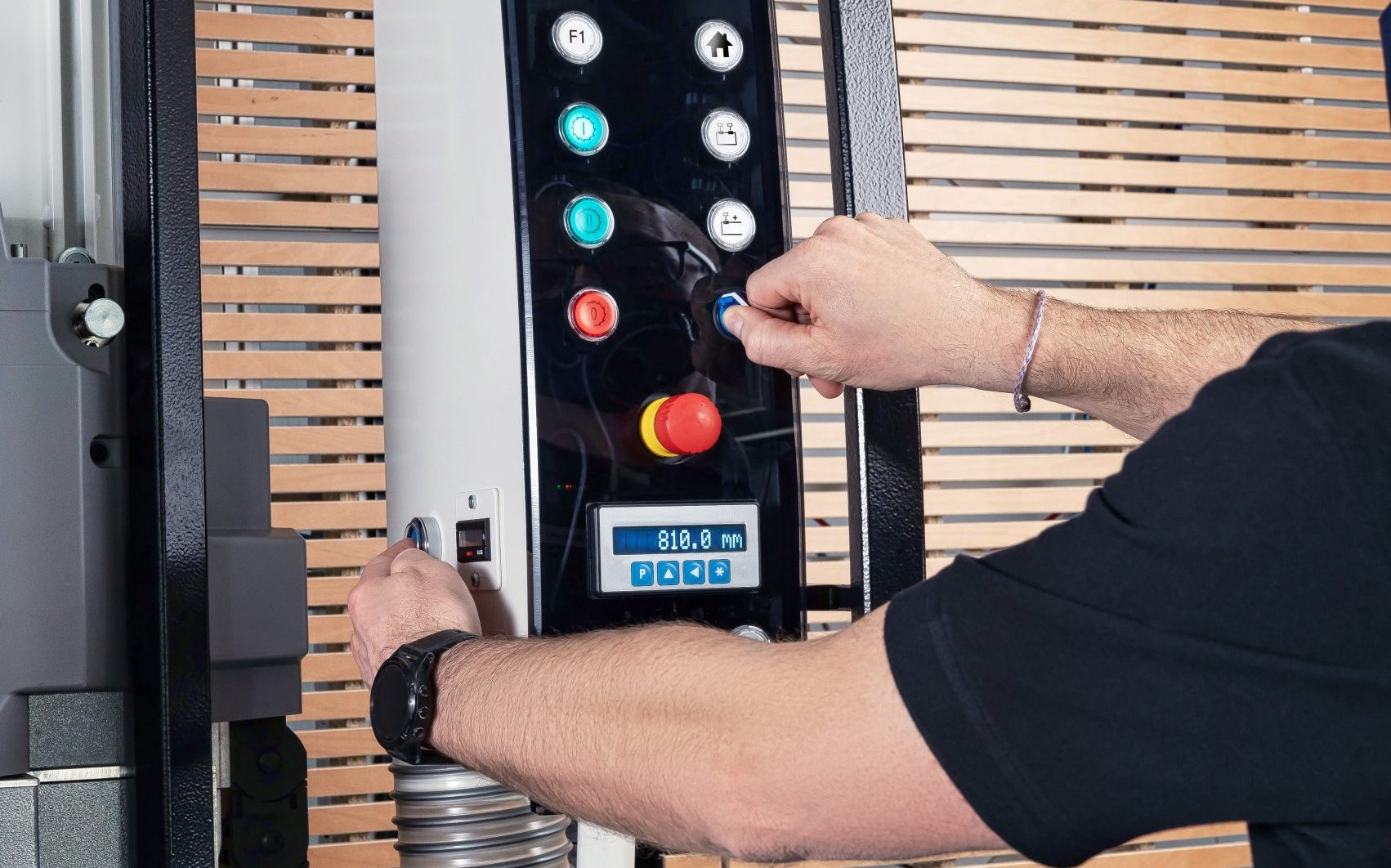

• DMS-Y digital measuring system for horizontal cuts with motorized fine adjustment
• DMS-X digital measuring system for vertical cuts with fine adjustment and five station reference; either above the center shelf (typical)or on full-length measuring channel described below
• Main measuring channel with inches/metric scales and measuring stop
• Second measuring channel for repeat dimensions with one auxiliary stop
• Vertical cutting stations 40 inches on center (1meter optional)
• High efficiency dust system has added rear collection area with full-length bottom dust collection pipe
• 7-1/2 hp, 220/440V, 3-phase motor with electric brake and insulation to 77dB
• 300mm saw blade for 3-1/8” cut depth
• Template bar with six stops for setting typical horizontal cuts
• TRK dust collection system with cable chain hose take-up keeps dust to less than half of the stringent European required minimum; note: requires connection to a collector
• Operating time counter
• Document holder conveniently located under control panel for cut lists, etc. -
Specs
Cut capacities: 17’ 4”L, 7’-5/8”H crosscut, 6’ 10-5/8”H trim; Depth 3-1/8” (80 mm) overall; 2-3/8” (60mm) using panel lifters
Weight (approx.): 1650 lbs. (net), 2200 lbs. (gross)
Main Saw Blade: 300 mm dia., 30 mm bore
Electrical: 3 phase, 220V or 440V
Dust collection: 1000 cfm, 140 mm connection; choice of side
Floor Space: 17’ 10”L, 8’ 3”H, 5’D (free standing) (4’ 5” wall-mounted) -
