TA10 | Cantek | Table Saws

  • Description

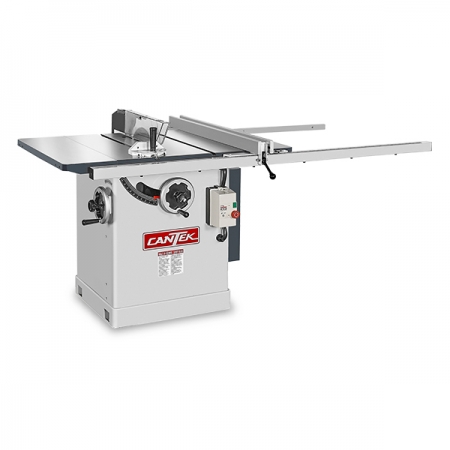

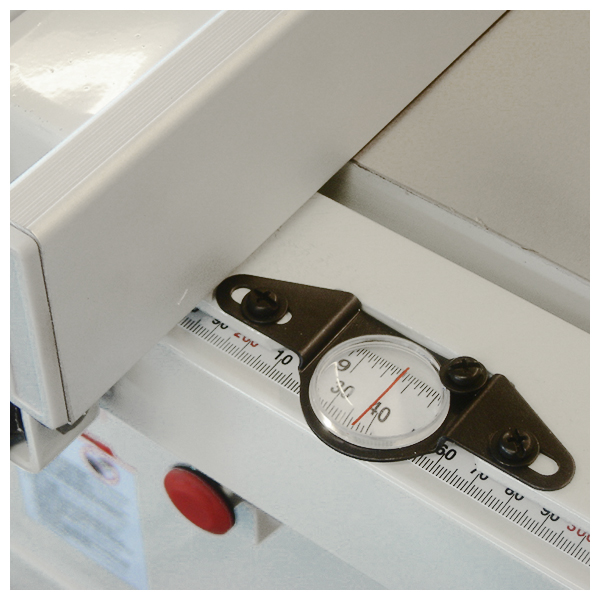

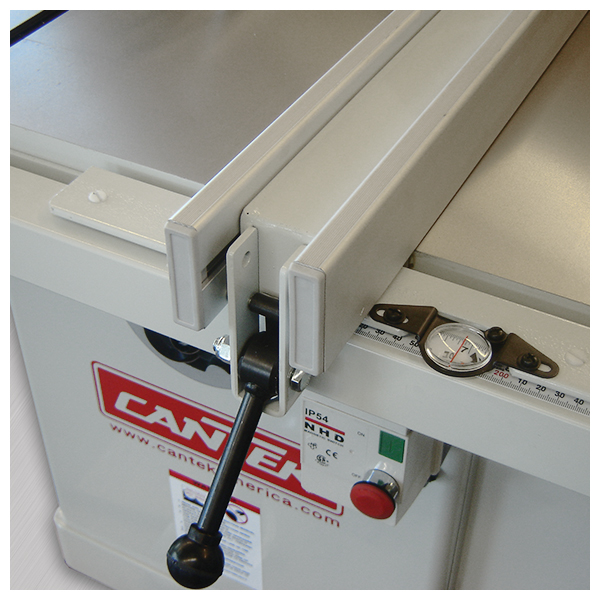

    10” 3HP tilting arbor table saw with t-square rip fence. The Cantek TA10 10″ Table Saw is for serious woodworkers and production shops that require an industrial strength and powerful table saw. The large precision-ground & polished cast-iron table and cast-iron saw unit ensure vibration free cutting with optimum cut quality. The quick setting T-square rip fence is equipped with dual inch & metric scales for precise rip cutting. The blade guard is mounted to a splitter with anti-kickback pawls for safe operation. Comes standard with both standard and dado arbors and table inserts. Driven by a powerful 3HP motor it can make the cuts you need effortlessly.
    Key Advantages
    Rugged machine frame construction provides maximum stability and reduced vibration

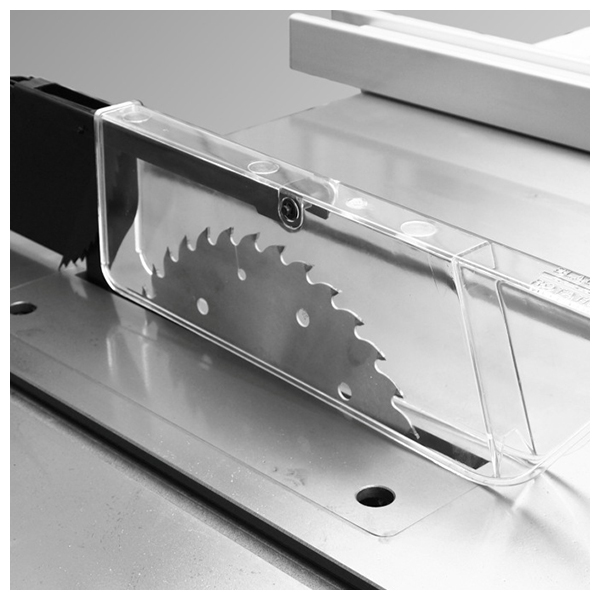

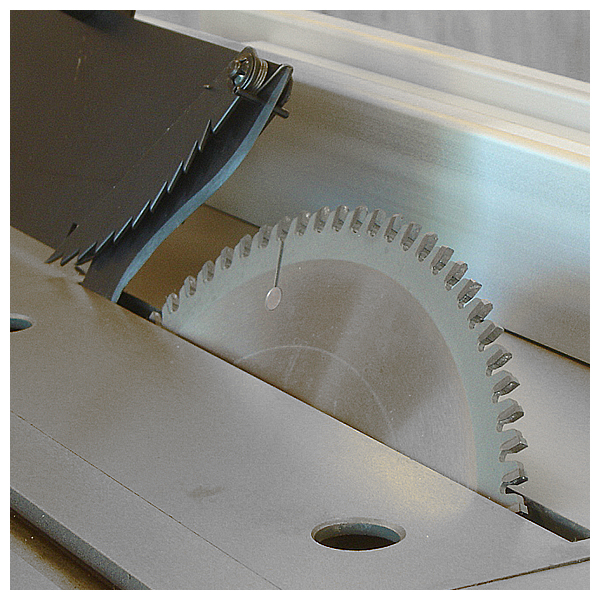

    Saw guard with built in splitter and safety anti-kickback unit

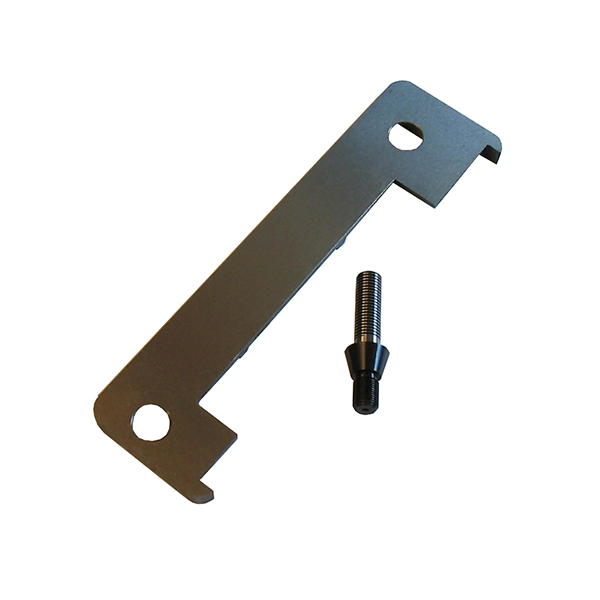

    5/8” standard and dado arbor included along with appropriate cast iron table inserts

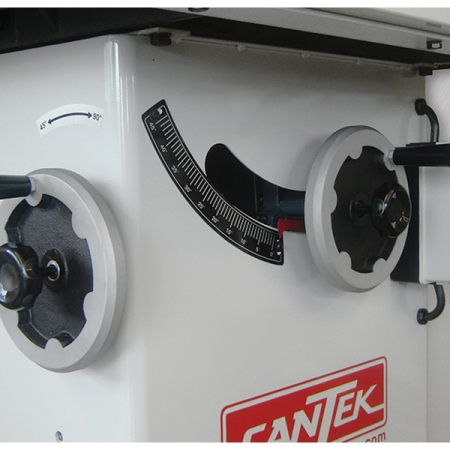

    Handwheel adjustment for blade height and tilting adjustments which can be locked in place

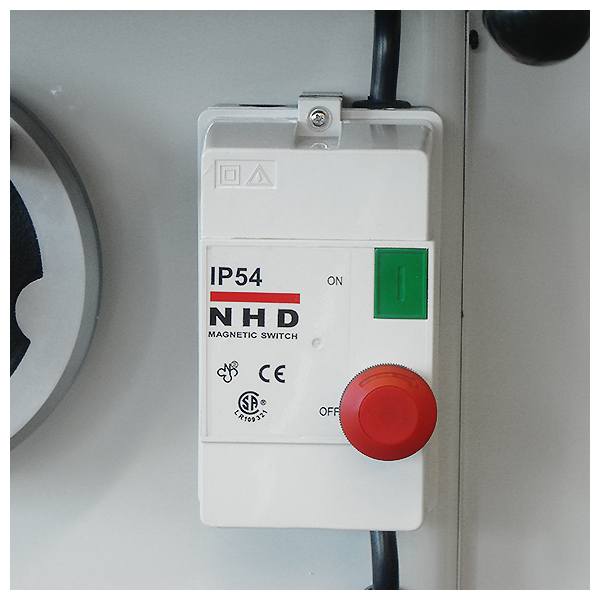

    CSA / UL approved magnetic switch

  • Specs

    Saw Blade Diameter
    10″
    Max. depth of cut at 90°
    3″
    Max. depth of cut at 45°
    2″
    Arbor diameter
    5/8″
    Dado arbor diameter
    5/8”
    Arbor speed
    4200 RPM
    Table size
    36″x27″
    Table height
    34 1/4″
    Max. rip to right of blade
    50″
    Motor
    3HP
    Electrical
    230/1/60 = 17 Full Load Amps
    Net weight
    407 lbs
    Gross weight
    497 lbs
    Packing size (LxWxH)
    29″x36″x42″
