TA12 | Cantek | Table Saws
-
Description

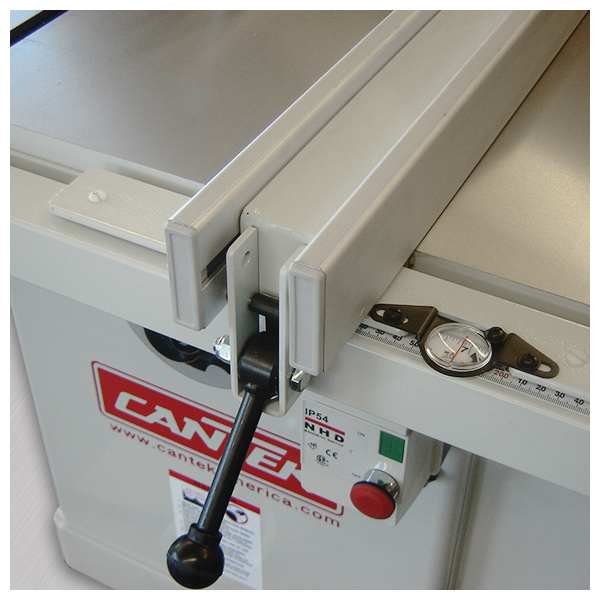

12” 5HP tilting arbor table saw with t-square rip fence. The Cantek TA12 12″ Table Saw is for serious woodworkers and production shops that require an industrial strength and powerful table saw. The large precision-ground & polished cast-iron table and cast-iron saw unit ensure vibration free cutting with optimum cut quality. The quick setting T-square rip fence is equipped with dual inch & metric scales for precise rip cutting. The blade guard is mounted to a splitter with anti-kickback pawls for safe operation. Comes standard with both standard and dado arbors and table inserts. Driven by a powerful 5HP motor it can make the cuts you need effortlessly.
Key Advantages
Rugged machine frame construction provides maximum stability and reduced vibration

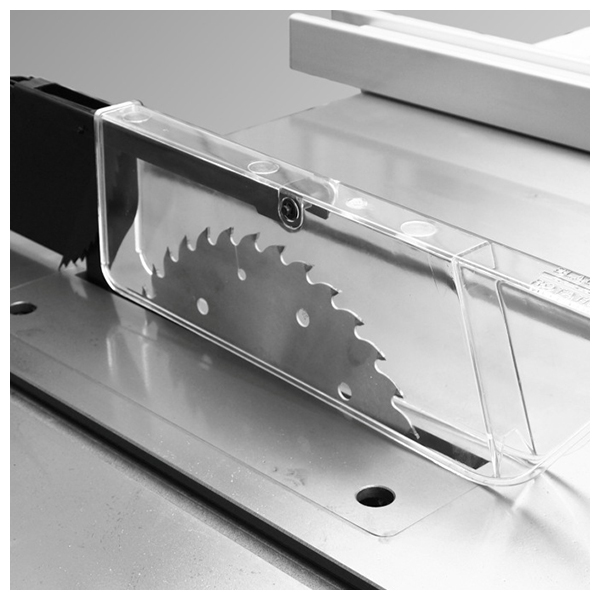

Saw guard with built in splitter and safety anti-kickback unit

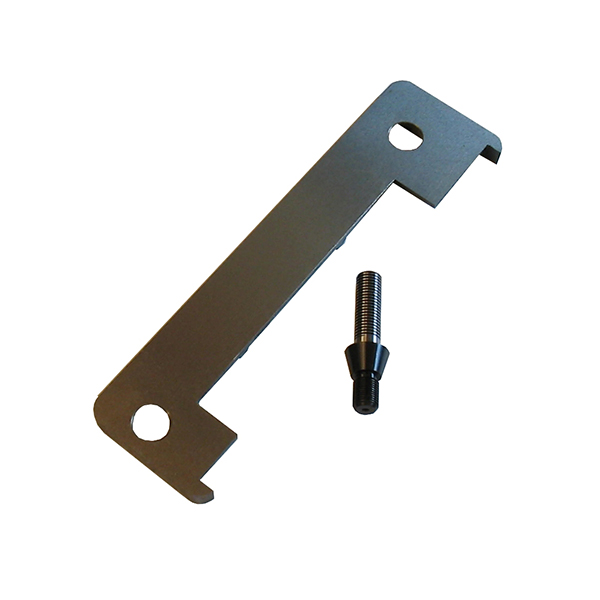

1” standard and 5/8” dado arbor included along with appropriate cast iron table inserts

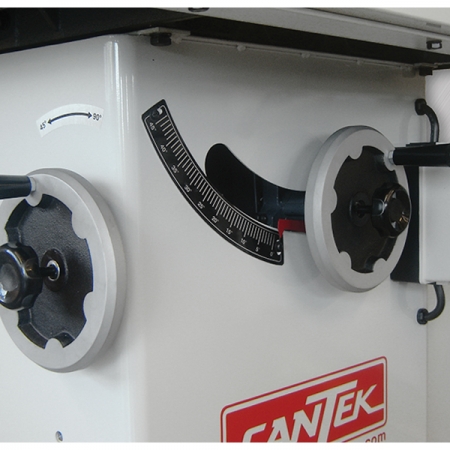

Handwheel adjustment for blade height and tilting adjustments which can be locked in place

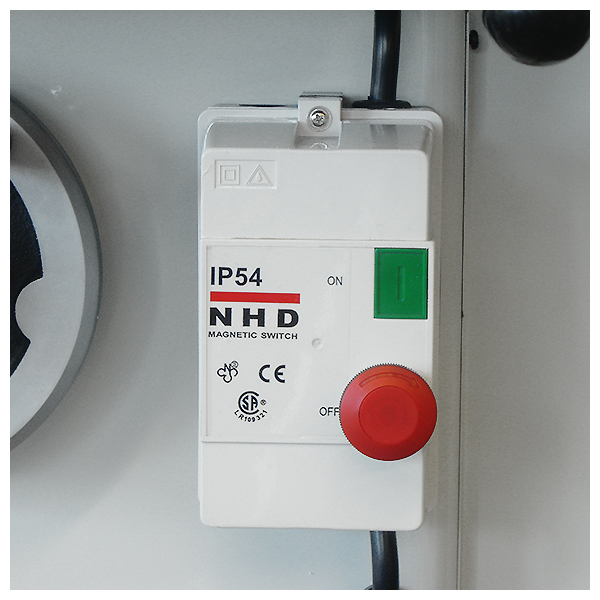

CSA / UL approved magnetic switch -
Specs
Saw Blade Diameter
12″
Max. depth of cut at 90°
4″
Max. depth of cut at 45°
2 ¾”
Arbor diameter
1″
Dado arbor diameter
5/8”
Arbor speed
4000 RPM
Table size
48″x30″
Table height
34 ¼”
Max. rip to right of blade
50″
Motor
5HP
Electrical
230/3/60 = 15.2 Full Load Amps
230/1/60 = 28 Full Load Amps
Net weight
572 lbs
Gross weight
704 lbs
Packing size (LxWxH)
32″x36″x42″ -
