TA1214 | Cantek | Table Saws
-
Description

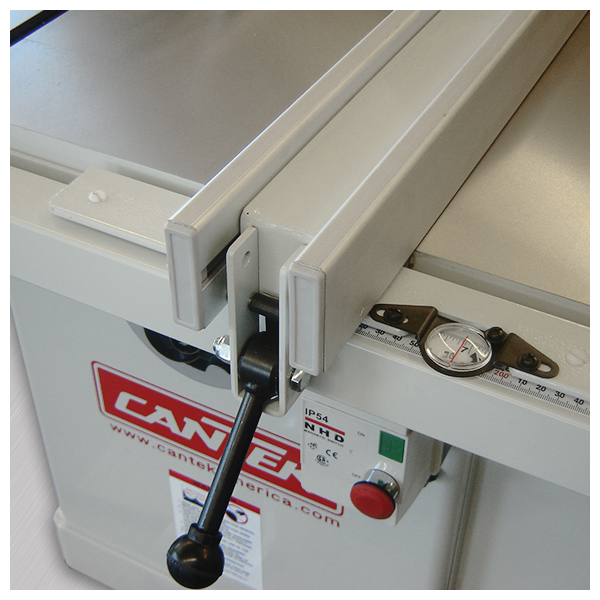

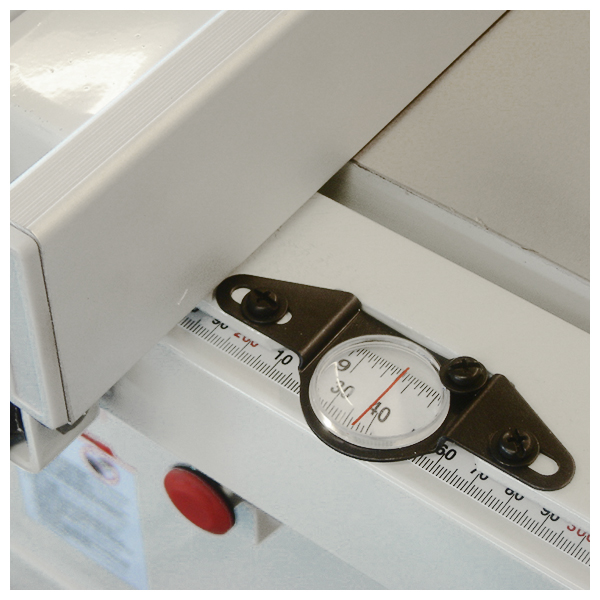

14” 10HP tilting arbor table saw with t-square rip fence. The Cantek TA1214 14” Table Saw is for serious woodworkers and production shops that require an industrial strength and powerful table saw. The large precision-ground & polished cast-iron table and cast-iron saw unit ensure vibration free cutting with optimum cut quality. The quick setting T-square rip fence is equipped with dual inch & metric scales for precise rip cutting. The blade guard is mounted to a splitter with anti-kickback pawls for safe operation. Comes standard with both standard and dado arbors and table inserts. Driven by a powerful 10 HP motor it can make the cuts you need effortlessly.
Key Advantages
Rugged machine frame construction provides maximum stability and reduced vibration

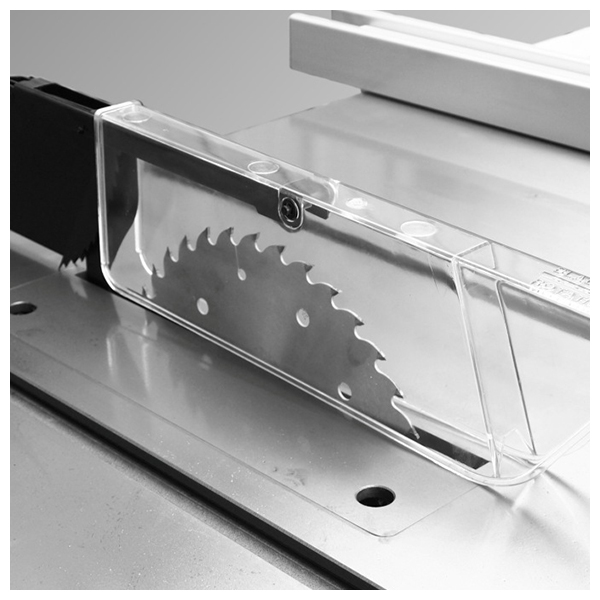

Saw guard with built in splitter and safety anti-kickback unit

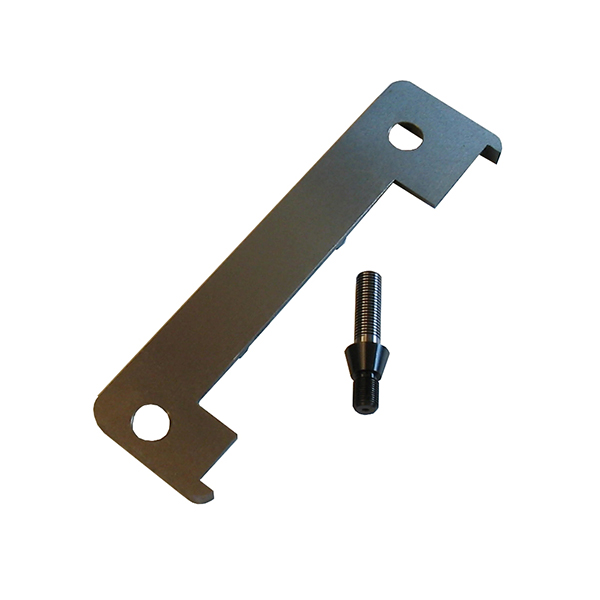

1” standard and 1” dado arbor included along with appropriate cast iron table inserts

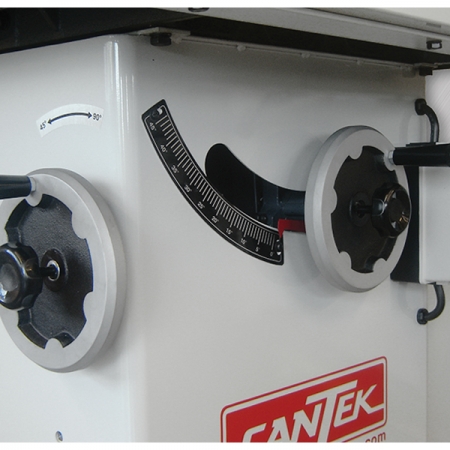

Handwheel adjustment for blade height and tilting adjustments which can be locked in place

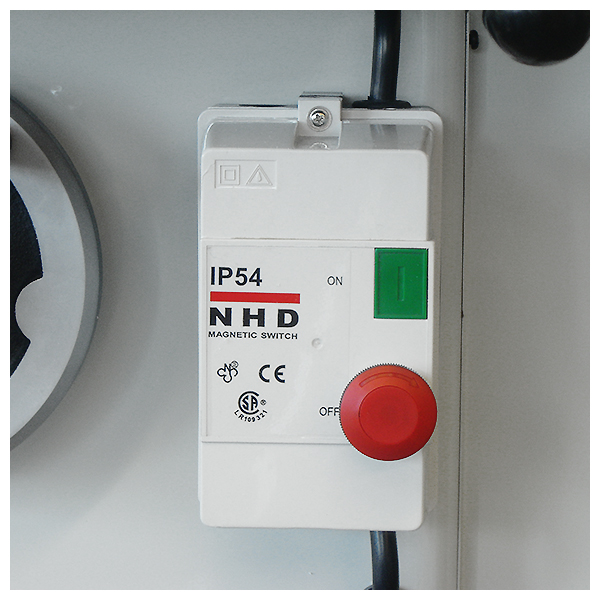

CSA / UL approved magnetic switch -
Specs
Saw Blade Diameter
14″
Max. depth of cut at 90°
5″
Max. depth of cut at 45°
3 ½”
Arbor diameter
1″
Dado arbor diameter
1”
Arbor speed
3750 RPM
Table size
48″x38″
Table height
34 ¼”
Max. rip to right of blade
50″
Motor
10 HP
Electrical
230/3/60 = 28 Full Load Amps
Electrical
460/3/60 = 14 Full Load Amps
Net weight
847 lbs
Gross weight
1012 lbs
Packing size (LxWxH)
37″x44″x42″ -
