Description

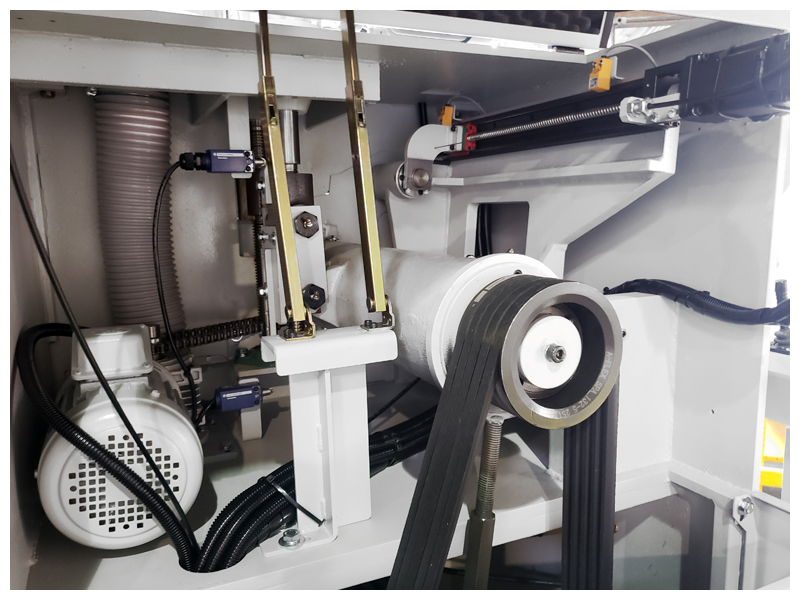

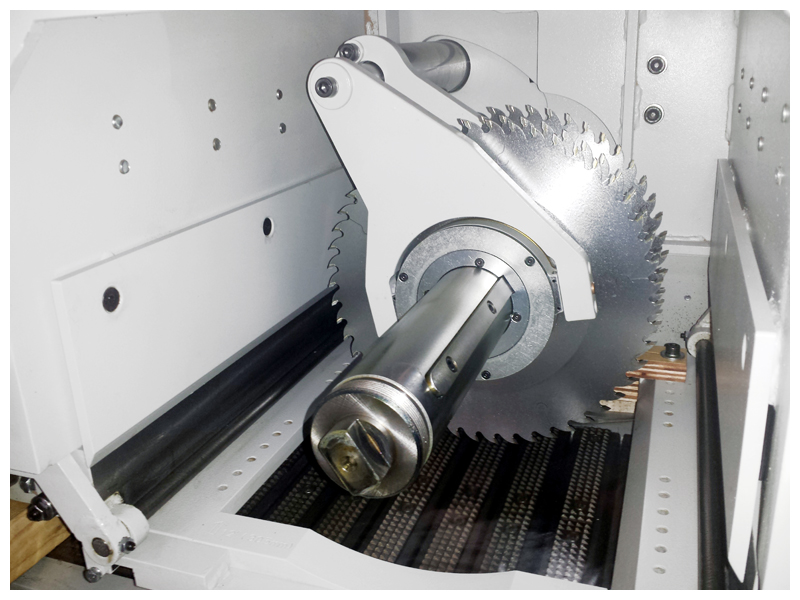

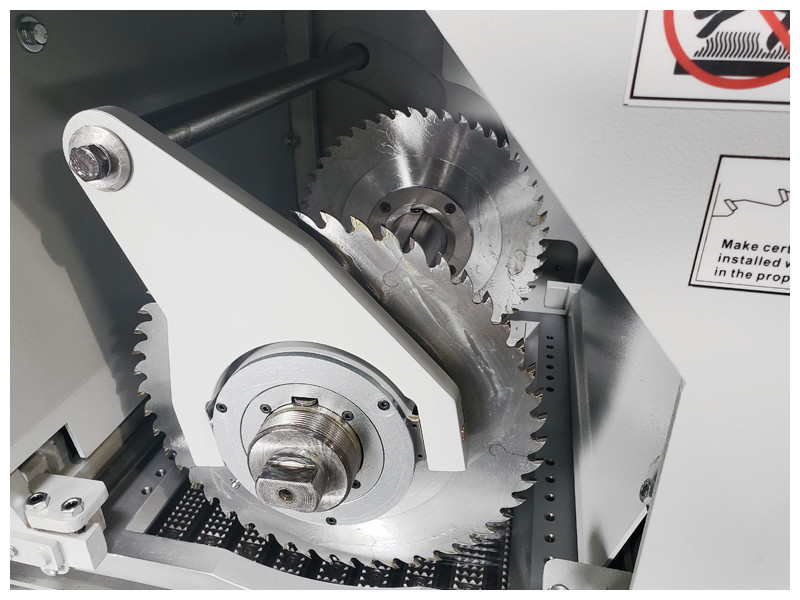

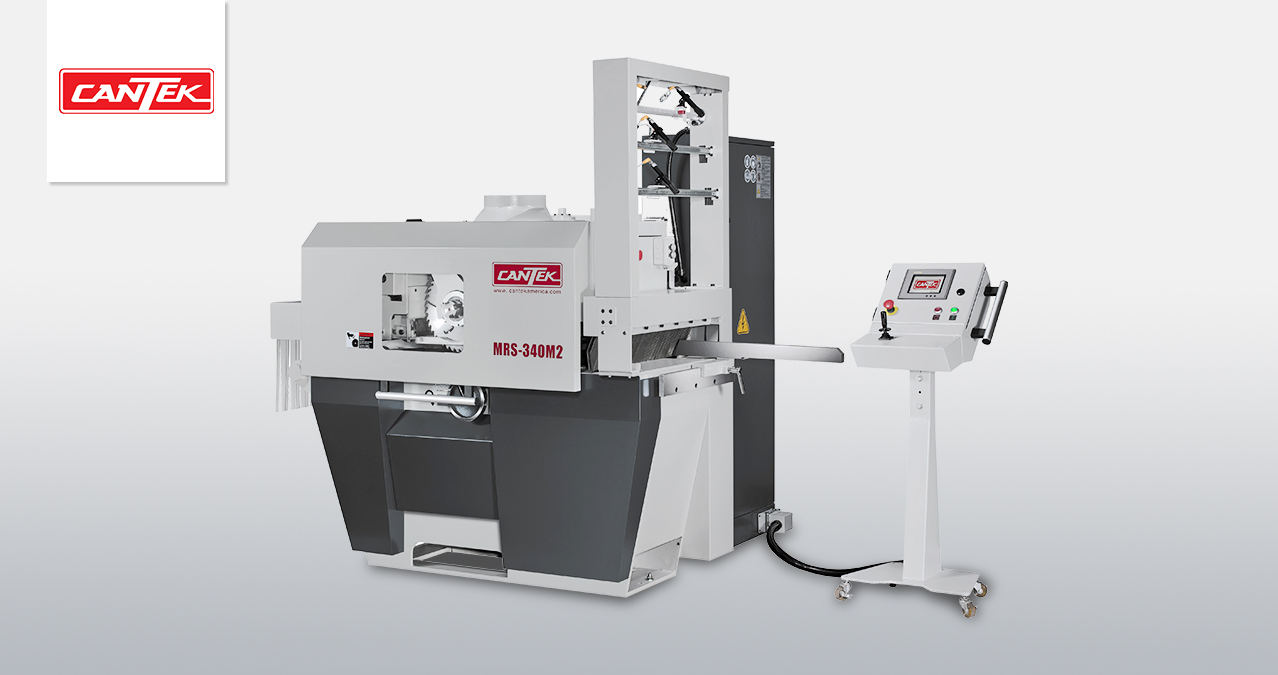

The Cantek MRS340M 1 or 2 Moving Blade Multi-Ripsaw is available with 1 or 2 moving saw blades. The motorized moving blade system is designed to provide you with maximum flexibility in your ripping operations to achieve the maximum yield from your material. The touch screen control allows the operator to pre-set the blades position(s) or jog the blades to achieve the desired ripping result. Each moving blade is controlled by a servo motor and is adjusted using a ball screw and linear guideway for the highest accuracy. The blade position is indicated with a laser projection line so the operator can visualize the cutting line to increase efficiencies. If you are looking to increase material yield and add flexibility to your ripping operations the MRS340M series is the ideal choice.
-
Specs
Max. cutting thickness|2.95″ (75mm) with 12”x3.4mm standard blade|3.93″ (100mm) with 14″x3.4mm optional blade
Max. cutting width|13.4″ (340mm)
Max. material width|20.67″ (525mm)
Min. material length|21.7″ (550mm)
Max. sawblade diameter|14″ (355mm)
Min. sawblade diameter|12″ (305mm)
Sawblade bore|Ø90 mm
Saw arbor diameter|Ø70 mm (2.8″)
Saw arbor speed|4500 RPM with 12” standard blade|3800 RPM with 14” optional blade
Thickness adjustment motor|0.5 HP
Saw arbor motor|50 HP – Standard (60 or 75HP optional)
Feed motor|3 HP
Variable feed speed|16~131 FPM (5-40 M/min)
Dust hood dia.|(1) 8″ x (1) 4″
Table height from floor (H)|33.46” (850mm)
Table area (L x W)|60″ x 23.4″ (1525 x 595mm)
Compressed air requirement|80~90 PSI
Shipping dimensions|90” x 68” x 89”
Machine weight (NW/GW)|4840 lbs. / 5170 lbs. -
