P24HV | Cantek | Planers
-
Description

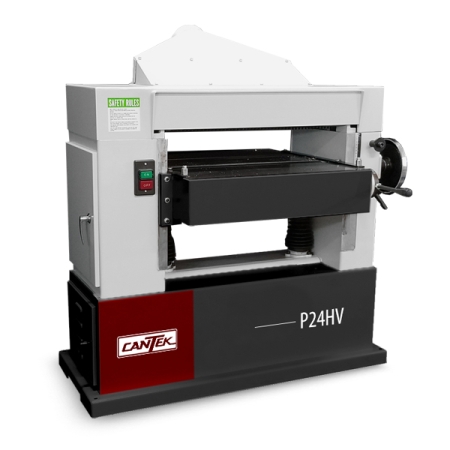

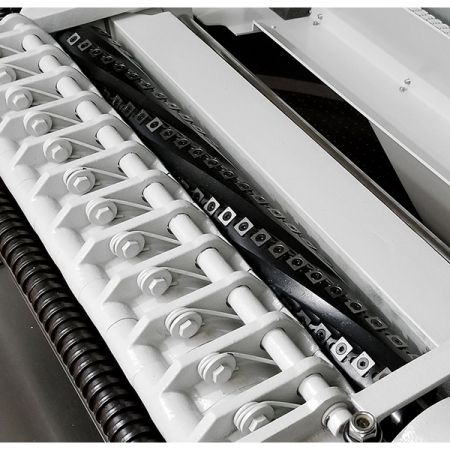

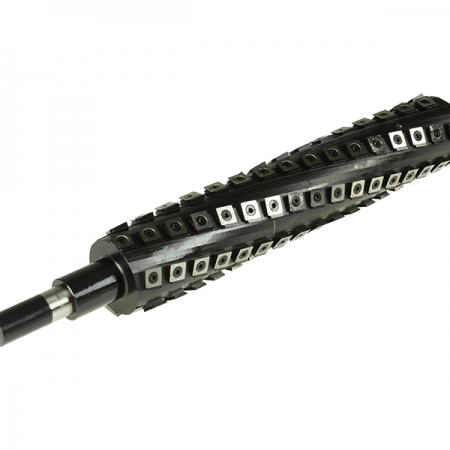

Light industrial 24” spiral insert knife cutterehead thickness planer for the serious craftsperson. The Cantek P24HV 24” Planer has a cast iron table and head assembly with robust welded steel frame results in superior planing finish due to greatly reduced vibration. The spiral insert knife cutterhead runs extremely quiet and the solid carbide inserts provide a smooth finish and have a long life. When one edge gets dull simply rotate the knife 90 degrees for a new cutting edge. Knives can be rotated four times before needing to be replaced.
Key Advantages
2-feed speeds

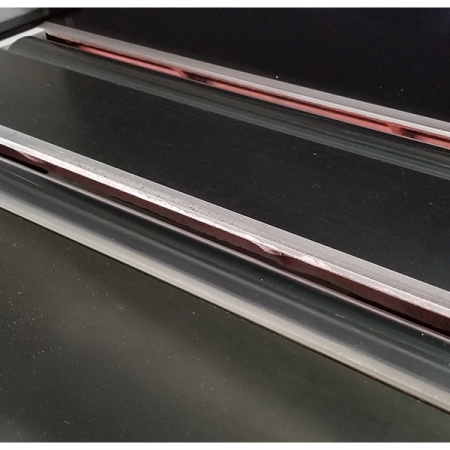

Double bed rolls which are conveniently adjusted from the front of the machine to assist with planing difficult to feed material

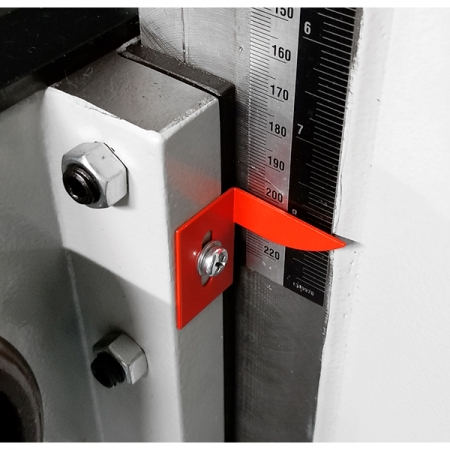

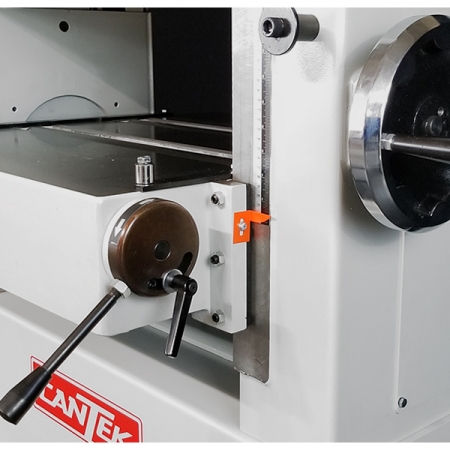

Side handwheel with linear scale for table adjustment
Polyurethane outfeed roll which will not mark your material after it has been planed
Flip open top lid with limit switch for safe & convenient changing of the insert knives -
Specs
Maximum planing width
24″
Maximum planing thickness
8″
Feed speeds (2)
20 & 30 FPM
Main motor
7.5 HP
Cutterhead diameter
3-3-16″
Min. length
8″
Table rise & fall
Manual

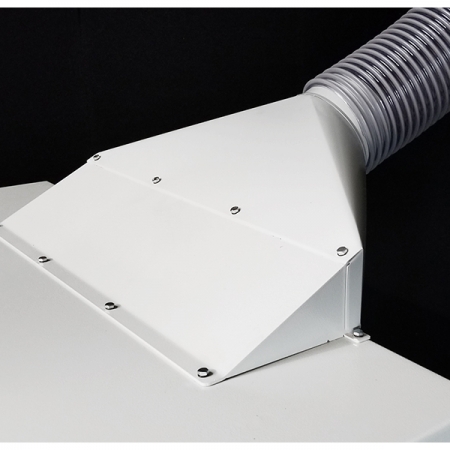

Dust port
(1) 6″
Net weight
950 lbs.
Shipping weight
1150 lbs.
Machine dimensions (LxWxH)
48” x 36” x 50”
Shipping dimensions
49” x 31” x 45”
Machine electrics
230/3/60 = 22 amps
575/3/60 = 9 amps -
