CBS5 | Cantek | Dust Collectors

  • Power:
    230V 3PH
  • Description

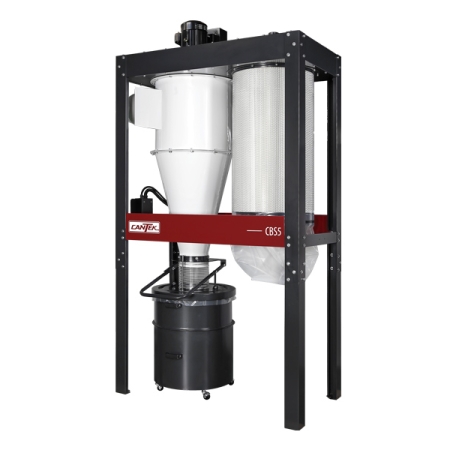

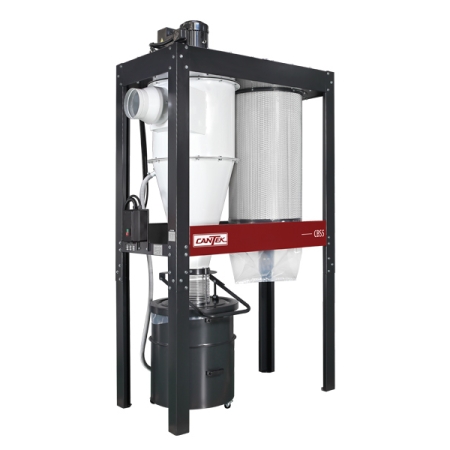

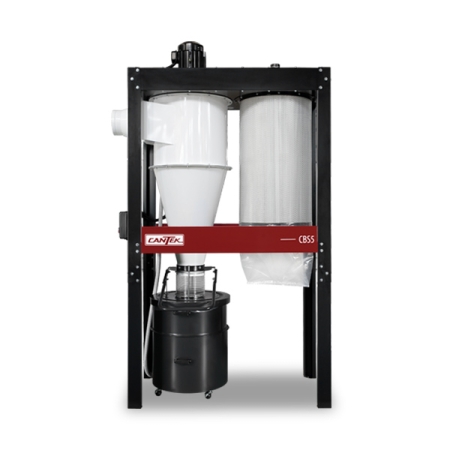

    It is time to clear the air and upgrade your dust system to the next level! The Cantek CBS5 5HP Cyclone Dust Collector excels at efficiently removing both coarse and fine wood dust particles from your machinery. As dust is drawn into the system by a high-efficiency fan, it enters a cylindrical chamber where it circulates in a cyclonic pattern. Heavier coarse chips settle into a collection bin below, while fine dust proceeds through a HEPA filter. This meticulous filtration process ensures that only clean air is reintroduced into your workspace, promoting a healthier, dust-free environment for optimal productivity and breathable air.
    Key Advantages

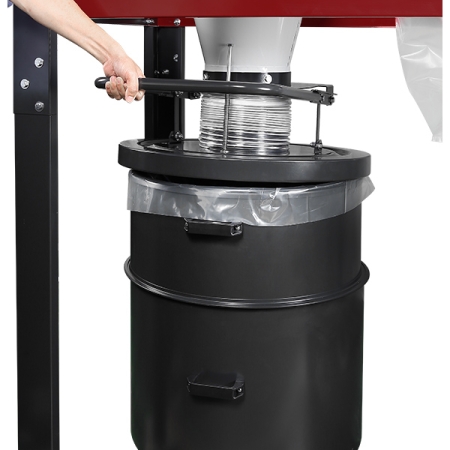

    Convenient quick release connection for removing the coarse dust bin which is outfitted with casters
    Bin is lined with plastic bag for simple and clean removal of dust
    HEPA filter is equipped with an automatic
    HEPA Filter is equipped with a quick release system to remove and dispose of fine dust particles

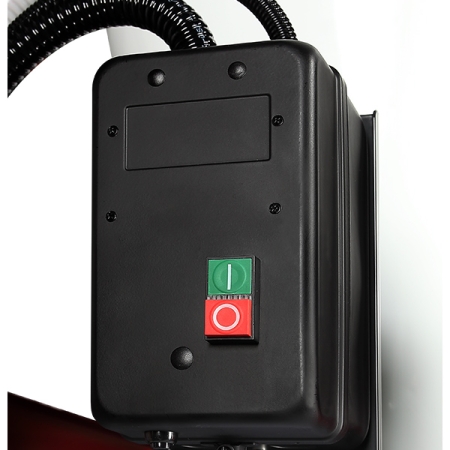

    Equipped with magnetic switch
    Fast and simple machine assembly

  • Specs

    Blower motor
    5 HP
    CFM Capacity
    2450 CFM
    Fan diameter
    16”
    Dust port dimensions
    Main Inlet = 10”
    Reducer = 8”
    Auto-cleaning motor
    0.03 HP
    HEPA filer size
    23.6” x 38.4”
    Dust drum capacity
    50 gallons
    Sound rating
    78~81 dB
    Machine electrics
    230/3/60 (16 amps)
    Machine dimensions
    65.4” x 31.5” x 112”
    Machine weight
    607 lbs
    Shipping dimensions
    64 ¼” x 36” x 81 ½”
    Shipping weight
    786 lbs
