CFS100 | Cantek | Optimizing Saws
-
Description

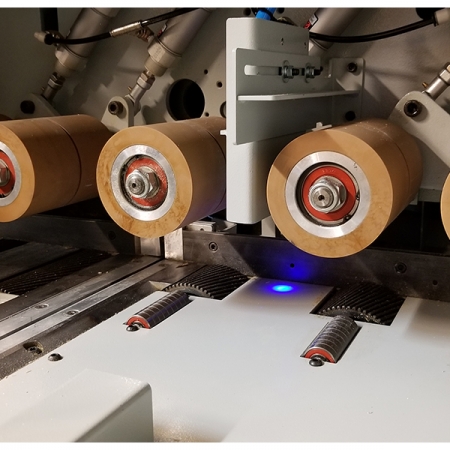

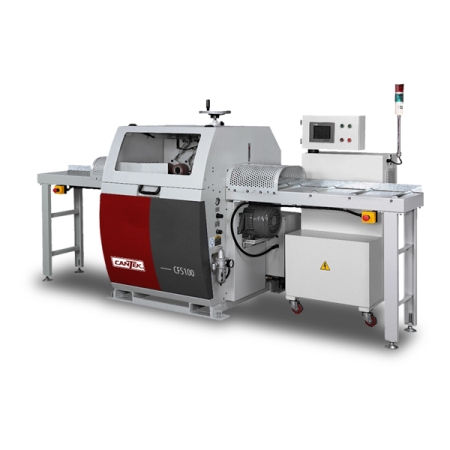

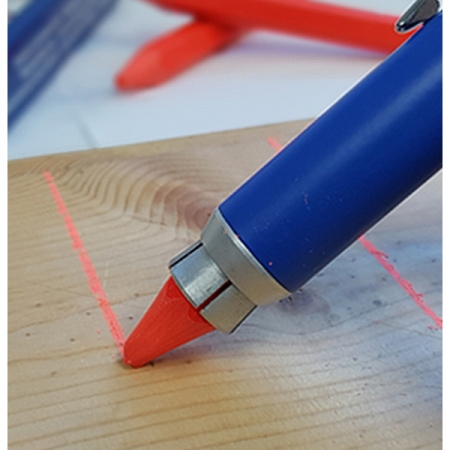

Semi-automatic finger joint system. The Cantek CFS100 Automatic Defect Cutoff Chop Saw is the perfect upgrade from your manual cutoff saw with 3 to 5 times higher production output. It is designed to scan for defects in your material which are indicated by a florescent crayon mark. The saw will cut on the crayon mark allowing for fast defect removal. Equipped with several cutting modes like fixed, sequential, defect cutting modes the operator can select the program most suited to their needs. The powerful 10HP motor and 18” blade provide for effortless cutting from 11.8” (w) x 2.75” (t) or 5.9” (w) x 3.9” (t). An optional feature is available for cutting thin material down to 0.078” (2mm) which is ideal for lamellas for engineered flooring.

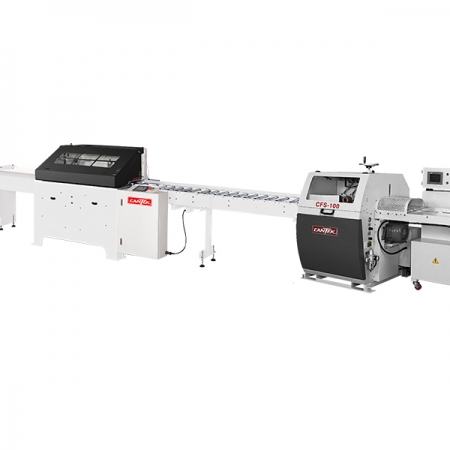

For flooring companies, the CFS100 can be combined in-line with our EM12 End Matcher for a highly efficient defecting & end matching solution.
Key Advantages

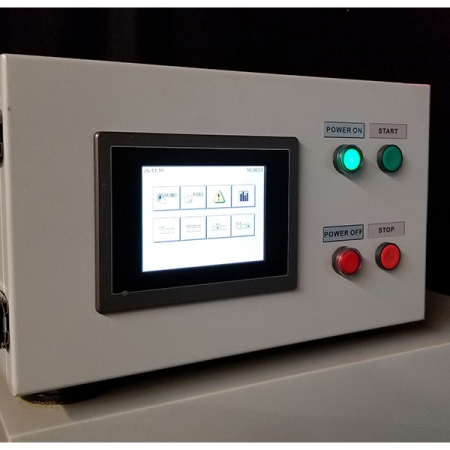

User friendly touch screen control with on board synoptics, cutting counter, and menu based cutting modes

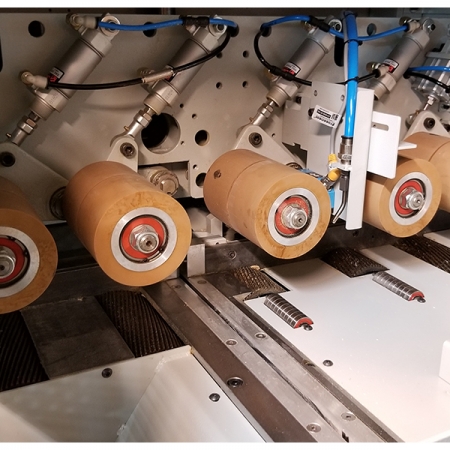

Servo driven feed motor for fast accurate motion and position control
Compact design requires less space than manual cutting setups
18” diameter blade provides a large cross cutting capacity
Powerful 10HP motor running at 3200PRM
Adjustable automatic trim of front and tail of the workpiece

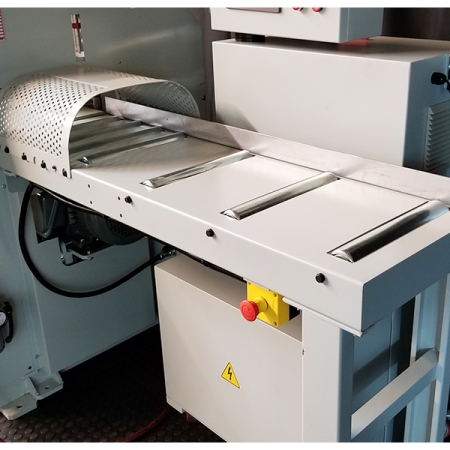

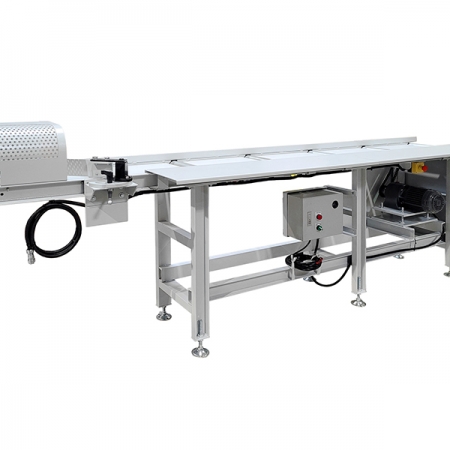

48″ (1.2 meter) long infeed table (Longer available on request)

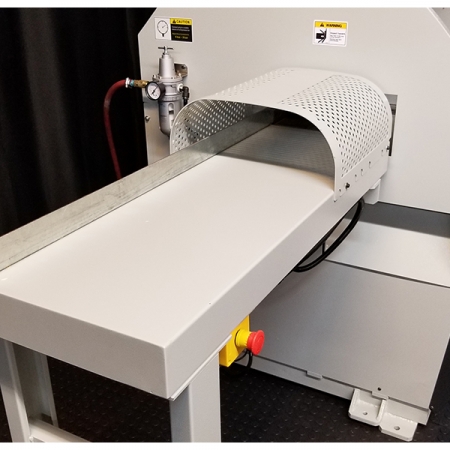

40″ (1 meter) long flat outfeed table

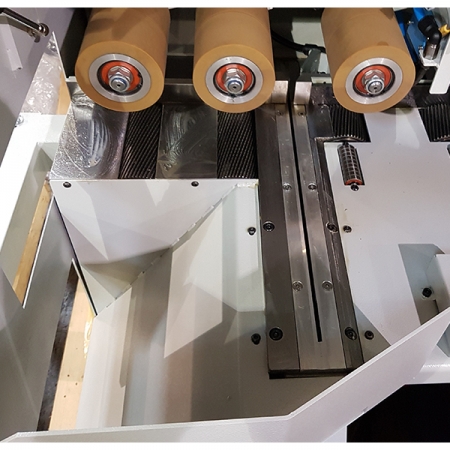

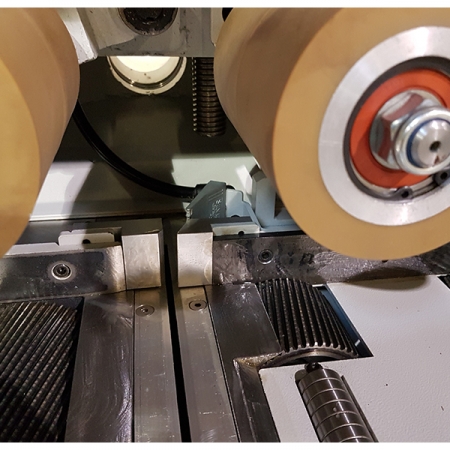

Defect blowing system combined with computerized logic control permits the blowing time and the length of defect to be set as desired -
Specs
Saw Motor
10HP
Saw Spindle Speed
3200 RPM
Feed Motor (Servo motor)
2.7HP (2Kw)
Max. feed speed
Variable to 262 ft/min (80 m/min)
Max. infeed weight
44 lbs (20 kgs)
Circular Saw Diameter
Ø 18” (455mm)
Saw spindle diameter
30mm
Minimum distance between marks
0.787” (20mm)
Cutting Size – maximum
See the diagram of cutting range
Air pressure: for machine
72~85 PSI (5~6 kg/cm2)
Air pressure: defect blowing system
7~9 kg/cm2 (99.5~128 PSI)
Dust ports
2 @ 4”
Electrics
460/3/60 = 14 Full Load amps (Stock Machine)
Electrics
230/3/60 = 28 Full Load amps (Factory order)
Electrics
575/3/60 = 11 Full Load amps (Factory order) -
